Overview
Designed as a cost effective low power speaker, great for use in smaller multi room zones where only low level music is desired.
The iQ Developer Series creates an opportunity for Invisible Loudspeakers to be incorporated into large developments where there is a restricted budget, such as within multi-dwelling units.
iQ Developer Series loudspeakers can also be used to supplement Mobius or Evolution speakers within a larger installation, providing a cost-effective solution for lesser rooms such as spare bedrooms or hallways.
Paired with a subwoofer, iQ speakers can be used for low to medium level, full-bandwidth music listening at a highly competitive price point. Rendered invisible behind a 2mm skim of plaster, iQ Developer Series speakers use the same OptiDriver and OptiDamping technology found on Mobius and Evolution Invisible Loudspeakers.

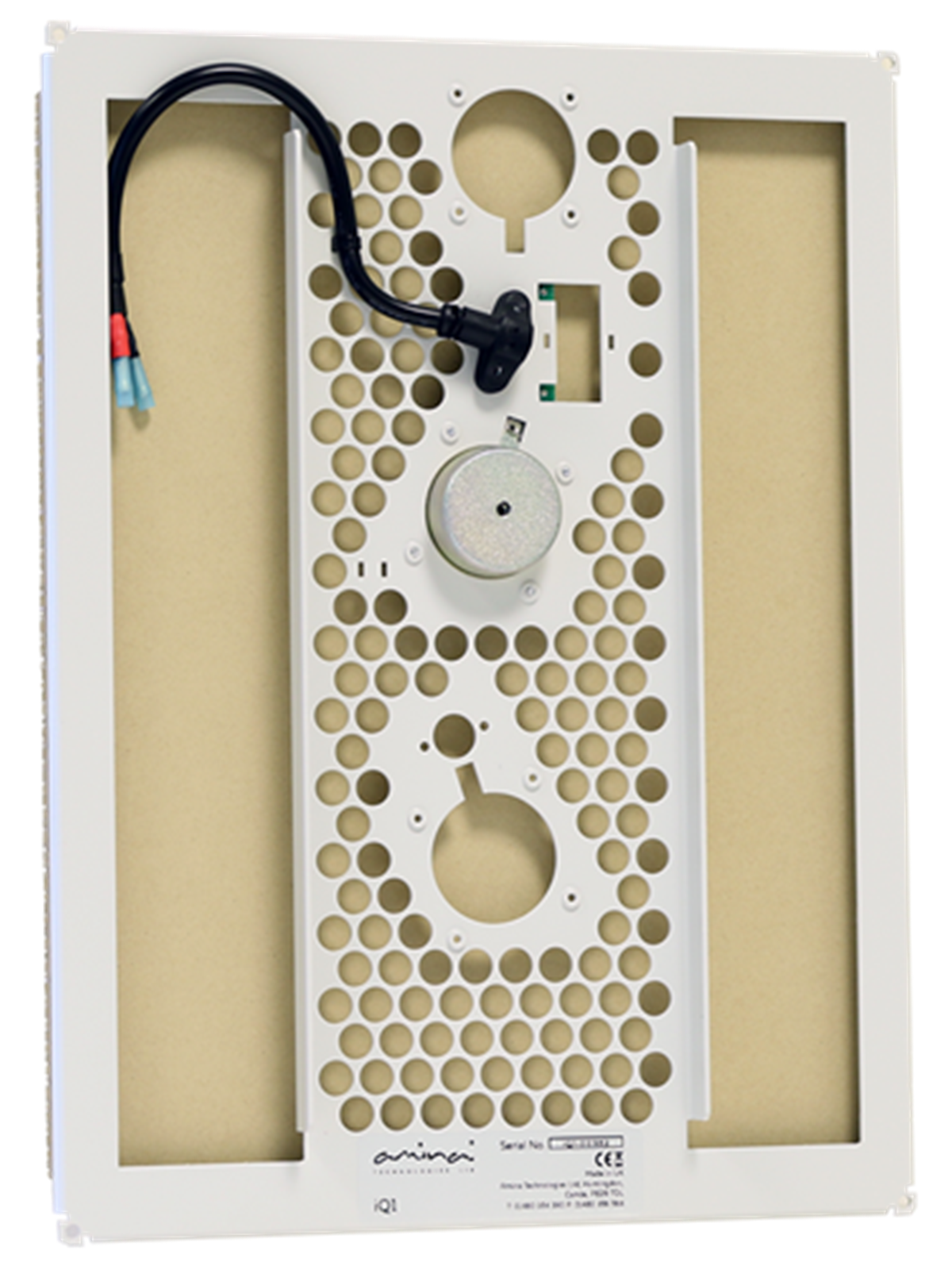

Amina iQ1 Plaster In-Wall Invisible Speaker as part of the iQ Developer Series creates the opportunity for invisible sound to be used in applications where it would be considered too expensive. For example, multi-dwelling units or minor rooms in private residences.
The invisible loudspeaker installation can be finished with many different materials such as plaster, leather, wood and many more. The iQ Series have a standard 8Ohms impedance, compatible with nearly all amplifiers and receivers on the market today. The 2 channel version is for stereo reproduction in small spaces from a single speaker.
Amina have applied their latest Opti-Drive and Opti-Damping techniques, in a slightly smaller form factor to the popular audiophile level Evolution Series of products, to create a highly articulate invisible sound source capable of filling large spaces with a very even distribution of audio energy at a cost performance position never before made possible.
Opti-Drive Technology: Optimally distributes the audio signal to the speaker’s vibrational excitation units to ensure exceptional high frequency articulation, on and off axis. The result: improved tonal balance and treble detail.
Opti-Damping Technology: Delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustic soundboard panel.
Features:
- Completely Invisible, high fidelity loudspeaker
- Easy to install into drywalls or ceilings
- Simply skim over with a finishing coat of plaster
- Suitable for low/medium powered audio systems
- Features new technologies providing smooth frequency response and enhanced clarity.
Technical Specification
|
Product
|
iQ1
|
|
Nominal Impedance
|
8 Ohms
|
|
Power Handling
|
15W/30W
|
|
Sensitivity
|
83dB
|
|
Frequency Response
|
112Hz - 20kHz
|
|
Electrical
Connection
|
Blue butt-splice crimp terminals (14-16
AWG)
|
|
Dimensions
|
400mm x 300mm x 40mm (153/4” x 114/5” x
13/5”)
|
|
Product Weight
|
0.83Kg (1.83lbs)
|
|
Fixing
Requirements
|
BackboxCV300 / BackboxSW300
|
|
In Line Protection
Unit
|
APUi10
|
|
Rack-Mount
Protection Unit
|
APURS8i or APURS16i
|
Warranty:
- 1 Year (if Self-Installed)
- 10 Years (if installed by SMH with In-Line or Rack-Mounted Protection Unit_
How to Video for Plaster installation
How to Video for Wood/Laminate Adhesion
