Overview

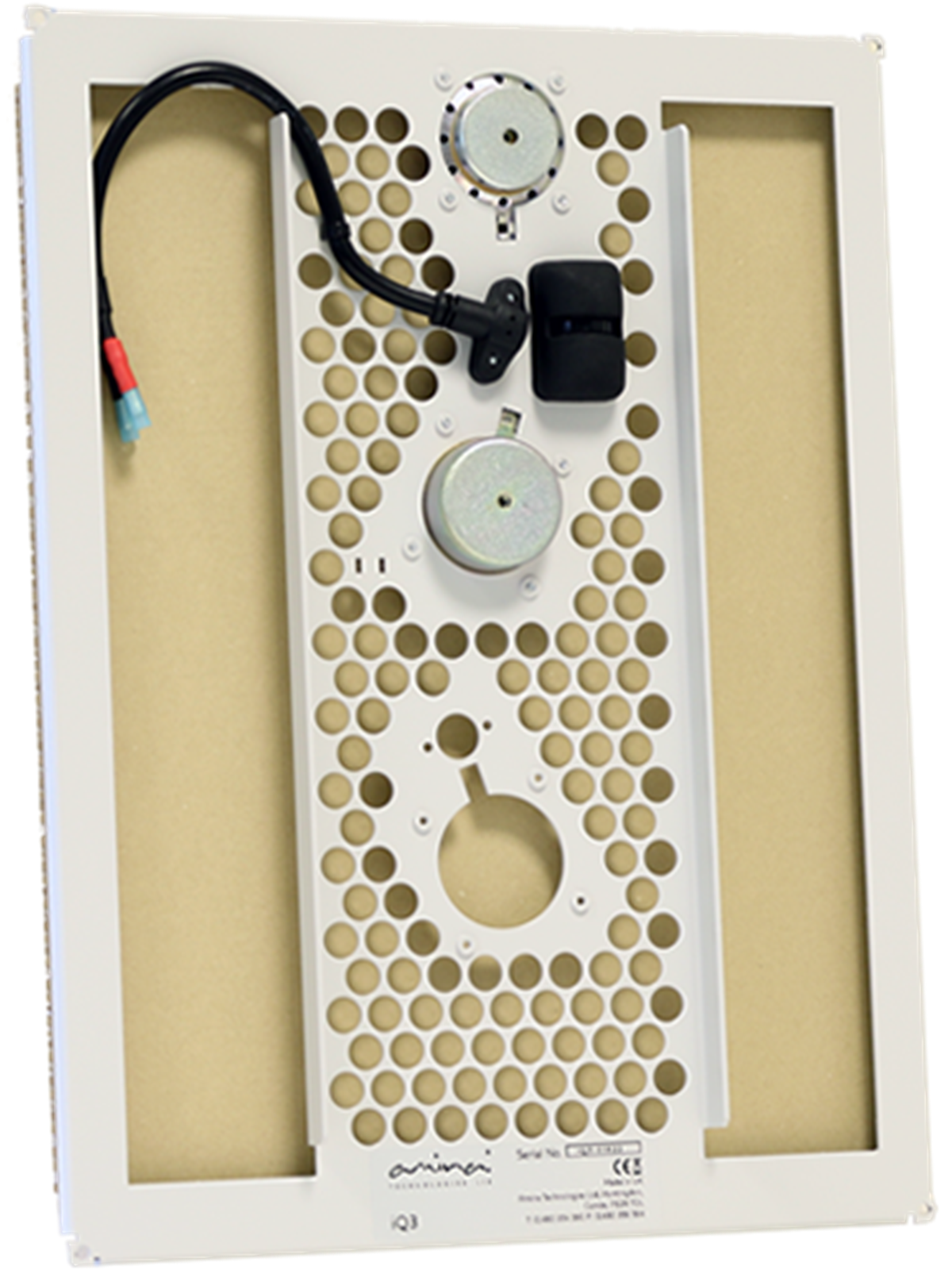

Medium power and cost effective invisible loudspeaker designed to give high quality sound in larger multi room zones, as well as surround sound and 3D audio settings.
The iQ Developer Series creates an opportunity for Invisible Loudspeakers to be incorporated into large developments where there is a restricted budget, such as within multi-dwelling units.
iQ Developer Series loudspeakers can also be used to supplement Mobius or Evolution speakers within a larger installation, providing a cost-effective solution for lesser rooms such as spare bedrooms or hallways.
Paired with a subwoofer, iQ speakers can be used for low to medium level, full-bandwidth music listening at a highly competitive price point. Rendered invisible behind a 2mm skim of plaster, iQ Developer Series speakers use the same OptiDriver and OptiDamping technology found on Mobius and Evolution Invisible Loudspeakers.
Technical Specification
|
Product
|
iQ3
|
|
Nominal Impedance
|
8 Ohms
|
|
Power Handling
|
30W/60W
|
|
Sensitivity
|
84dB
|
|
Frequency Response
|
112Hz - 20kHz
|
|
Electrical
Connection
|
Blue butt-splice crimp terminals (14-16
AWG)
|
|
Dimensions
|
400mm x 300mm x 40mm (153/4” x 114/5” x
13/5”)
|
|
Product Weight
|
1.08Kg (2.38lbs)
|
|
Fixing
Requirements
|
BackboxCV300 / BackboxSW300
|
|
In Line Protection
Unit
|
APUi30
|
|
Rack-Mount
Protection Unit
|
APURS8i or APURS16i
|
Warranty:
- 1 Year (if Self-Installed)
- 10 Years (if installed by SMH with In-Line or Rack-Mounted Protection Unit_
How to Video for Plaster installation
How to Video for Wood/Laminate Adhesion
