Amina 50W @ 8Ohm Invisible Plaster Up-to Loudspeaker - Edge 5


trade price available
Overview
The Ultimate Plaster up to Invisible speaker sets a new standard at this price point.

Example applications: Medium-power residential/commercial distributed audio solutions and multi-channel surround sound systems. Designed for dryline installation or retrofit into fully skimmed walls/ ceilings. Not suitable for solid-wall installation.

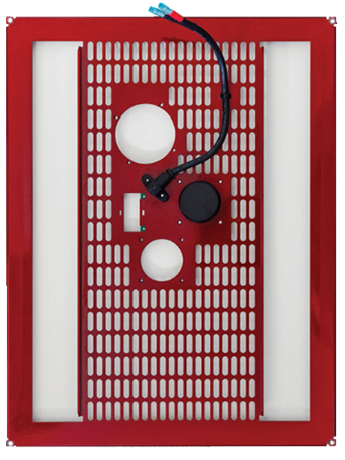

A new revolutionary design for invisible loudspeaker technology, the Edge series offers smooth low frequency extension and increased sensitivity, resulting in a dynamic and engaging listening experience that has never before been heard from an invisible loudspeaker. Building on the award- winning Evolution Series design, the Edge5 incorporates OptiDamping and Reduced- Resonance Exciter technology built into a plaster up-to design. The speaker uses a high quality fire-resistant panel material which allows for seamless integration into plasterboard walls and ceilings without the need for a full wet skim, all in the easy to install, lightweight form-factor that Amina is known for.

Technical Specifications

Product

Edge 5

Nominal Impedance

8 Ohms (APUi50C connected)

Power Handling

50W/100W

Sensitivity

90dB 1m/2.83Vrms (APUi50C connected)

Frequency Response

65Hz - 20kHz (+/-6db) mounted in Backbox CV345 (APUi70 connected)

Electrical Connection

Blue butt-splice crimp terminals (14-16 AWG)

Dimensions

450mm x 345mm x 40mm (173/4” x 135/8” x 15/8”)

Product Weight

1.24Kg (2.73lbs)

Fixing Requirements

BackboxCV345 / BackboxSW345

In Line Protection Unit

APUi50C

Rack-Mount Protection Unit

APU-RS8iC or APU-RS16iC


Warranty:
  • 1 year (if self-installed)
  • 10 Years (if installed by SMH with an In-Line or Rack-Mounted Protection Unit)

How to Video for Amina Edge Installation

£1,020.00 inc. VAT (1% Cashback available on all purchases via Debit Card)
£850.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
