Overview

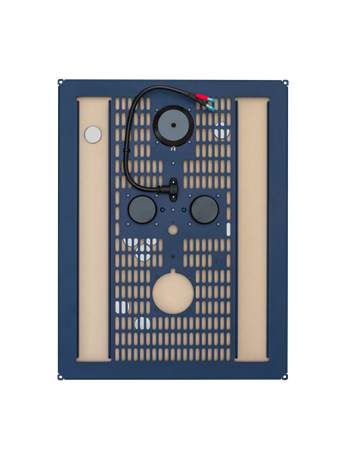

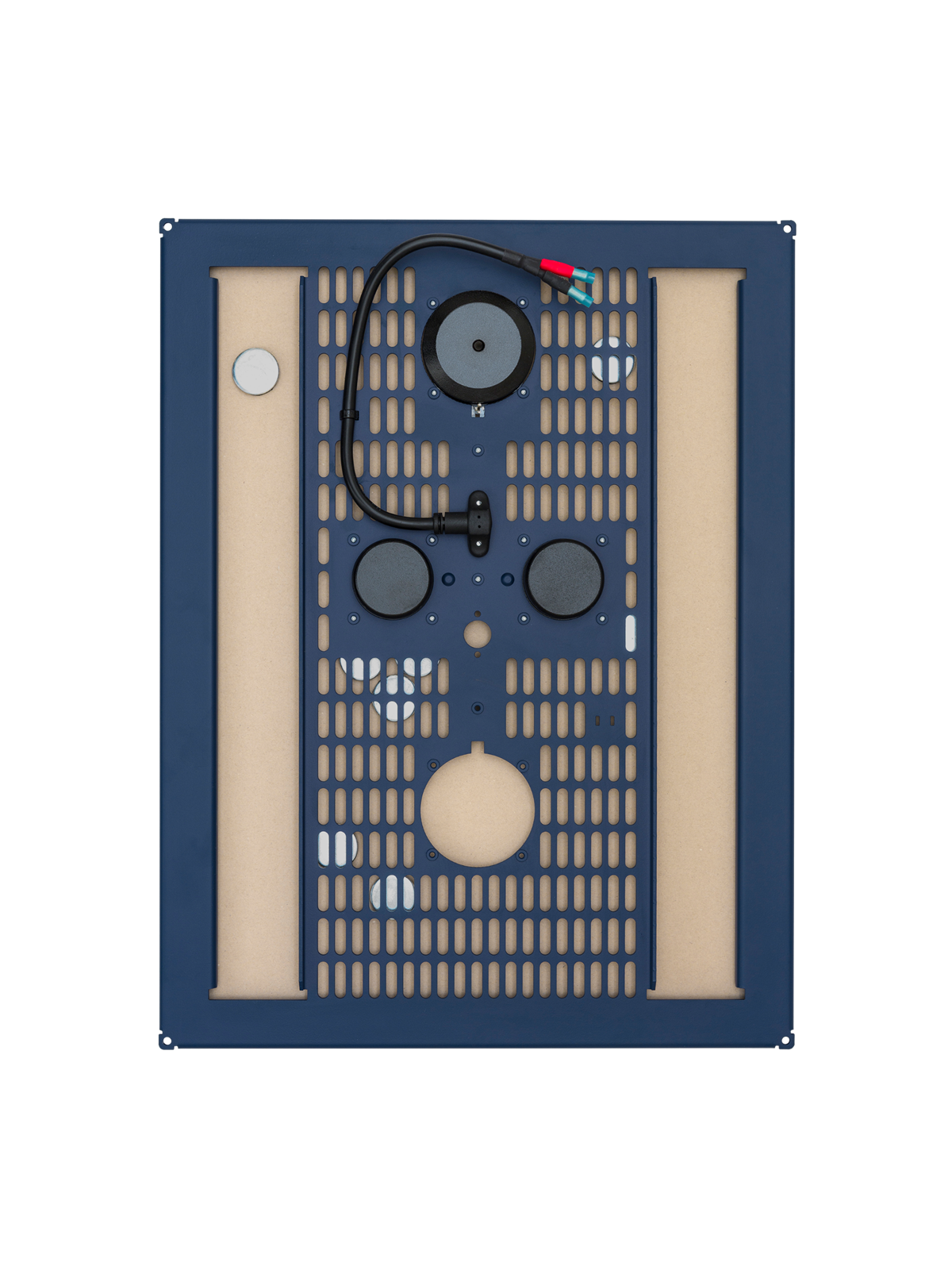

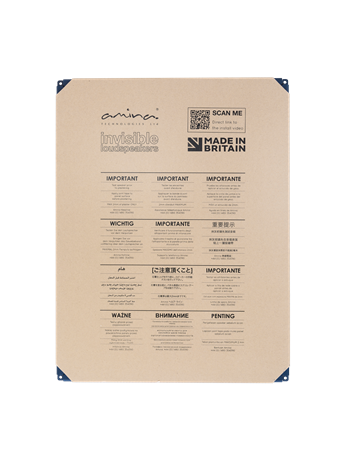

Rendered behind a 2mm skim of plaster, the Amina Mobius7 invisible loudspeaker pushes the sonic boundaries of what is possible with plaster-over loudspeaker technology.
The Mobius incorporates OptiDrive and OptiDamping technology as well as Reduced-Resonance Exciter technology, offering greater low frequency extension and smooth high frequency dispersion all the way to the ultrasonic region.
Designed to be rendered invisible behind a 2mm skim of plaster, the Amina Mobius range of invisible loudspeakers push the sonic boundaries of what is possible with invisible loudspeaker technology.
Building on the award-winning Evolution Series design, Mobius series speakers incorporate OptiDrive and OptiDamping technology as well as Reduced-Resonance Exciter technology, offering greater low frequency extension and smooth high frequency dispersion all the way to the ultrasonic region. These developments allow for unprecedented high frequency performance and detail, enhanced bass reproduction and increased power handling, all in the easy to install, lightweight form-factor that Amina is known for.
Whether installed behind plaster, wood, synthetic veneer and many other materials, the Mobius series will allow for a great sounding, high fidelity audio system for any residential or high end commercial installation. Perfect for high quality distributed audio and multi-channel home cinema applications.
Technical Specification
|
Product
|
Mobius 7
|
|
Nominal Impedance
|
4 Ohms (APUi70
connected)
|
|
Power Handling
|
75W/150W
|
|
Sensitivity
|
87dB 1m/2.83Vrms (APUi70 connected)
|
|
Frequency Response
|
55Hz - 30kHz (-6db) mounted in Backbox
CV345 (APUi70 connected)
|
|
Electrical
Connection
|
Blue butt-splice crimp terminals (14-16
AWG)
|
|
Dimensions
|
450mm x 345mm x 40mm (173/4” x 135/8” x
15/8”)
|
|
Product Weight
|
1.78Kg (3.92lbs)
|
|
Fixing
Requirements
|
BackboxCV345 / BackboxSW345
|
|
In Line Protection
Unit
|
APUi70
|
|
Rack-Mount
Protection Unit
|
APURS8i or APURS16i
|
Warranty:
- 1 Year (if Self-Installed)
- 10 Years (if installed by SMH with In-Line or Rack-Mounted Protection Unit_
How to Video for Plaster installation
How to Video for Wood/Laminate Adhesion
£1,300.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
