Amina Back box for Mobius and Edge Series SW200 (Solid Wall) (Slim-Line)


trade price available
 Description
The BackboxSW200 is an easy to install mounting option into solid or block walls/ceilings for Amina Invisible Loudspeakers with the dimensions 200mm x 450mm (AIW350iN-S200).

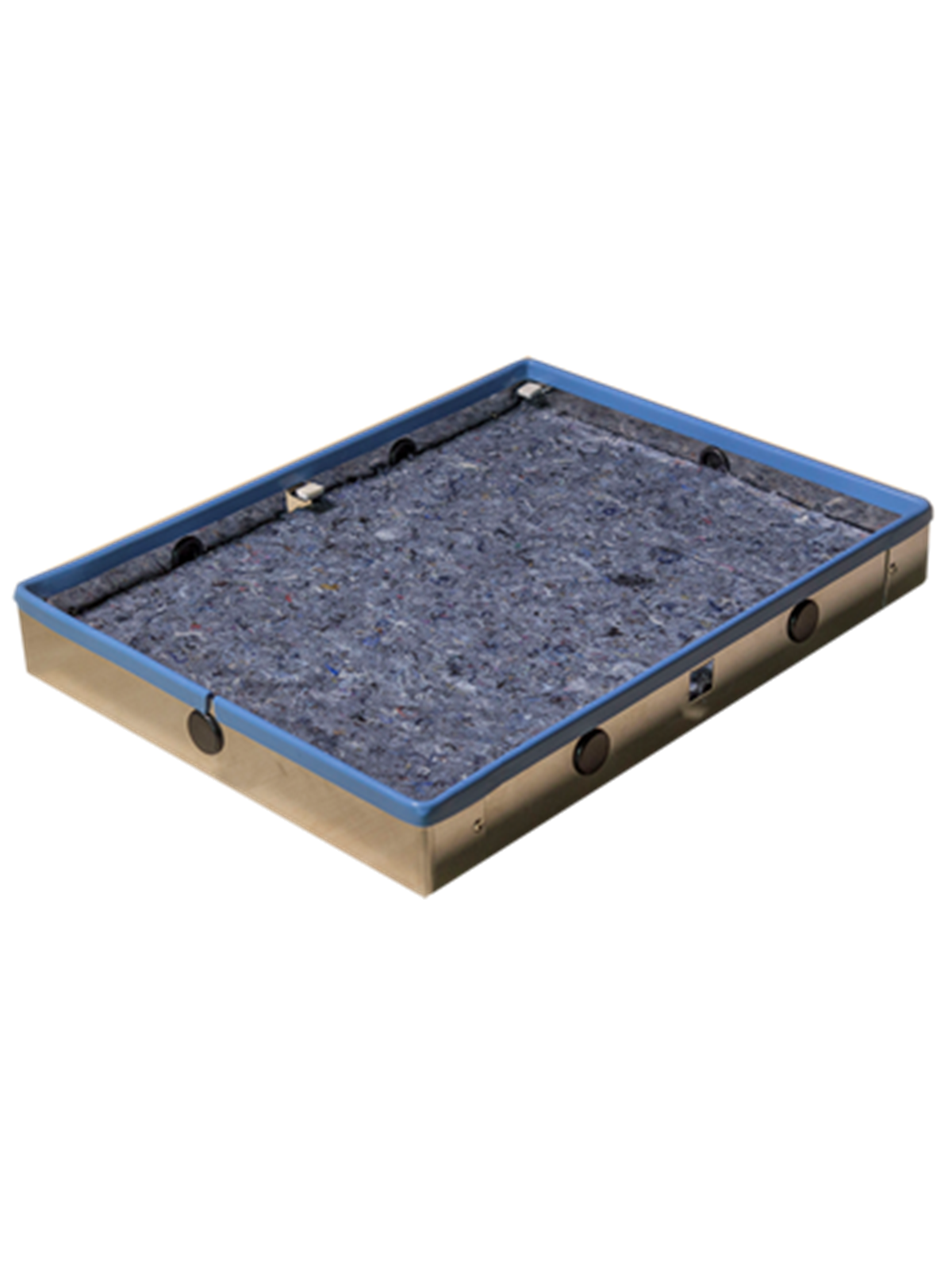

BackboxSW200 is a rugged, stainless steel mounting option, incorporating resonance damping, rubber alignment trim and cable entry grommets.
Note, solid wall installation is not suitable for Edge Series speakers.


  • Dimensions: H/W/D (mm) 455 x 209 x 50
  • Zinc coated steel back box
  • Facilitate speaker installation in solid
  • block, brick and stone wall types
  • Use for installation of all 200mm width panels
  • Contains Composite sound proofing material
Technical Specifications

Product

BackboxSW200

Dimensions

464mm x 214mm x 55mm

(189/32” x 87/16” x 23/16”)

Weight

1.8Kg (3lbs 15oz)

Required cavity cutout

468mm x 218mm (1817/16” x 819/32”)

Approximate cavity depth

60mm (25/16”)

Speaker cable entry

Rubber grommets

Speaker fixing

4 x self tapping flange-head screws (supplied)

Wall fixing

4 x screws/anchors/wall plugs suitable for the

wall/ceiling structure (not supplied)


£120.00 inc. VAT (1% Cashback available on all purchases via Debit Card)
£100.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
