Overview

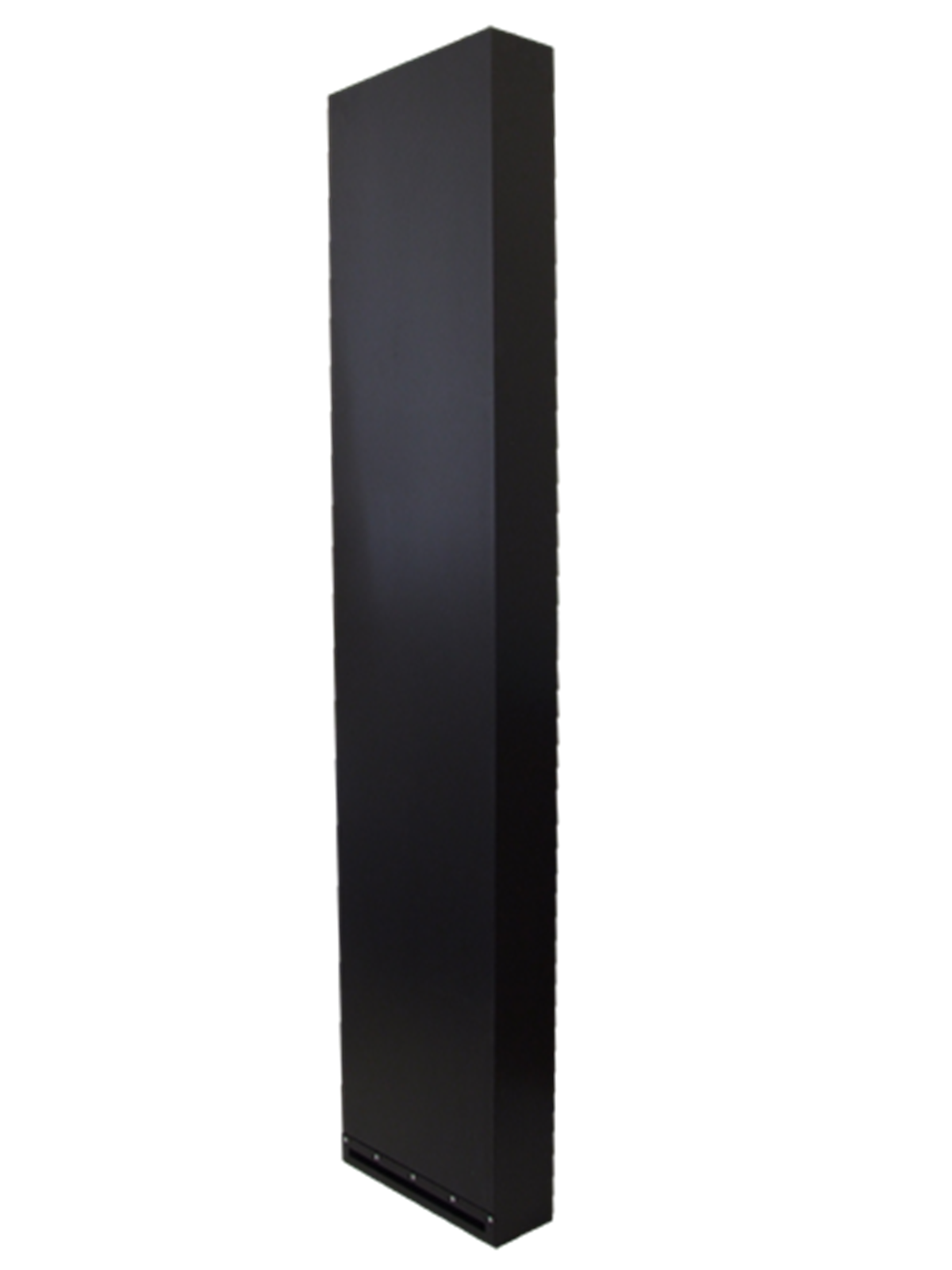

The ALF120 subwoofer uses a unique Distributed Transmission Line bass loading technique to produce deep and loud low frequencies from a slim, in wall enclosure. The ALF120 has been developed specifically for use in discreet, high performance, stereo and multi-channel cinema systems
The ALF120 provides deep discreet bass solution for Amina media room installations.
Amina discreet subwoofers are designed to be installed alongside Mobius, Evolution, iQ and LiFi speakers to provide enhanced low frequency performance and extension.
Porting through a visible vent, Amina subwoofers can be installed in walls and ceilings or be built into cabinetry or furniture, giving the performance of a conventional large in-room subwoofer without having to take up valuable floor space. All subwoofers come with paintable port trims and can be further disguised by venting into shadow lines of dropped ceilings, or by being positioned under furniture.
Whether your customer requires the low frequency enhancement of the ALF40, the high power of the ALF80 or the room-shaking extension of the ALF120, Amina discreet subwoofers are perfect for any discreet low frequency application.
Technical Specification
|
Product
|
ALF-120
|
|
Sensitivity
|
96dB @ 1m/2.83Vrms
(Quarter space)
|
|
Frequency Response
|
27Hz -120Hz (+/-6dB) / 29Hz - 101Hz
(+/-3dB)
|
|
Max SPL
|
111dB @ 1m (Quarter space)
|
|
Dimensions
|
1605mm x 345mm x 118mm (631/5” x 135/8”
x 43/4”)
|
|
Product Weight
|
17.5Kg (38 37/64lbs)
|
|
Design
|
Hybrid Quarter Wave/ Transmission Line
|
|
Port Location
|
Front or base convertible
|
|
Port Dimensions
|
308mm x 14mm (12" x 9/16")
|
|
Electrical
Connection
|
3- way binding post (4mm plug, spade or
bare wire). Bi-wire for future upgrades only
|
|
Overload
Protection
|
DSP
|
£1,425.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
