DrayTek VigorAP 920RPD - Ruggedised Wireless Access Point (Special Order / Discontinued)


trade price available
WHAT IS IT?

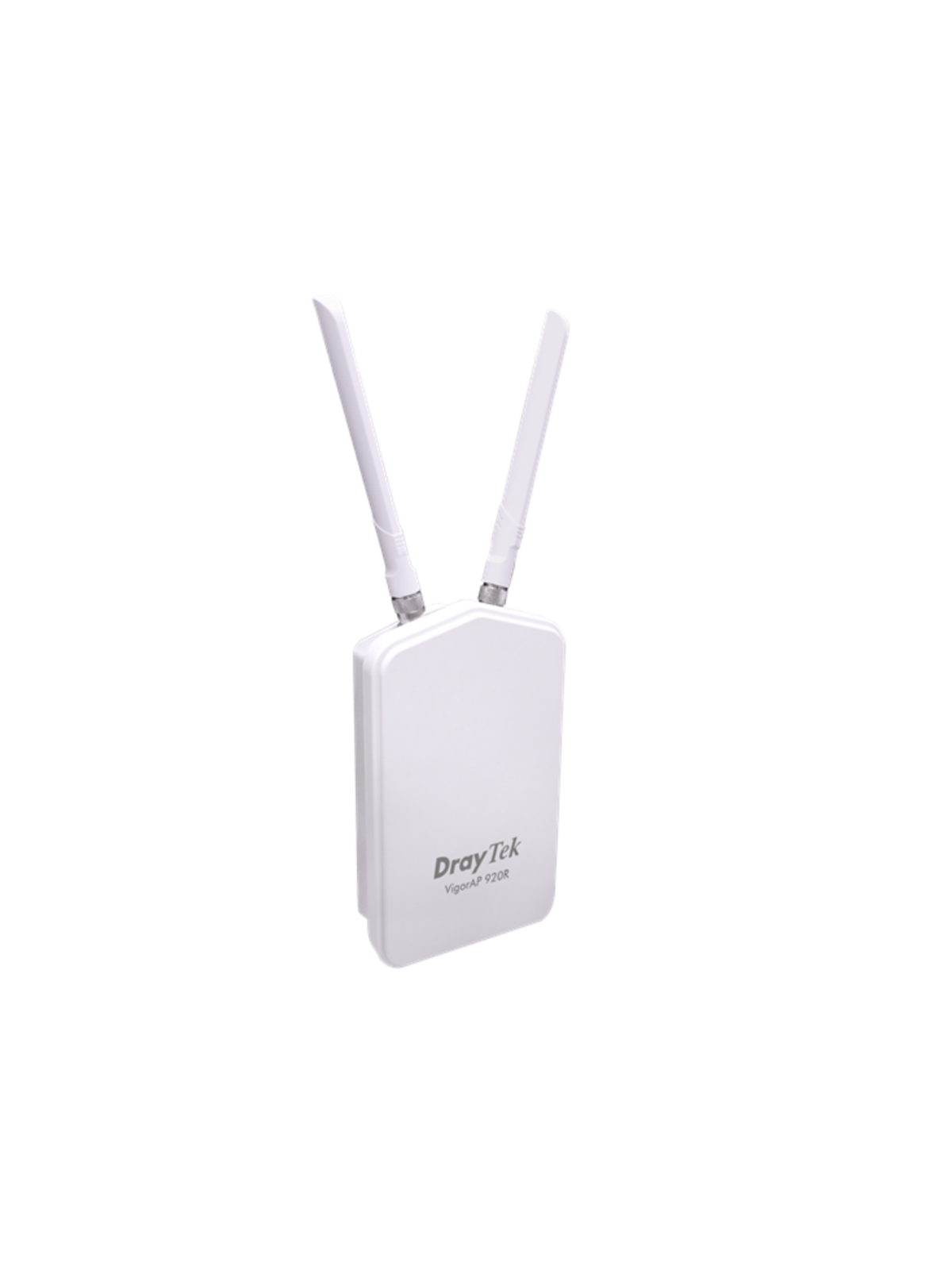

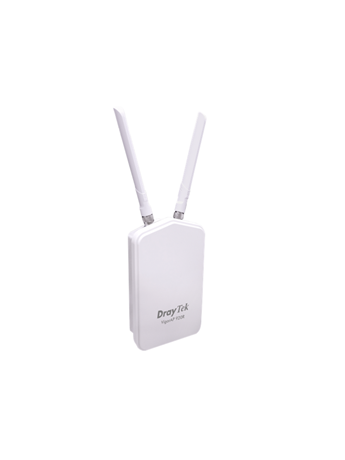

The DrayTek VigorAP 920RPD is a wireless access point designed for outdoor environments. It is ideal for providing wireless access to users and devices in any outdoor scenarios, including restaurants, gardens, marinas, educational premises or, really, anywhere where outdoor access is needed.

The VigorAP 920RPD can be wall or pole-mounted - fixing brackets are included with the product, allowing the VigorAP to be fitted at up to 45° up & down and/or left & right. With its dual Omni-Directional antennas and internal High-Gain Directional antenna (switchable), it can be used as a wireless access point or Point-to-Point wireless link between buildings.

Fully IP67 compliant, the product can work in extremes of heat, cold, dirty and wet environments. It is dust and water resistant and housed in a robust metal case to withstand harsh environments.

When we say 'ruggedised', this product has been designed from scratch, using high-tolerance components and designed to perform in all supported environments, in operating temperatures of well below freezing up to 70° Centigrade. This isn't our indoor product 'put in a fancy box' and hoping for the best.

The VigorAP is powered through the Ethernet network cable by any standard PoE (802.3af) or PoE+ (802.3at) Ethernet switch, PoE injector or a PoE-equipped router such as the DrayTek Vigor 2952P.

Technical Specification

Physical Interfaces/Controls:
  • LAN: 1 x Gigabit Ethernet
    Requires 802.3af PoE Power
  • Reset Button
  • Antenna connectors: 2 x N Type
Omni-Directional Wireless Antennae Specifications:
  • 2 x Antennae (supplied)
  • N-type fitting
  • Omni-directional
  • Removable
  • Weatherproof
  • TX/RX dual-band
  • 2.4G Gain: 3.5 dBi
  • 5G Gain: 6 dBi
Directional High-Gain Wireless Antenna Specifications:
  • Internal (Weatherproof)
  • 5GHz TX/RX
  • 12 dBi Gain
  • Uni-Directional
  • MIMO (2x2) antenna design
  • 20° Beamwidth
Wireless LAN Compatibility:
  • IEEE 802.11ac (Wave 1 & 2) / a / b / g / n
  • Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation
    Up to 128 clients per radio - New!
  • Extended 5Ghz Band - Channels 100-140
  • DFS/TPC Support
  • Total wireless bandwidth (capacity) 1200Mb/s
  • 2.4GHz at 40MHz Channel Bandwidth
    802.11b/g/n: 300Mb/s (150Mb/s per Spatial Stream)
    256-QAM: 400Mb/s (200Mb/s per Spatial Stream)
  • 5GHz at 80MHz Channel Bandwidth
    802.11a/n: 300Mb/s (150Mb/s per Spatial Stream)
    802.11ac: 866Mb/s (433Mb/s per Spatial Stream)
Security Features:
  • Wireless Encryption : WPA2 (802.11i) Encryption also supports WPA/WEP (Not recommended)
  • Built in 802.1x server (PEAP / EAP-TLS)
  • 802.1x RADIUS Proxy (PEAP / EAP-TLS)
  • PMK Caching & Pre-authentication
  • Wireless Client Isolation
  • Control Isolation of 2.4GHz and 5GHz bands
  • Hidden SSIDs (Selectable)
  • WPS - WiFi Protected Setup
  • MAC Address Filtering (ACL)
  • Mobile Device Management
  • EAPOL Key Retry - New! - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Power, environmental & Physical:
  • Operating Temperature : -40° C to 70° C
  • Operating Humidity: 5% to 95% (Non-condensing)
  • Physical Dimensions: 160mm (W) x 255mm (H) x 80mm (D)
  • Physical Dimensions with Aerials and bracket: 160mm (W) x 485mm (H) x 180mm (D)
  • Weight : 1.7kg (main unit, including Aerials and bracket)
  • Fitting: Wall, Ceiling or Pole Mountable
  • Pack Contents: VigorAP 920R main unit, two N-type Omnidirectional aerials, Quick Start Guide
  • Power: 802.3af PoE - adapter not supplied, requires PoE injector or a PoE switch such as the VigorSwitch P1092
Management:
  • Web Interface (HTTP/HTTPS)
  • DHCP Client
  • TR-069 Control (For VigorACS or other TR-069 platform)
  • CLI (Command Line Interface) - Telnet
  • Firmware upgrade by TR-069/HTTP
  • Central AP Management (from compatible DrayTek router/controller)
  • SNMP v2, v2c, v3
  • Management VLAN
  • LED Control (enable/disable/schedule)
  • Buzzer (for locating AP)
  • Configuration File Export (with password) & Import
  • Wireless Auto On/Off - New! - Sound alert / Disable Wireless if VigorAP is unable to ping specified host
Wireless Control Features:
  • Wireless Client Status List in WUI
  • Client Limit per radio
  • Client Limit per SSID - New!
  • Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
  • MAC Cloning
  • Built-in DHCP Server & DHCP Relay
  • Trusted DHCP Server IP for WLAN - New! - Only specifed DHCP server IP can assign IP addresses to WLAN clients802.1q VLAN
  • Station Control - Time limit wireless connectivity per Station (e.g. 1 hour) & set allowed Reconnection time (e.g. 1 day)


Special Order / Discontinued
