Future Automation Heavy Duty Picture Lift Mechanism PICH

Description

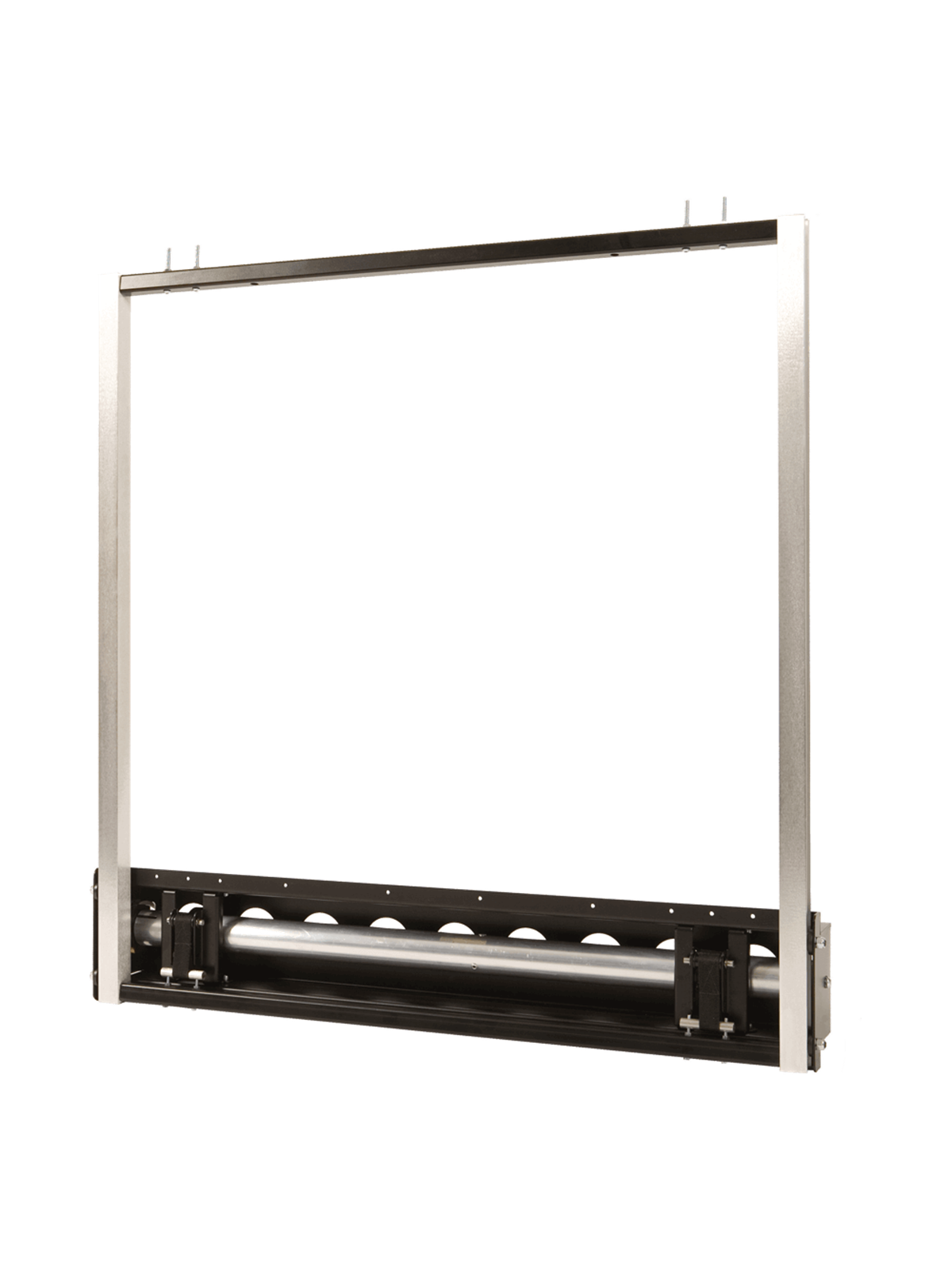

The Heavy Duty Picture Lift mechanism allows a flat screen to be concealed in a recess behind a heavy piece of art work or mirror.

A range of travel options are available to allow any screen from 32” to 60” to be concealed.

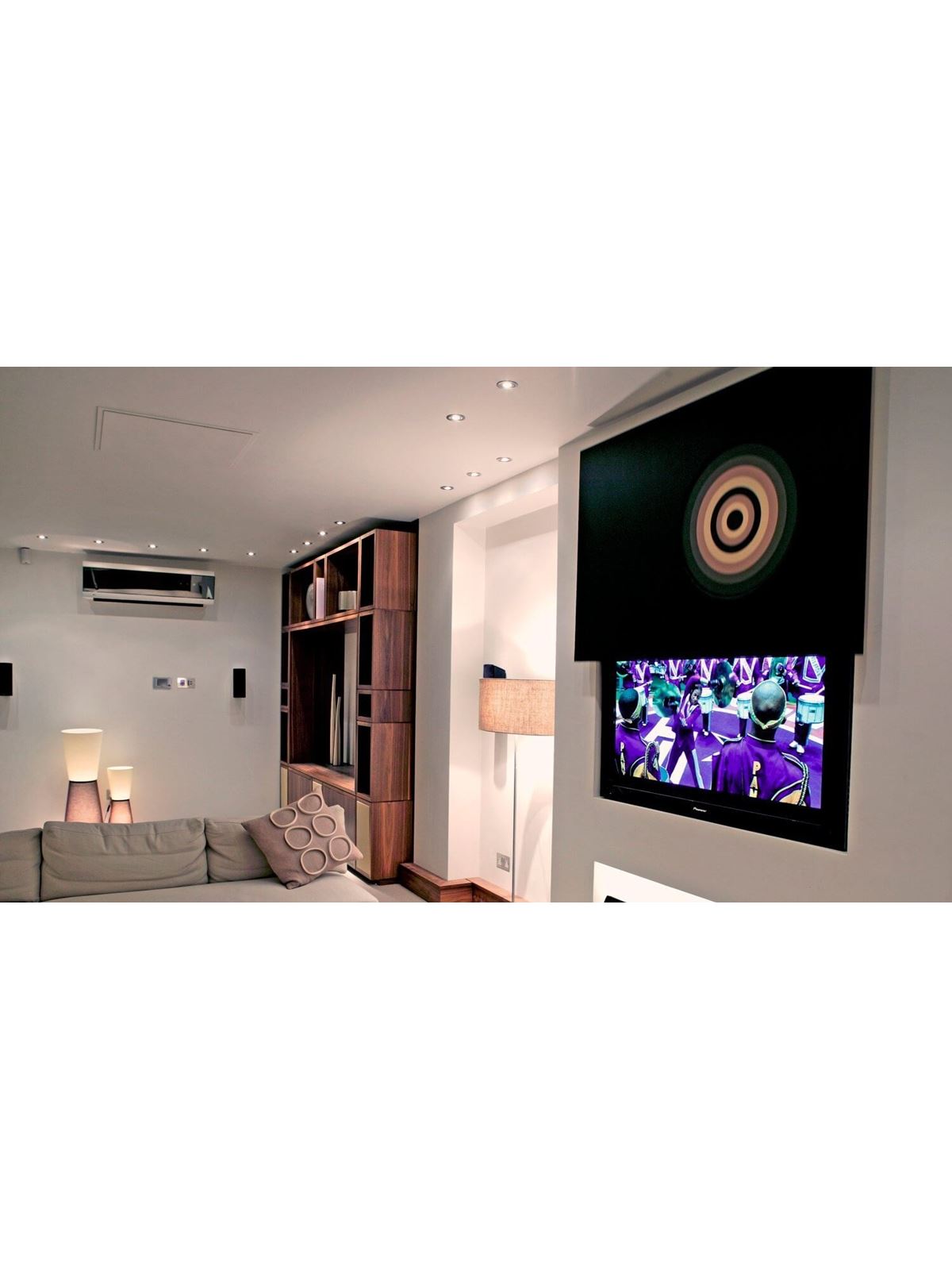

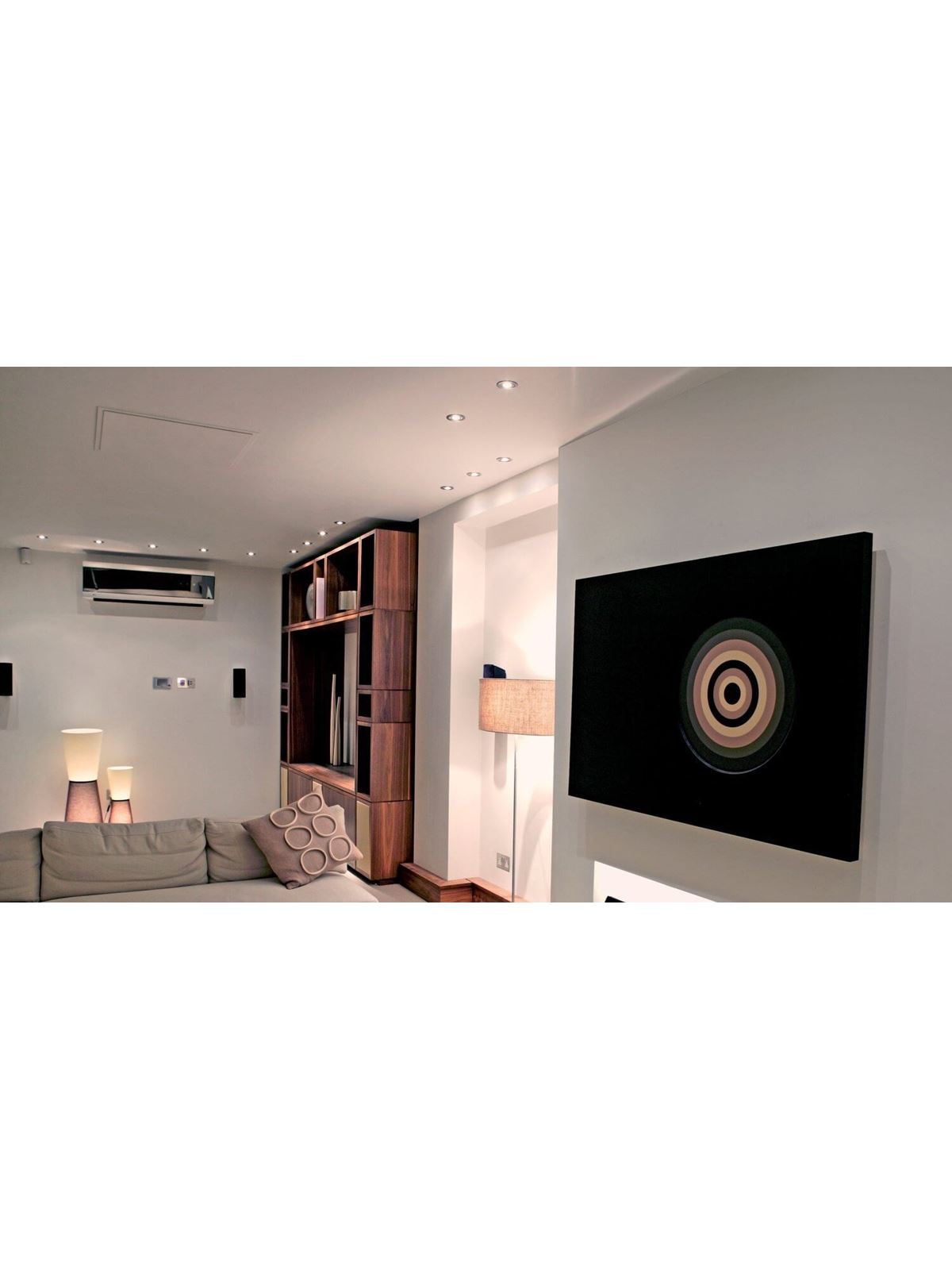

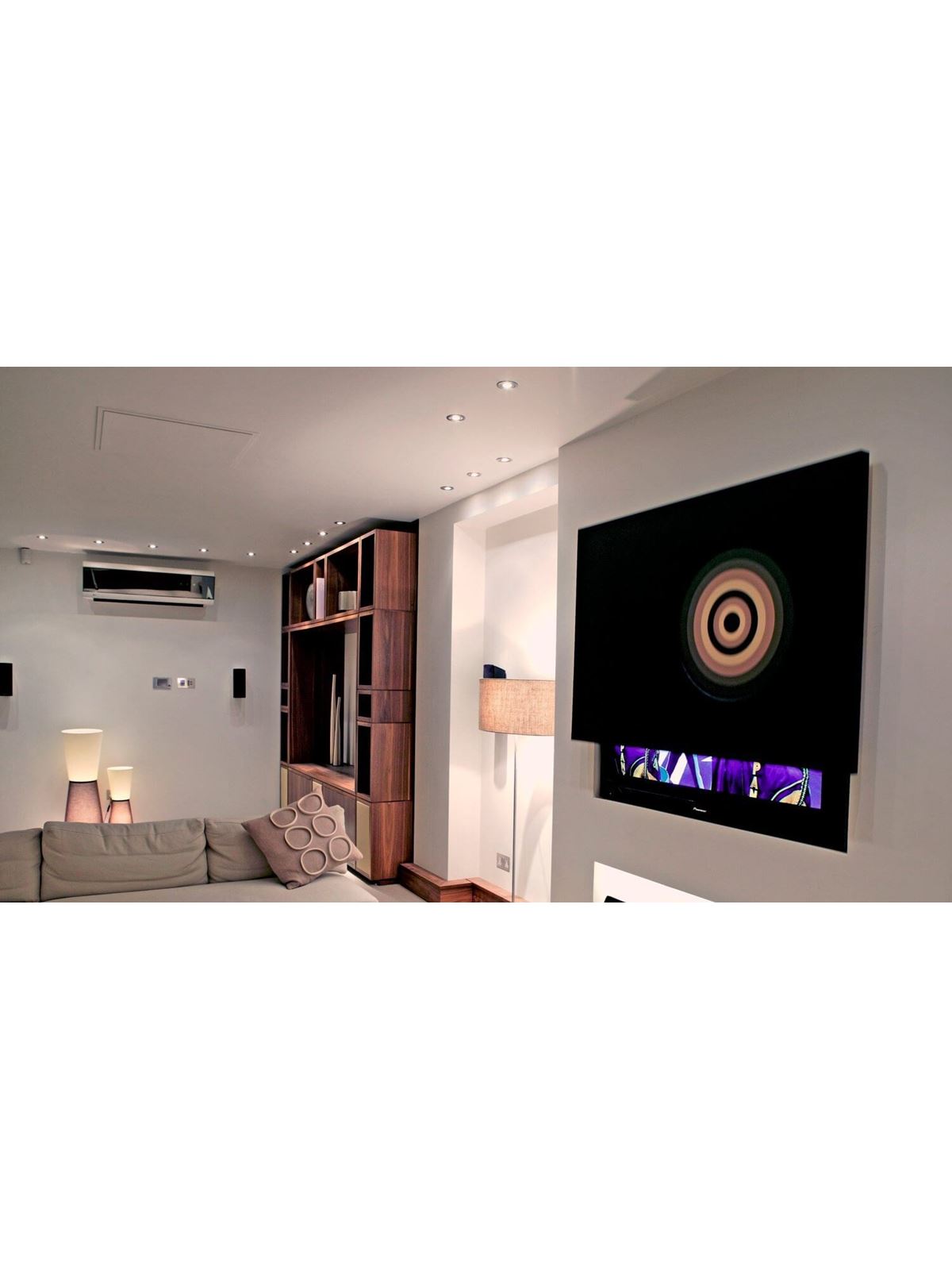

The single panel, picture or mirror can either raise or lower to reveal the screen – a brilliantly simple mechanism to conceal a screen in a wall.

PRODUCT CODE	PICH1	PICH2	PICH3	PICH-BESPOKE
CONTROL OPTIONS	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING	59DB	59DB	59DB	VARIABLE
DEPTH WITHIN WALL	80MM (3.14")	80MM (3.14")	80MM (3.14")	VARIABLE
FINISH (CUSTOM AVAILABLE)	BLACK PAINT - RAL 9005	BLACK PAINT - RAL 9005	BLACK PAINT - RAL 9005	BLACK PAINT - RAL 9005
MAX TRAVEL OF PANEL	710MM (27.95")	860MM (33.85")	1010MM (39.76")	REQUIRED DISTANCE
MAX WEIGHT OF PANEL	35KG (77LBS)	35KG (77LBS)	35KG (77LBS)	REQUIRED WEIGHT
MOVEMENT TYPE	MOTORISED	MOTORISED	MOTORISED	MOTORISED
POWER CONSUMPTION	110W	110W	110W	VARIABLE
POWER CONSUMPTION (STANDBY)	3W	3W	3W	VARIABLE
POWER SUPPLY	240V OR 110V	240V OR 110V	240V OR 110V	240V OR 110V
SHIPPING DIMENSIONS	110 x 28 x 22cm (50 x 11.02 x 8.66")	110 x 28 x 22cm (50 x 11.02 x 8.66")	127 x 28 x 22cm (50 x 11.02 x 8.66")	VARIABLE
SHIPPING WEIGHT	14kg (30lbs)	15kg (33lbs)	16kg (35lbs)	VARIABLE

£1,980.00 inc. VAT (1% Cashback available on all purchases via Debit Card)

£1,650.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.

Select Version
