Description

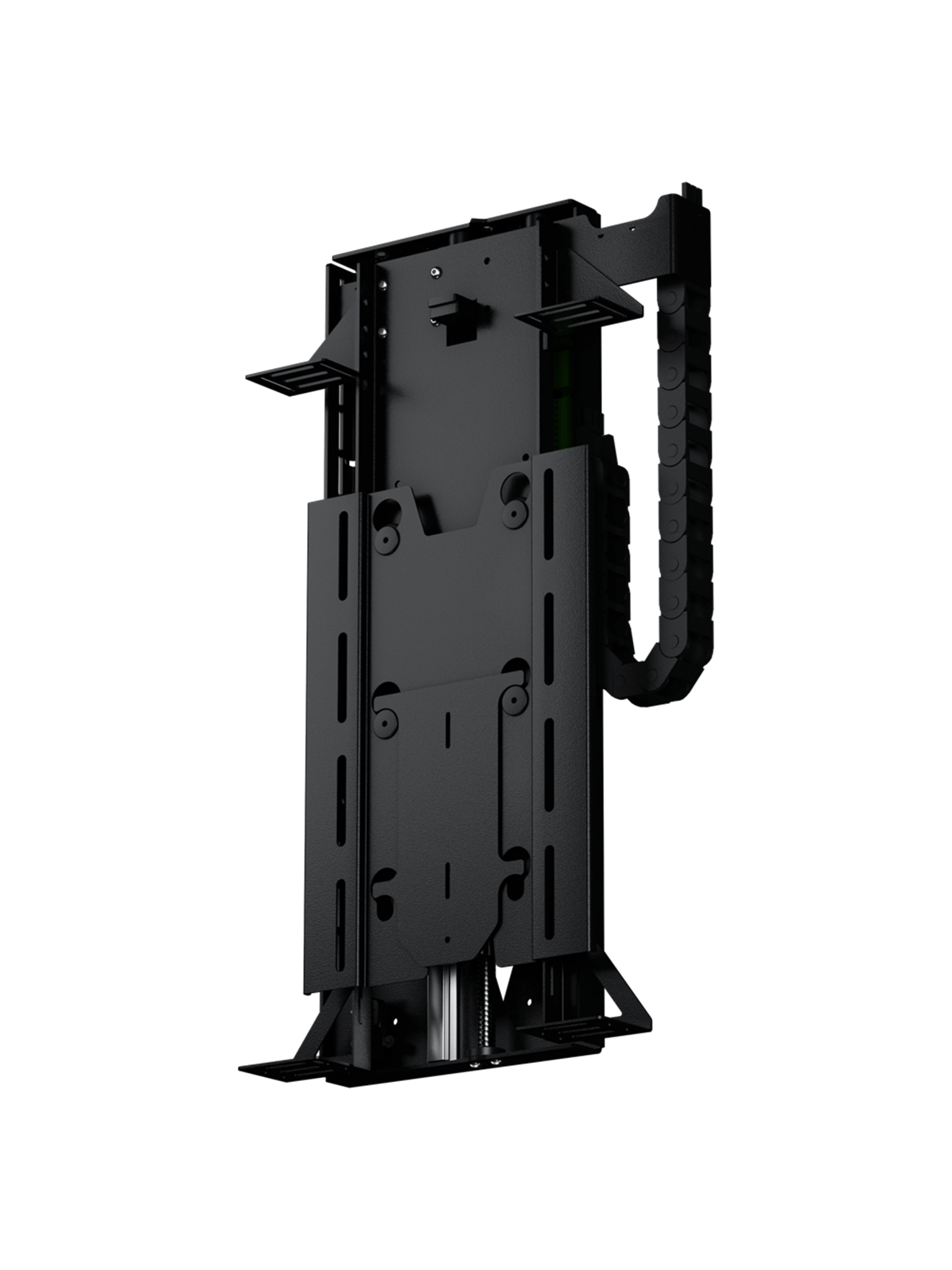

The I-LSL inverted TV lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing. Ideal for use when there is no space available in the room itself for a permanent screen position, the I-LSL allows a screen to be hidden in what would normally be unusable due to access, and motorised down into the room to a perfect viewing position when
- Quiet and Smooth Action
- Full Cable Management
- Wide Range of Mounting Options
- 24V DC motor - suitable for direct DC supply
- Marine Suitable Robust Beam
|
PRODUCT CODE
|
I-LSL1
|
I-LSL2
|
I-LSL3
|
|
CONTROL BOX
DIMENSIONS
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
|
CONTROL OPTIONS
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
|
DECIBEL RATING
|
58DB
|
58DB
|
58DB
|
|
FINISH (CUSTOM
AVAILABLE)
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
|
LID TYPES
AVAILABLE
|
LSL-BE - BOX ENCLOSURE
LSL-EFA - ELECTRIC FLAP
|
LSL-BE - BOX ENCLOSURE
LSL-EFA - ELECTRIC FLAP
|
LSL-BE - BOX ENCLOSURE
LSL-EFA - ELECTRIC FLAP
|
|
MAX LIFTING
CAPACITY
|
25KG (55LBS)
|
25KG (55LBS)
|
25KG (55LBS)
|
|
MAX LIFTING
CAPACITY (MARINE)
|
16KG (35LBS)
|
16KG (35LBS)
|
16KG (35LBS)
|
|
MAX SCREEN HEIGHT
|
410MM (16.14")
|
524MM (20.62")
|
599MM (23.58")
|
|
MOVEMENT TYPE
|
MOTORISED
|
MOTORISED
|
MOTORISED
|
|
OUTPUT POWER
SUPPLY
|
YES(12V)
|
YES(12V)
|
YES(12V)
|
|
POWER CONSUMPTION
|
250 - 500W
|
250 - 500W
|
250 - 500W
|
|
POWER SUPPLY
|
240V OR 110V
|
240V OR 110V
|
240V OR 110V
|
|
SCREEN SIZES
(APPROX)
|
19-32"
|
32-40"
|
40"
|
|
SHIPPING
DIMENSIONS
|
92 x 55 x 25cm (36.22 x 21.65 x
9.84")
|
92 x 55 x 25cm (36.22 x 21.65 x
9.84")
|
105 x 55 x 25cm (4.13 x 21.65 x
9.84")
|
|
SHIPPING WEIGHT
|
15kg (33lbs)
|
18kg (40lbs)
|
20kg (44lbs)
|
£1,375.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
