Future Automation Inverted TV LIFT 42"-65" - I-LSM


Description

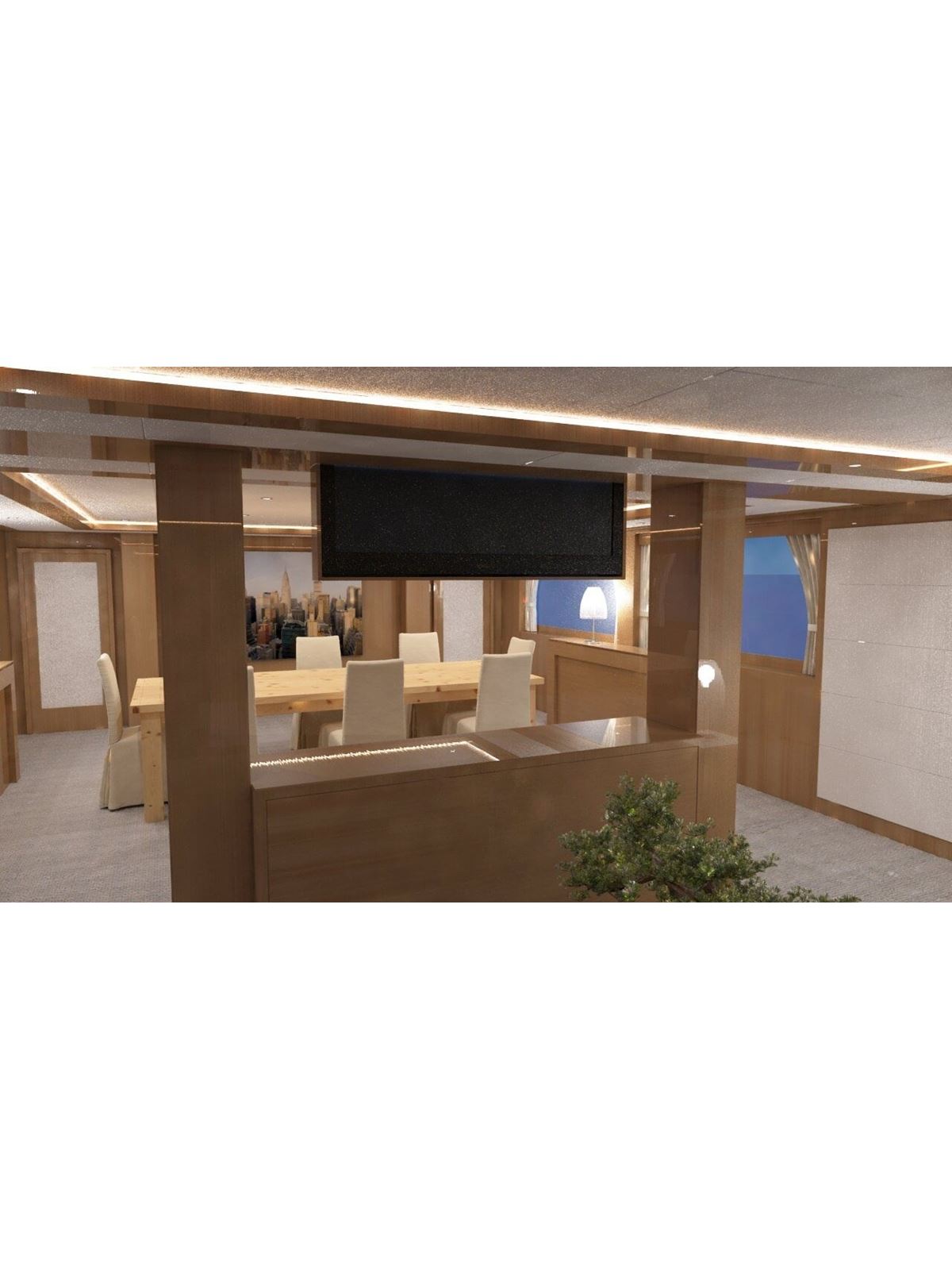

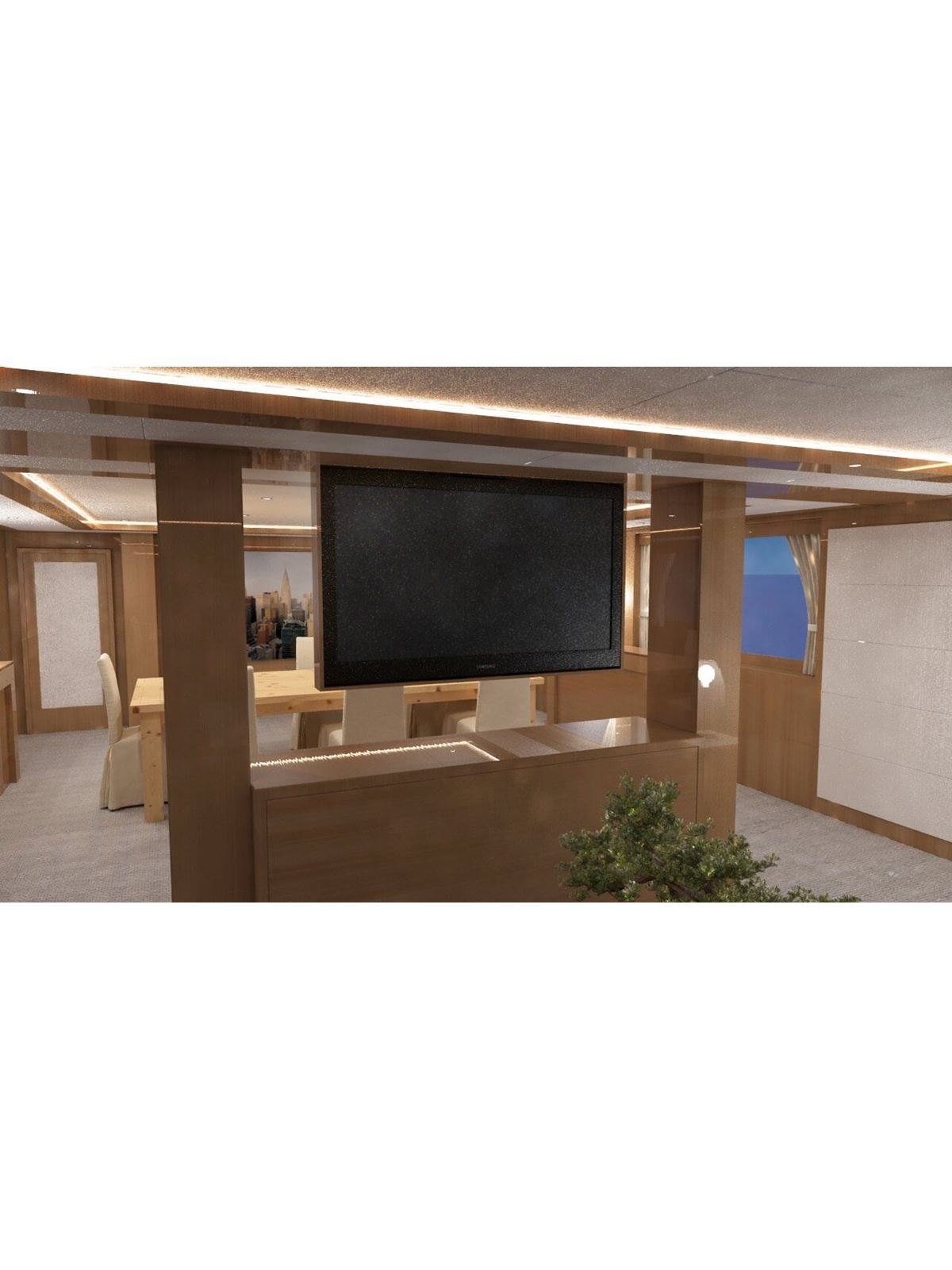

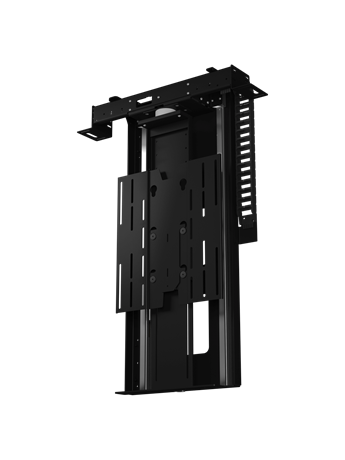

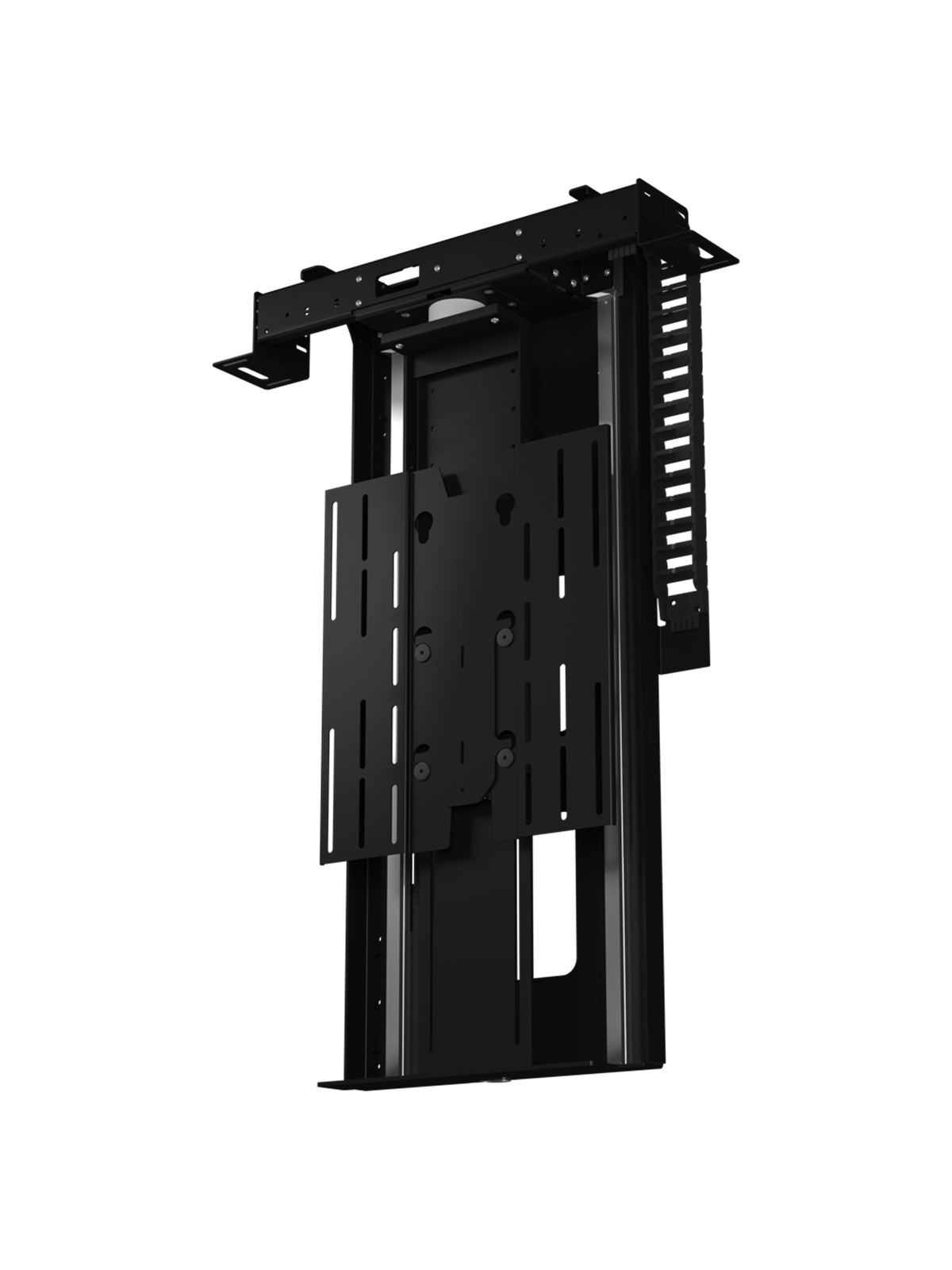

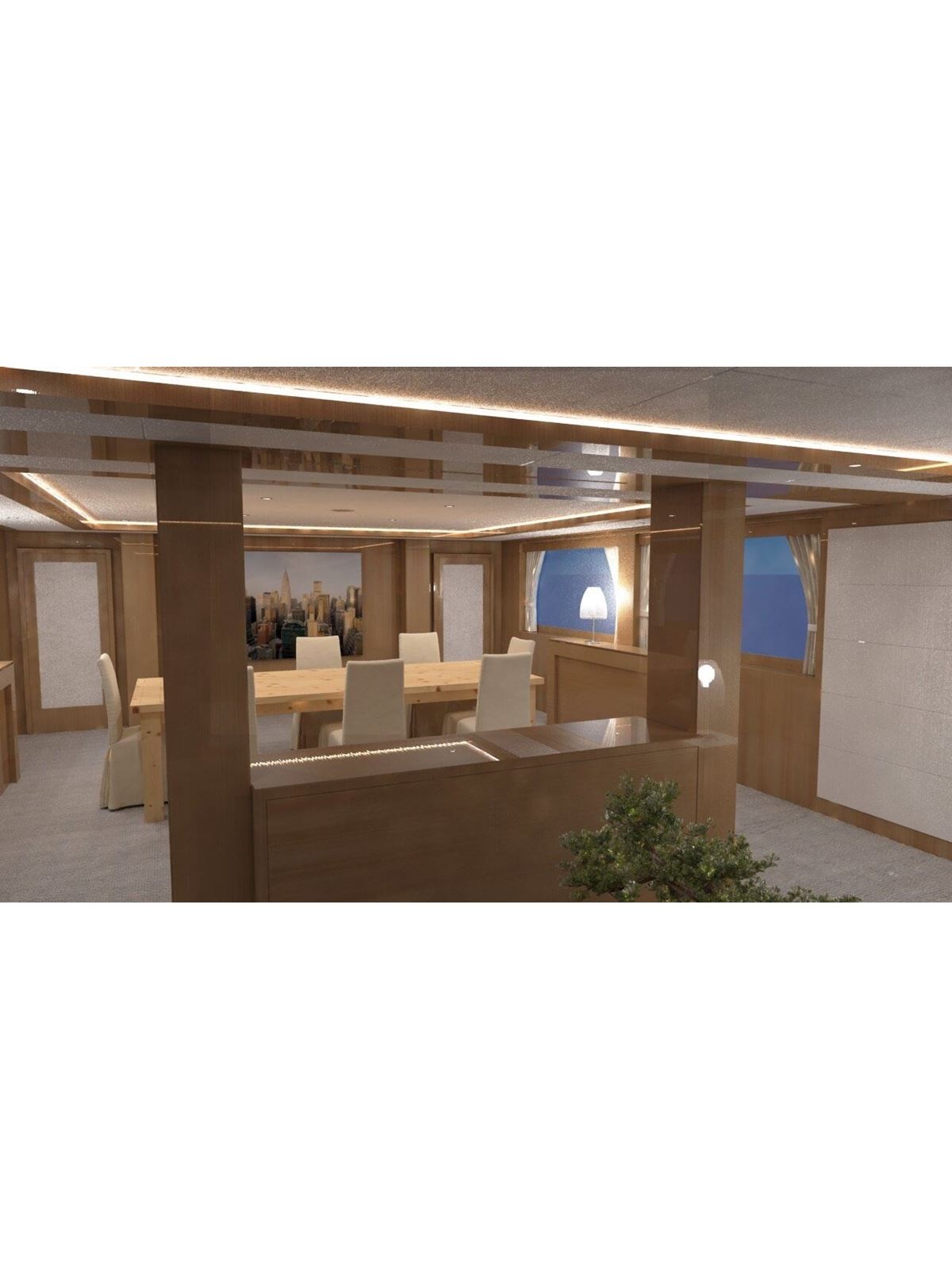

The I-LSM inverted TV lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing. Ideal for use when there is no space available in the room itself for a permanent screen position, the I-LSM allows a screen to be hidden in what would normally be unusable due to access, and motorised down into the room to a perfect viewing position when required
  • Quiet and Smooth Action
  • Full Cable Management
  • Wide Range of Mounting Options
  • 24V DC motor - suitable for direct DC supply


PRODUCT CODE



I-LSM4

I-LSM5

I-LSM6

I-LSM7

CONTROL BOX DIMENSIONS

150 X 210 X 50MM

(5.9 X 8.26 X 1.96")

150 X 210 X 50MM

(5.9 X 8.26 X 1.96")

150 X 210 X 50MM

(5.9 X 8.26 X 1.96")

150 X 210 X 50MM

(5.9 X 8.26 X 1.96")

CONTROL OPTIONS

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

DECIBEL RATING

52DB

52DB

52DB

52DB

FINISH (CUSTOM AVAILABLE)

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

LID TYPE

BOX ENCLOSURE

BOX ENCLOSURE

BOX ENCLOSURE

BOX ENCLOSURE

MAX LIFTING CAPACITY

50KG (110LBS)

50KG (110LBS)

50KG (110LBS)

50KG (110LBS)

MAX LIFTING CAPACITY (MARINE)

30KG (66LBS)

30KG (66LBS)

30KG (66LBS)

30KG (66LBS)

MAX SCREEN HEIGHT

675MM (26.67")

735MM (28.93")

805MM (31.69")

915MM (36.02")

MOVEMENT TYPE

MOTORISED

MOTORISED

MOTORISED

MOTORISED

OUTPUT POWER SUPPLY

YES(12V)

YES(12V)

YES(12V)

YES(12V)

POWER CONSUMPTION

250W - 500W

250W - 500W

250W - 500W

250W - 500W

POWER SUPPLY

240V OR 110V

240V OR 110V

240V OR 110V

240V OR 110V

SCREEN SIZES (APPROX)

42-50"

50-55"

55-60"

60-65"

SHIPPING DIMENSIONS

101 x 85 x 33cm

(39.8 x 33.5 x 13")

108 x 85 x 33cm

(42.5 x 33.5 x 13")

115 x 85 x 33cm

(45.3 x 33.5 x 13")

125 x 85 x 33cm

(49.2 x 33.5 x 13")

SHIPPING WEIGHT

34kg (75lbs)

35kg (77lbs)

36kg (79lbs)

37kg (82lbs)


£2,640.00 inc. VAT (1% Cashback available on all purchases via Debit Card)
£2,200.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
