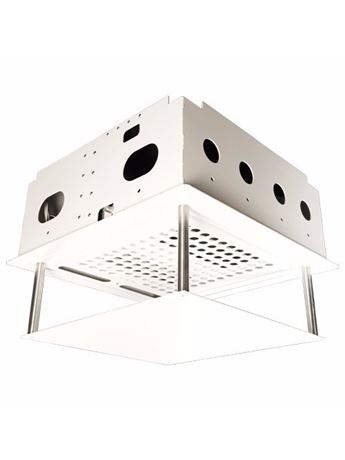

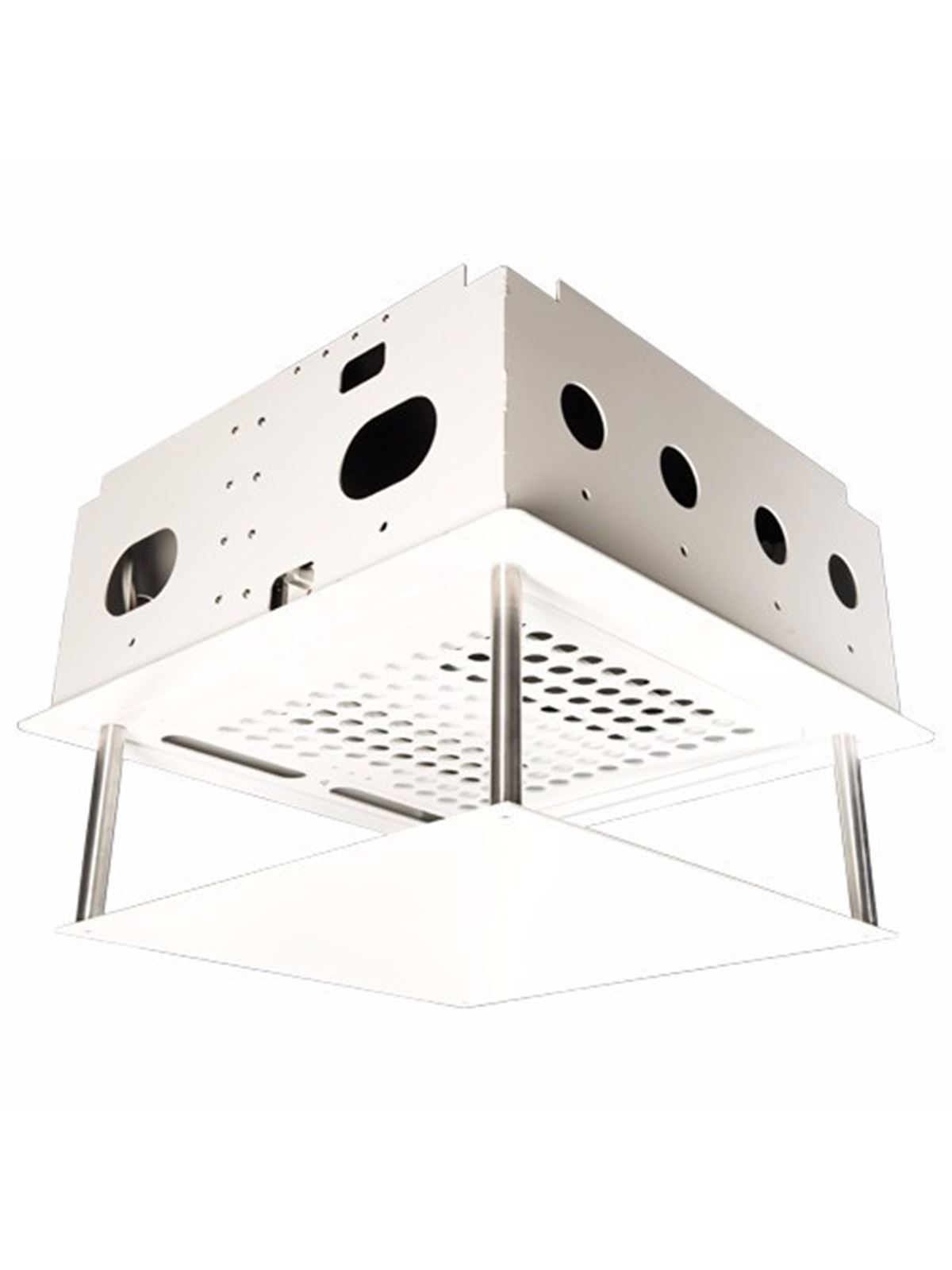

Future Automation Marine Projector Lift PDM

Description

The Projector Drop Marine is a superb addition to the Future Automation product line up. Using precise and robust rack and pinion technology, the Projector Drop Marine is the most accurate product of its kind on the market. Ideal for residential and marine use, the discrete design is ideal for applications where aesthetic finish is important. IP rated outdoor options are also available.

Innovative and unique design
Ultra neat finish in down position
Full Cable Management
Fully adjustable mount

PRODUCT CODE	PDM2	PDM3
CONTROL OPTIONS	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING	48DB	59DB
DEPTH WITHIN CEILING	270MM (10.62")	355MM (13.97")
FINISH (CUSTOM AVAILABLE)	WHITE PAINT - RAL9910	WHITE PAINT - RAL9910
MAX TRAVEL	200MM (7.87")	245MM (9.64")
MAX WEIGHT	25KG (55LBS)	25KG (55LBS)
POWER CONSUMPTION	MAX 110W	MAX 110W
POWER CONSUMPTION (STANDBY)	3W	3W
POWER SUPPLY	240V OR 110V	240V OR 110V

Data sheet : Download

Install guide : Download

£4,950.00 inc. VAT (1% Cashback available on all purchases via Debit Card)

£4,125.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.

Select Versions
