Description

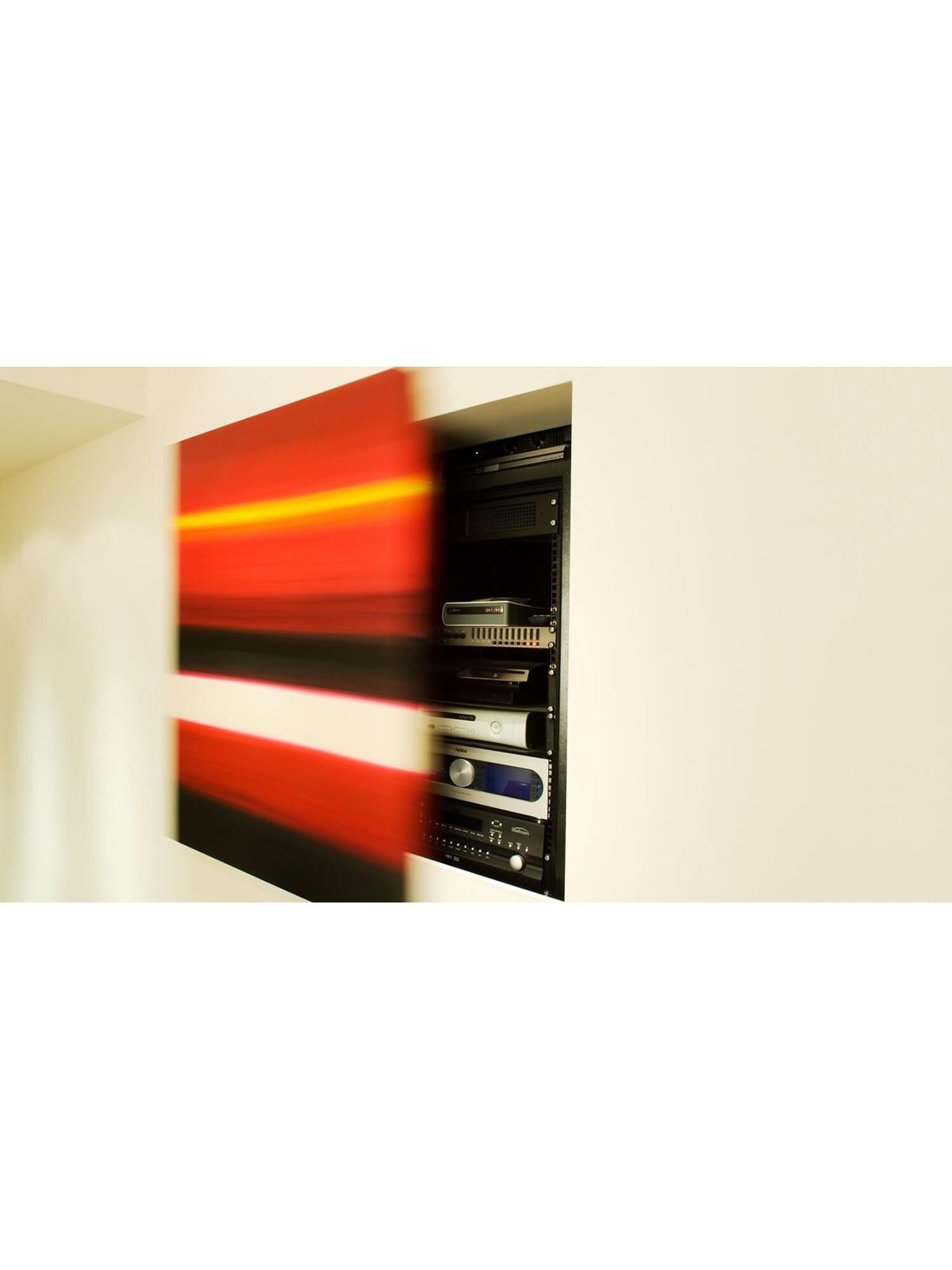

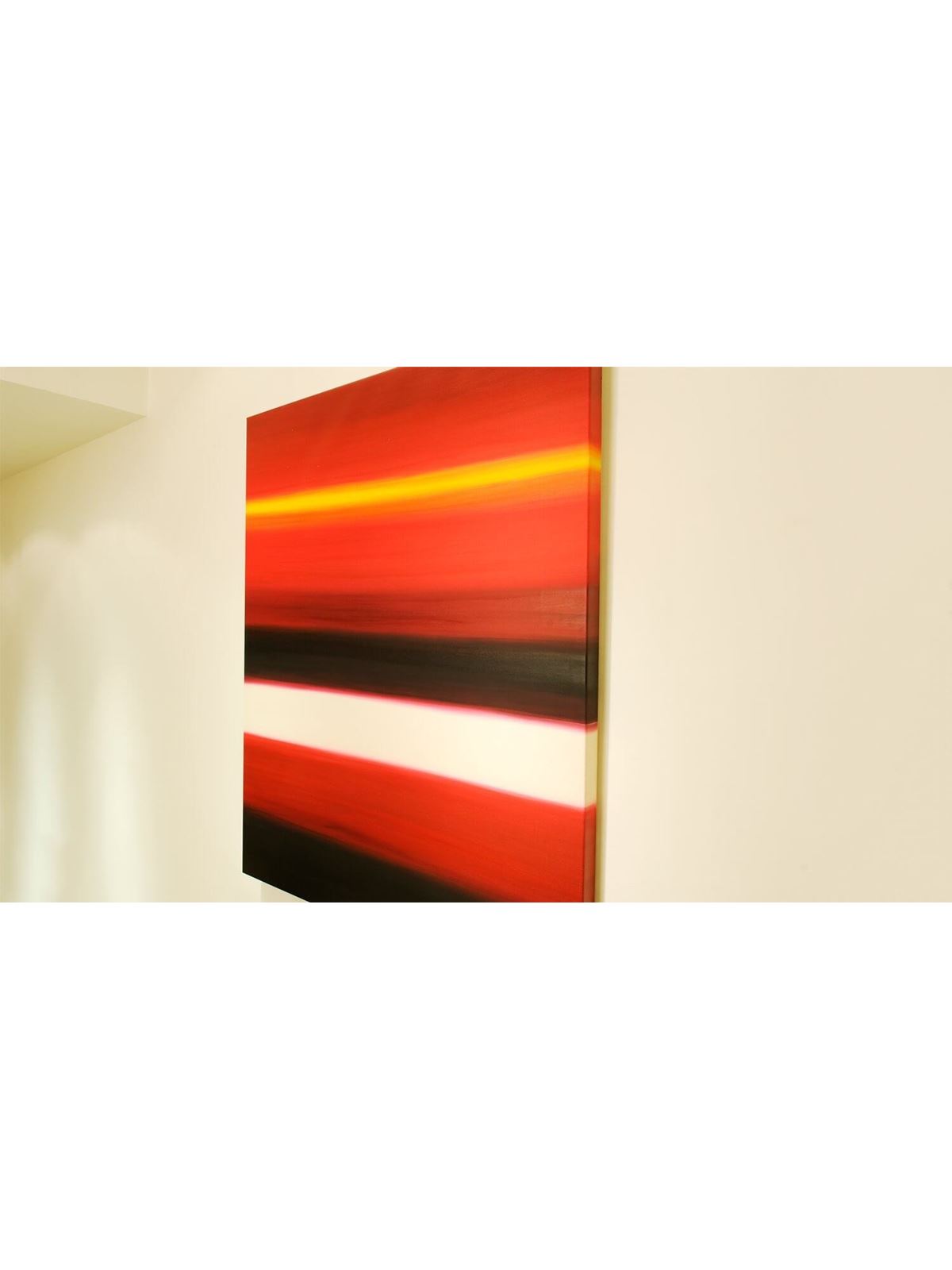

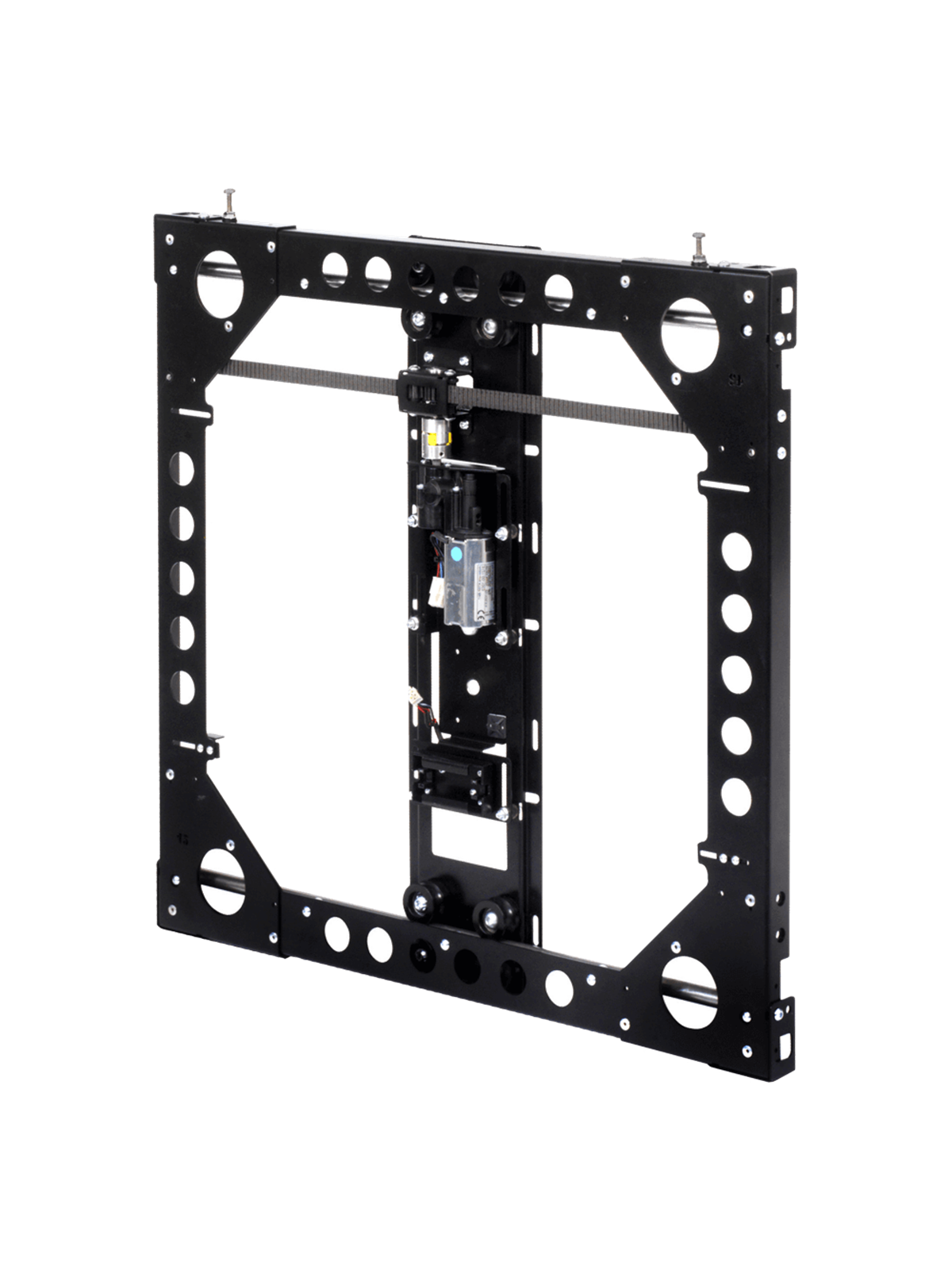

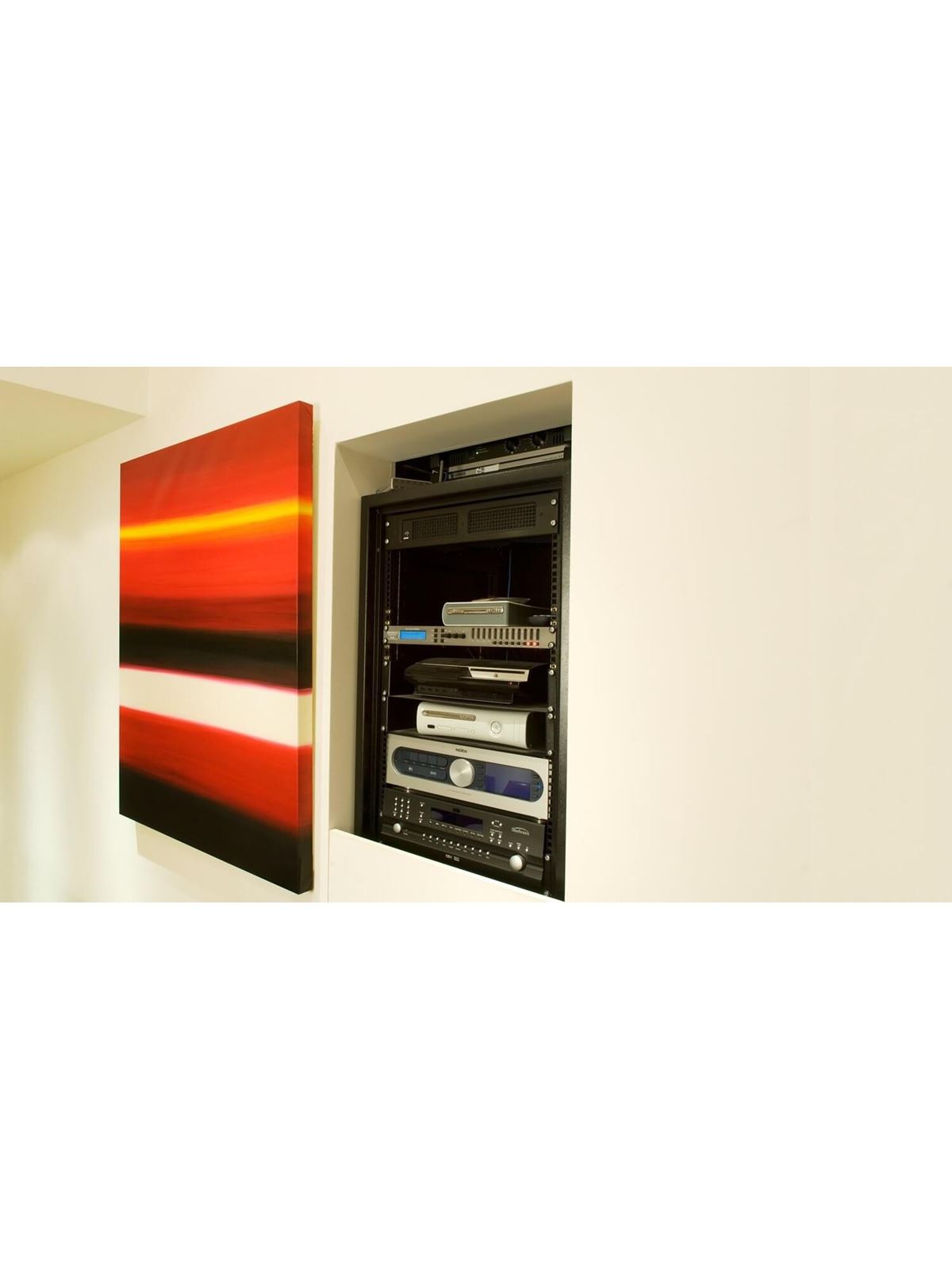

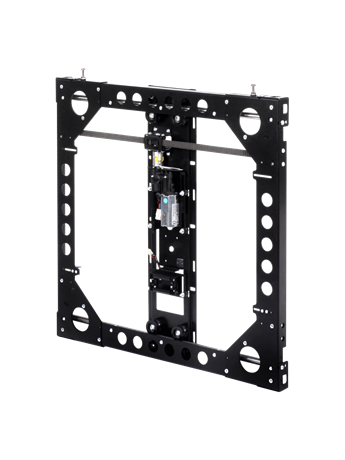

The Picture Side Mechanism is a horizontal moving panel mechanism that conceals a flat screen TV behind a picture or panel.
Ideal for when vertical height is not available, the Picture Side Mechanism drives a panel left or right to conceal and reveal the screen.
- Quiet and smooth action with a 'ramped' start and finish motion profile
- Surface mounted design for simplified installation
- Vibration isolated components
- Easy adjustment of mechanism end stops
|
PRODUCT CODE
|
PICSIDE1
|
PICSIDE2
|
PICSIDE3
|
PICSIDE-BESPOKE
|
|
CONTROL OPTIONS
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
|
DECIBEL RATING
|
47DB
|
47DB
|
47DB
|
VARIABLE
|
|
FINISH (CUSTOM
AVAILABLE)
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
|
MAX TRAVEL OF
PANEL
|
1184MM (46.61")
|
1435MM (56.49")
|
1690MM (66.53")
|
REQUIRED DISTANCE
|
|
MAX WEIGHT OF
PANEL
|
10KG (22LBS)
|
10KG (22LBS)
|
10KG (22LBS)
|
REQUIRED DISTANCE
|
|
MOVEMENT TYPE
|
MOTORISED
|
MOTORISED
|
MOTORISED
|
MOTORISED
|
|
POWER CONSUMPTION
|
110W
|
110W
|
110W
|
110W
|
|
POWER CONSUMPTION
(STANDBY)
|
3W
|
3W
|
3W
|
VARIABLE
|
|
POWER SUPPLY
|
240V OR 110V
|
240V OR 110V
|
240V OR 110V
|
240V OR 110V
|
£2,750.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
