Future Automation PICSPLIT Picture Split Mechanism

  •
  •

Description

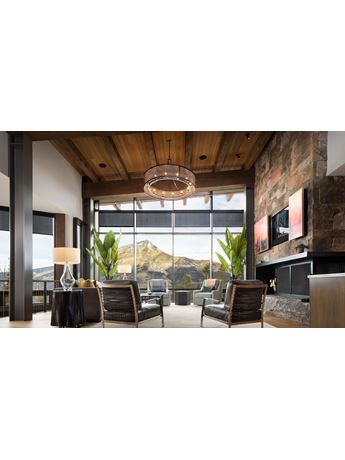

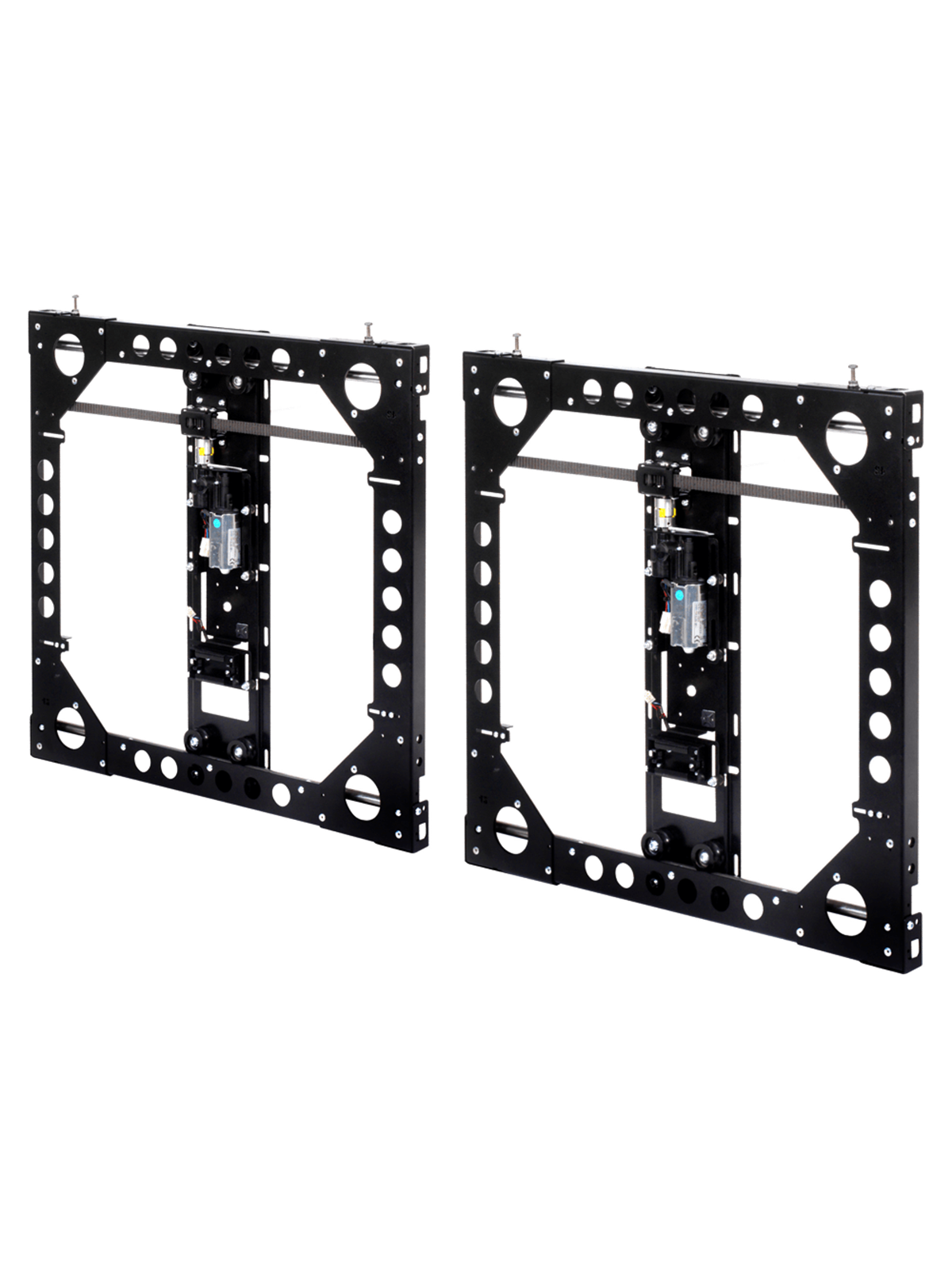

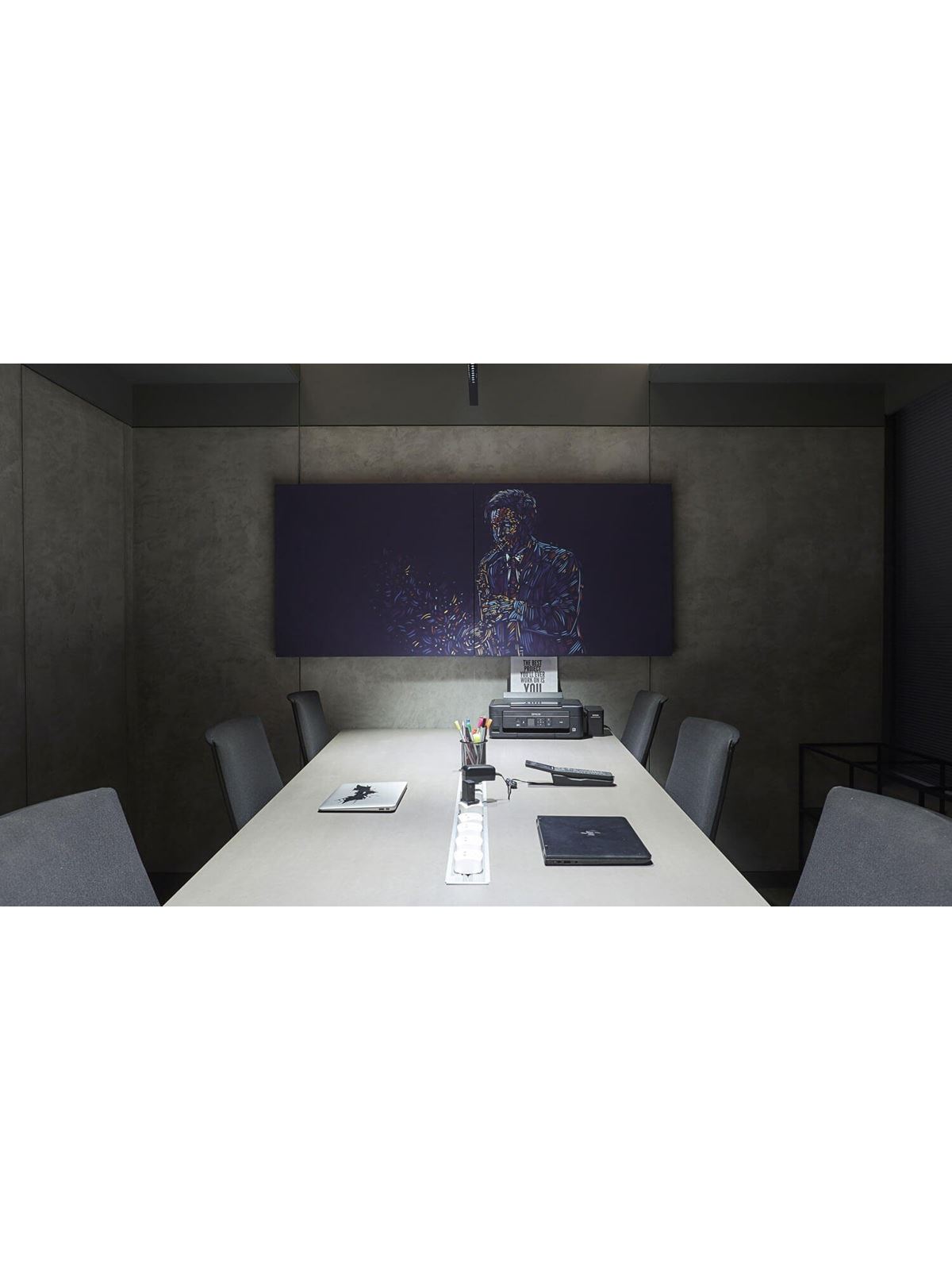

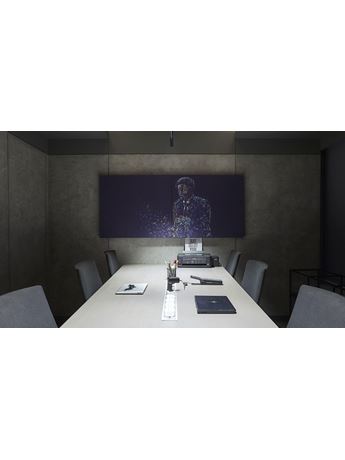

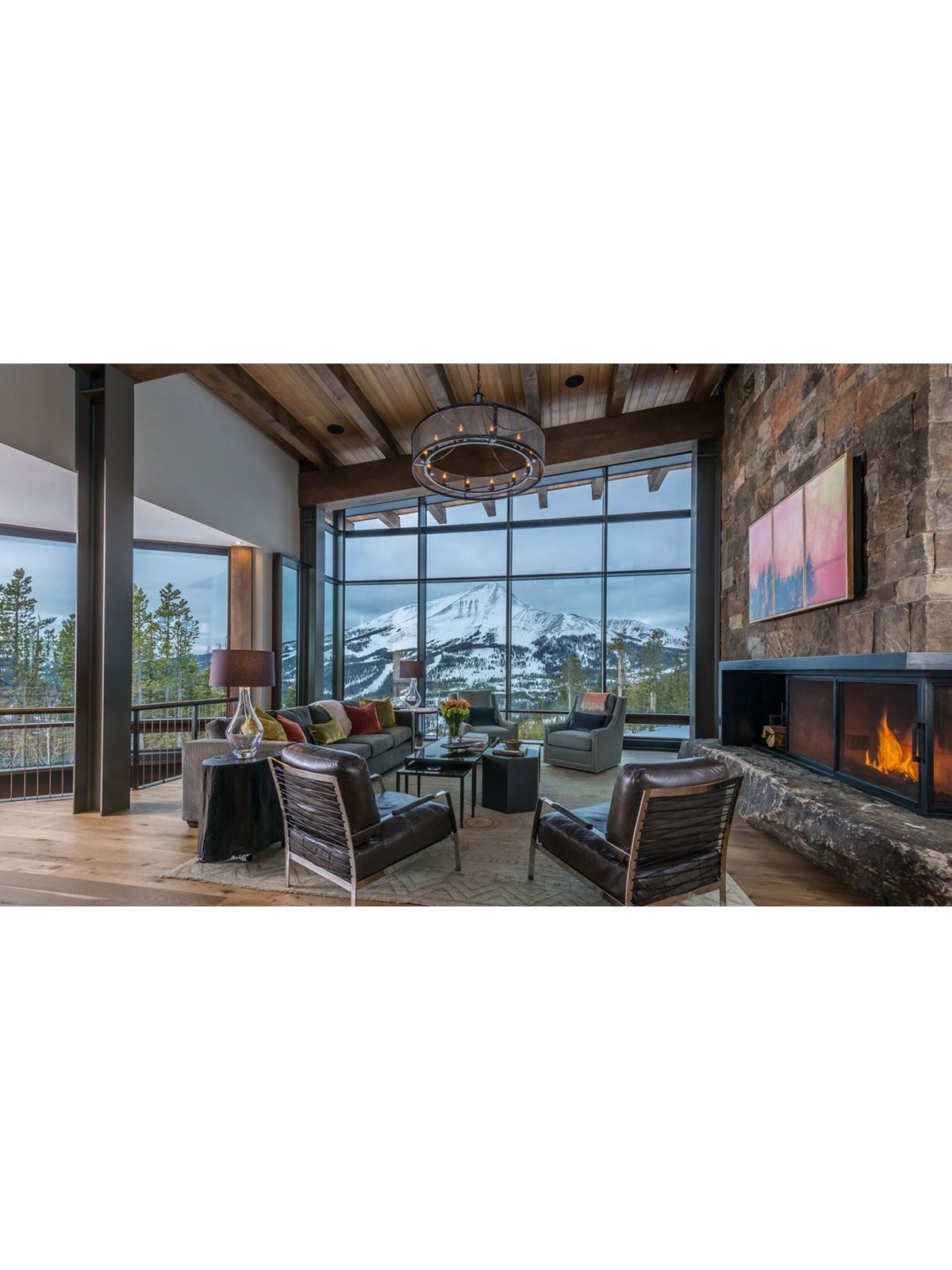

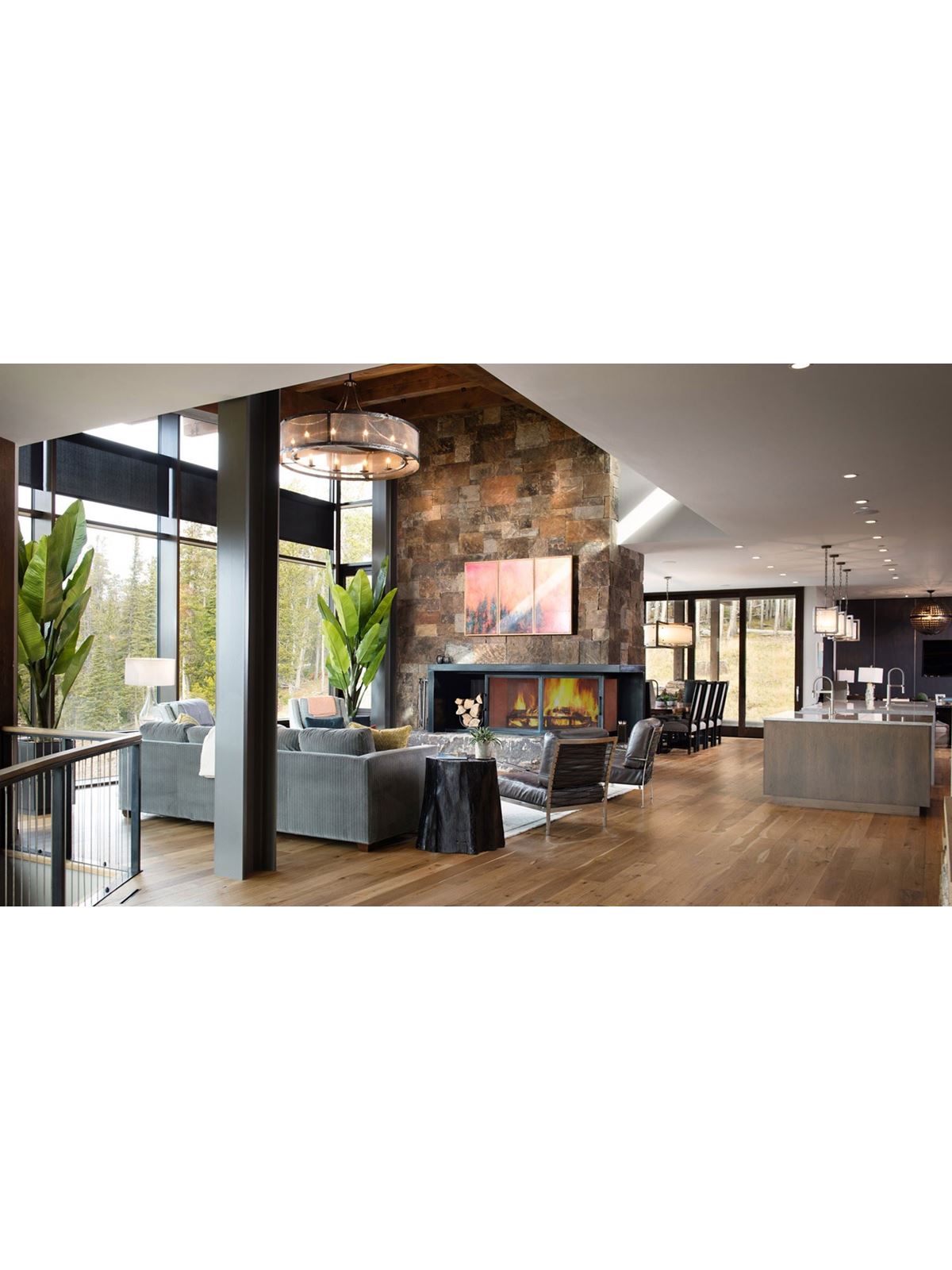

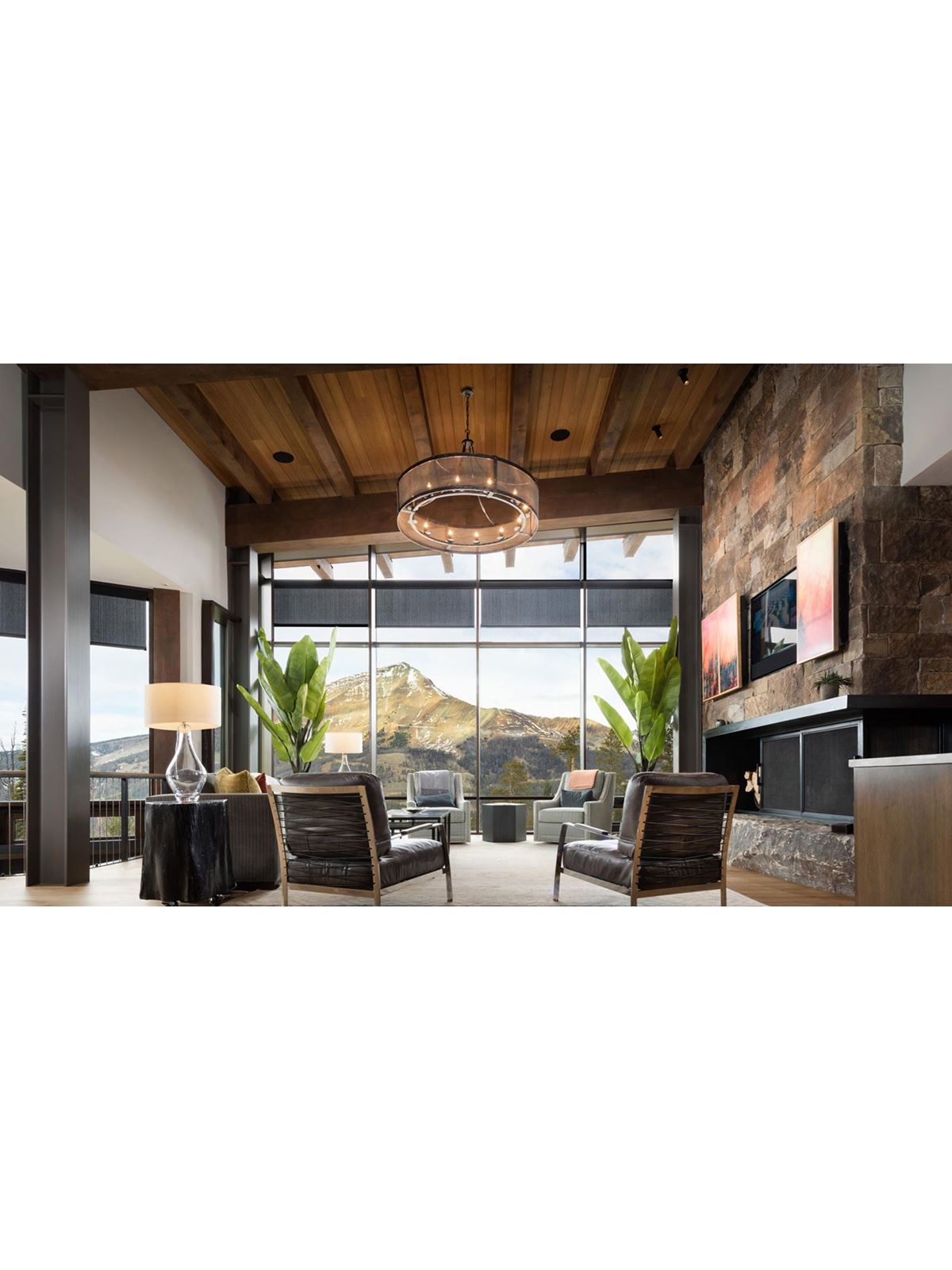

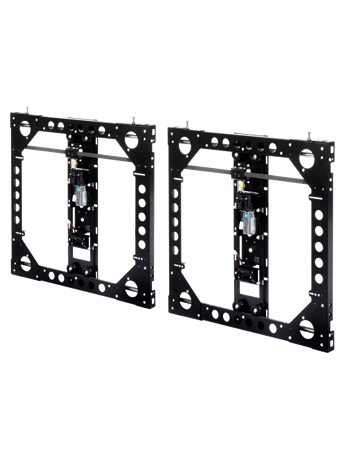

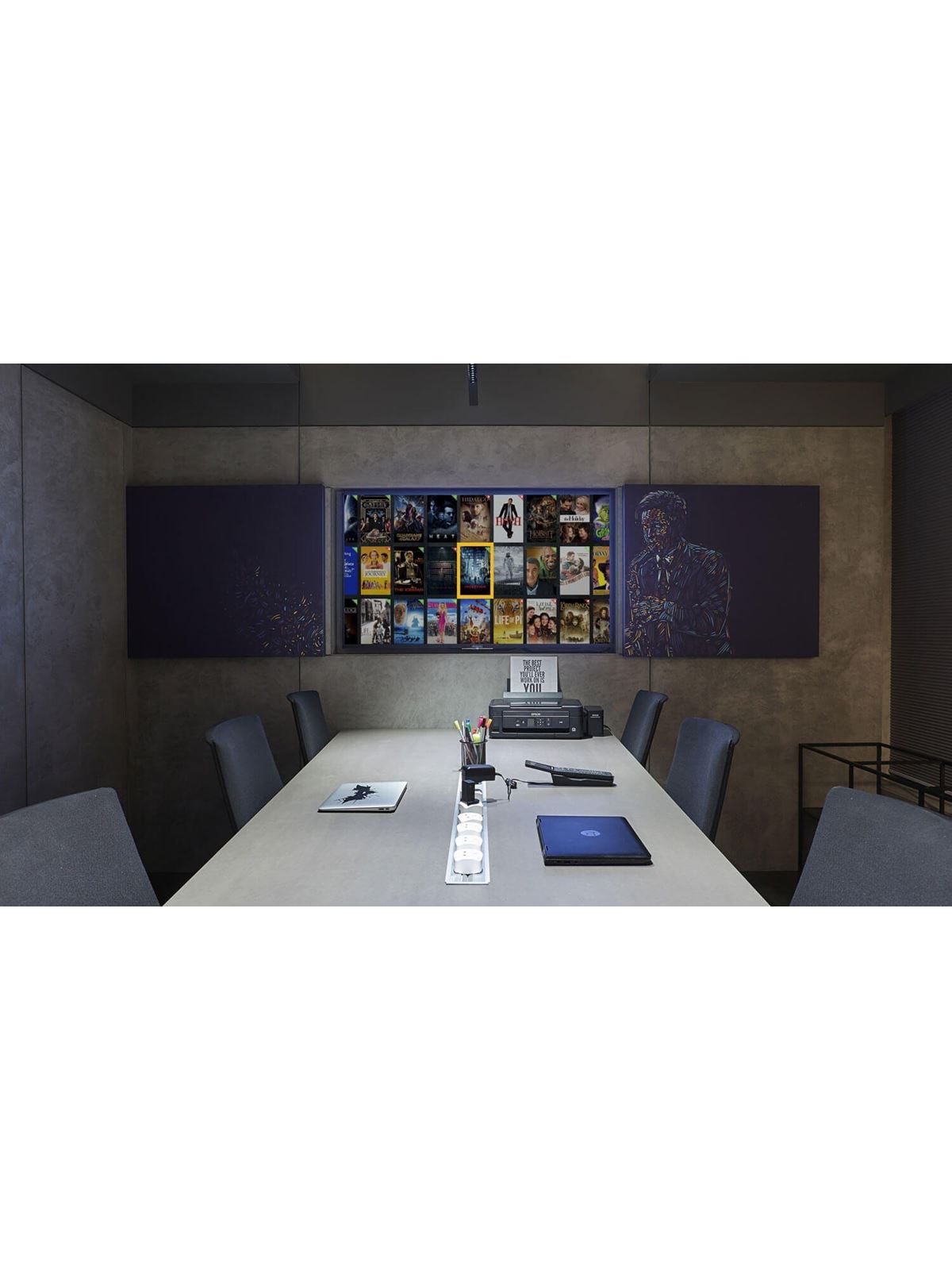

Our PIC-SPLIT Picture Split Mechanism allows a recessed screen to be concealed behind a pair of artwork panels and is an ideal alternative to our standard Picture Lift mechanism when vertical height is at a minimum.

The inbuilt motors quickly and quietly move the artwork panels apart to reveal the recessed screen behind while the intelligent control system keeps the movement of each panel synchronised at all times.

Our PIC-SPLIT mechanisms can be fitted with existing artwork or can be ordered with bespoke stretched canvases as part of our Canvas Printing Service

  • Quiet and smooth action with a 'ramped' start and finish motion profile
  • Surface mounted design for simplified installation
  • Vibration isolated components
  • Easy adjustment of mechanism end stops
  • Sophisticated electronics help prevent 'finger trapping' between panels
  • Intelligent electronics keep mechanisms synchronised at all times



Available in three standard sizes, our PIC-SPLIT Picture Split Mechanisms feature built in vibration isolating, which when combined their already smooth motion of the motors and a ramped start and finish speed, enable an elegant and seamless transition from artwork to television. The sophisticated electronics help prevent ‘finger trapping’ between panels, making the PIC-SPLIT suitable not only for corporate or commercial environments, but also residential installs. Bespoke size mechanisms are available for larger screens and our in house Canvas Printing Service is available to all dealers, offering bespoke made stretch canvases suitable for all our Moving Picture Mechanisms.


PRODUCT CODE

PICSPLIT1

PICSPLIT2

PICSPLIT3

PICSPLIT4

PICSPLIT-BESPOKE

CONTROL OPTIONS

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

DECIBEL RATING

47DB

47DB

47DB

47DB

VARIABLE

FINISH (CUSTOM AVAILABLE)

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

MAX RECESS WIDTH

1150MM (45.3")

1400MM (55.1")

1650MM (65")

1800MM (74.8")

VARIABLE

MAX WEIGHT OF PANEL

15KG (33LBS)

15KG (33LBS)

15KG (33LBS)

15KG (33LBS)

15KG (33LBS)

MOVEMENT TYPE

MOTORISED

MOTORISED

MOTORISED

MOTORISED

MOTORISED

POWER CONSUMPTION

110W

110W

110W

110W

VARIABLE

POWER CONSUMPTION (STANDBY)

3W

3W

3W

3W

VARIABLE

POWER SUPPLY

240V OR 110V

240V OR 110V

240V OR 110V

240V OR 110V

240V OR 110V

SHIPPING DIMENSIONS

TBC

96 x 26 x 85cm (37.79 x 10.23 x 33.46")

TBC

TBC

TBC

SHIPPING WEIGHT

TBC

54kg (119lbs)

TBC

TBC

TBC
















































£3,300.00 inc. VAT (1% Cashback available on all purchases via Debit Card)
£2,750.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
