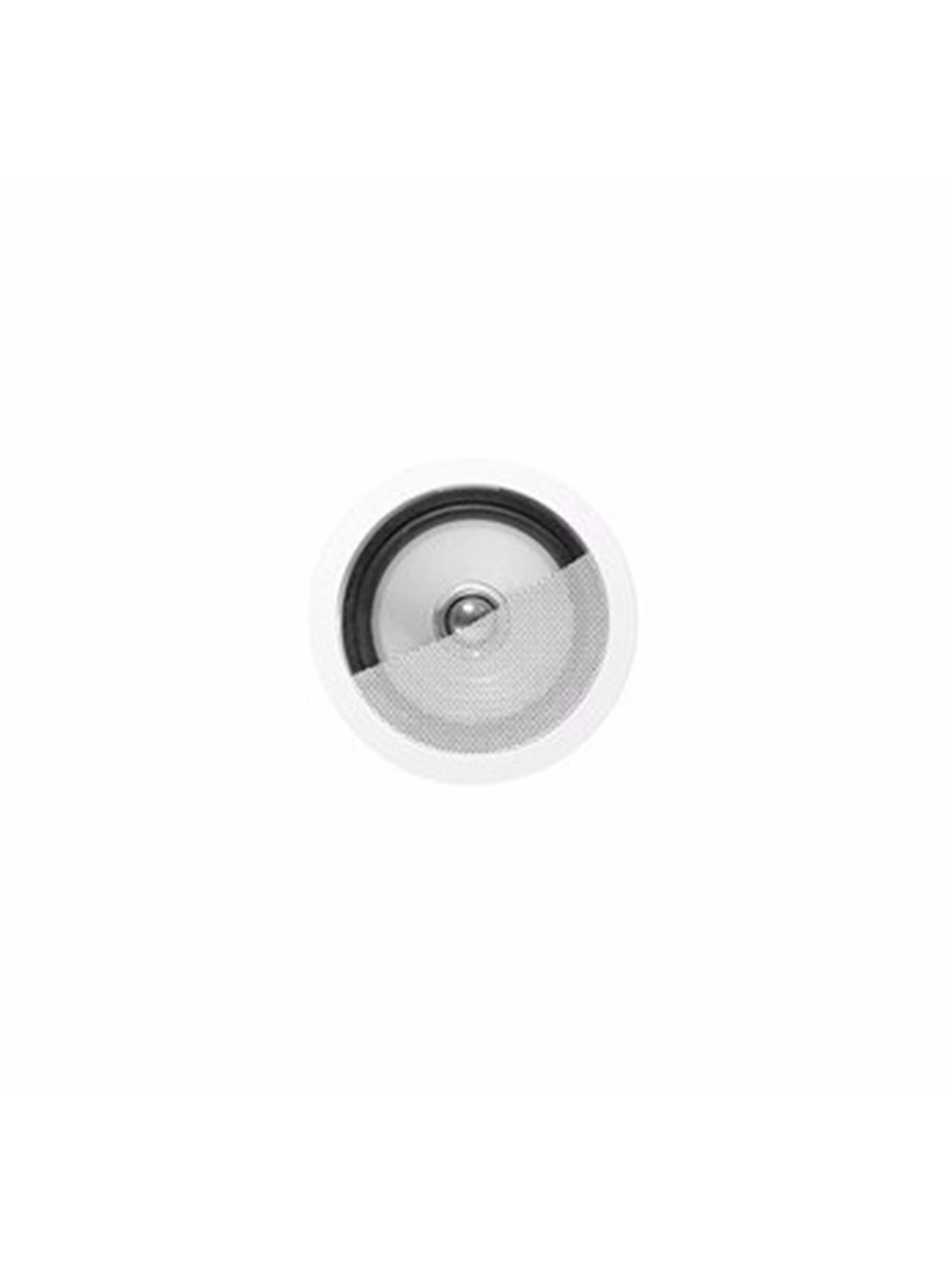

KEF Q Series 50W, 100mm Ultra Thin Bezel In Ceiling / Wall Speaker - Ci100QR


trade price available

Description
  • The popular Soundlight Series is yet another major innovation form KEF. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance, thanks to KEF’s patented Uni-Q’s exceptionally wide dispersion.
  • Features and Benefits
  • Purpose built for flush mounting into walls and ceilings these are the latest addition to the KEF Uni-Q Custom Installation series. Providing a compact solution to the problem of Hi-Fi quality sound from an in-wall/ceiling speaker, the Ci100QR consists of a polypropylene cone LF driver with the HF unit mounted at the acoustic centre of the LF unit. The bezel and grill can be painted to match the interior décor.
Applications
  • The Ci Series Ci 100QR is best suited for high quality music and speech reinforcement applications requiring hi-fi performance such as:
  • Multi Room systems, Home Theatre systems, Lounges, Bars, Boutiques, Boardrooms & Offices, Airports, Convention Centres, Hotels, Live Theatre/Concert Hall fill-in, Houses of Worship, Sports Arenas.
The Ci Series Ci 100QR consist of:
  • 1 X 19mm aluminium dome tweeter 100mm white polyproylene cone with double neo compound magnet system
  • Performance of the Ci 100QR shall meet or exceed the following criteria: frequency response 1 metre on-axis with swept sinewave shall be 120Hz to 22kHz , sensitivity shall be at least 86dB for 2.83V@1m. The 2.83V@1m. The driver impedance shall be 8 ohms

Specification

Product

Ci100QR

Design

Open backed or 0.71 litre back-can (supplied)

Drive units

19mm aluminium dome, 100mm white polypropylene cone with double neo compound magnet system

Crossover frequency protection circuit

3 kHz, HF unit

Sensitivity (2.83V/1m)

86 dB

Frequency response

110Hz - 27kHz (with B/C)

80Hz - 27kHz (without B/C)

Impedance power handling

4 Ohms, 50 watts RMS

Overall diameter can depth

127mm

151mm with B/C

104mm without B/C

Overall cut-out diameter

118m

£100.00 inc. VAT (1% Cashback available on all purchases via Debit Card)
£83.33 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
