Description

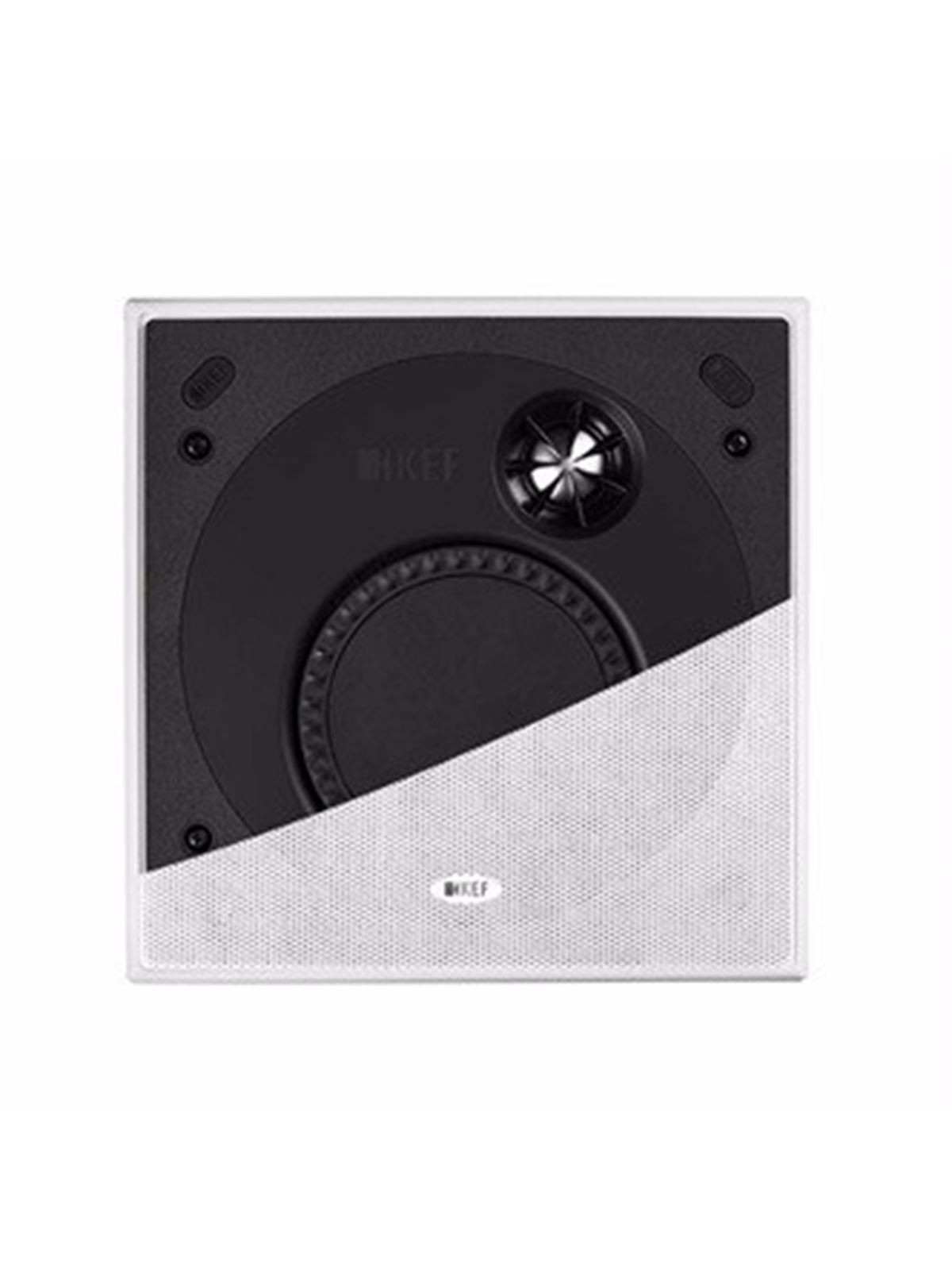

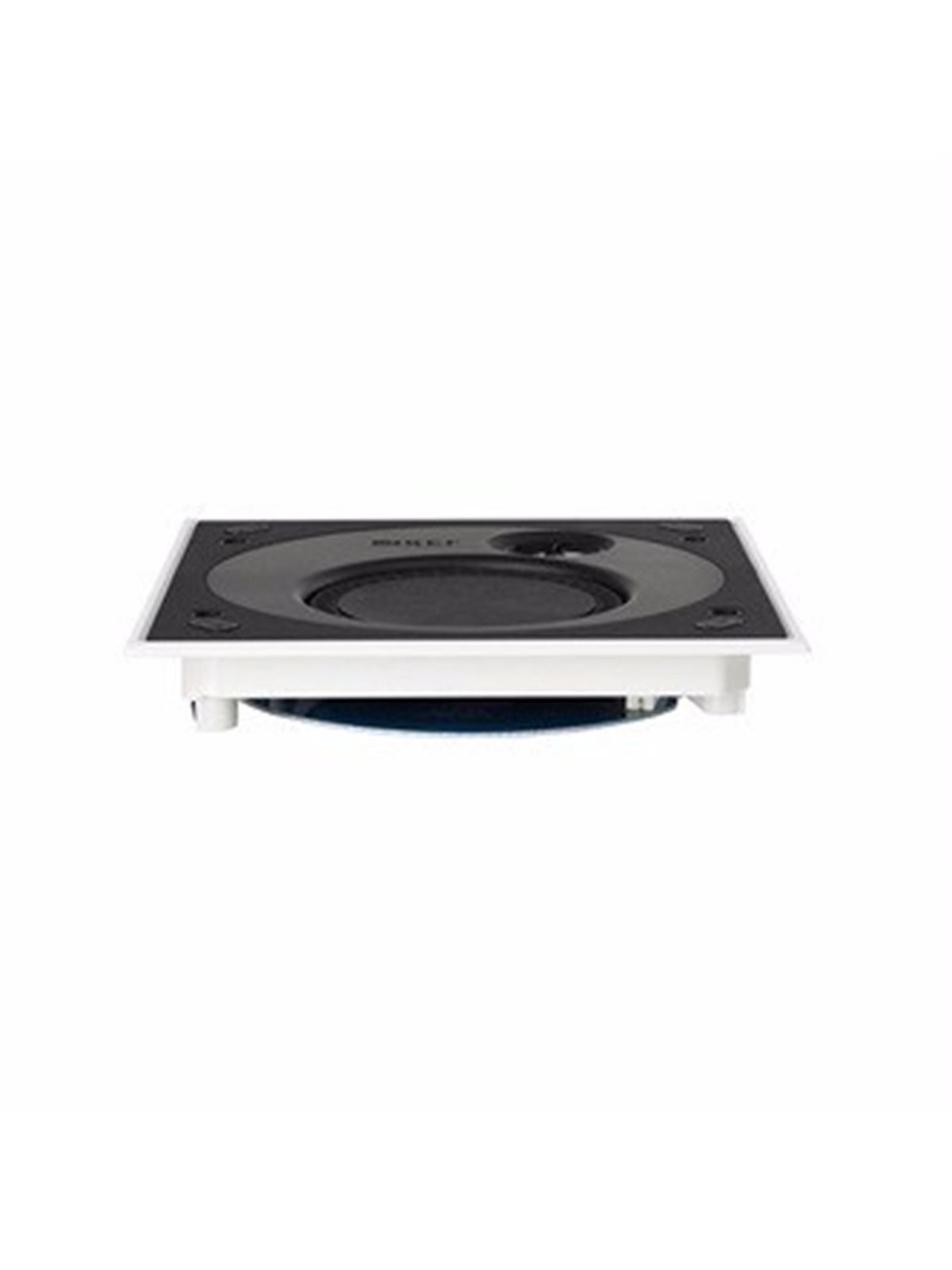

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium. Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments and super-premium motor yachts.
Key Features
- <36mm mounting depth allows fitment to very restricted cavities
- Ultra-low profile LF unit with excellent bass extension
- Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
- Rigid flat diaphragm assures clean upper bass and mid-range response
- Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
- Fast, versatile installation on virtually any surface via dogleg
Specification
Nominal Impedance: 8Ω
Sensitivity (2.83V/ 1m): 87dB (2.83V/ 1m)
Frequency Response +/-6dB 2pi/open-backed: 110Hz - 24Hz (+/-6dB) open-backed
Crossover frequency: 1.7Hz
Drive Units:
- LF: 115mm (4.5in Dual Layer)
- HF: 25mm (1in.)
Recommended Amplifier Power: 10-100W
Net Weight: 1.05kg
Product external dimensions
Diameter Ø: 222.8 (8.77in.)
Depth: 41mm (1.61in.)
Cut-out dimension
Diameter Ø:194mm (7.64in.)
Mounting depth from surface (Product Only): 36mm (1 7/16in.)
Optional rough in frame: RIF160S
£225.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
