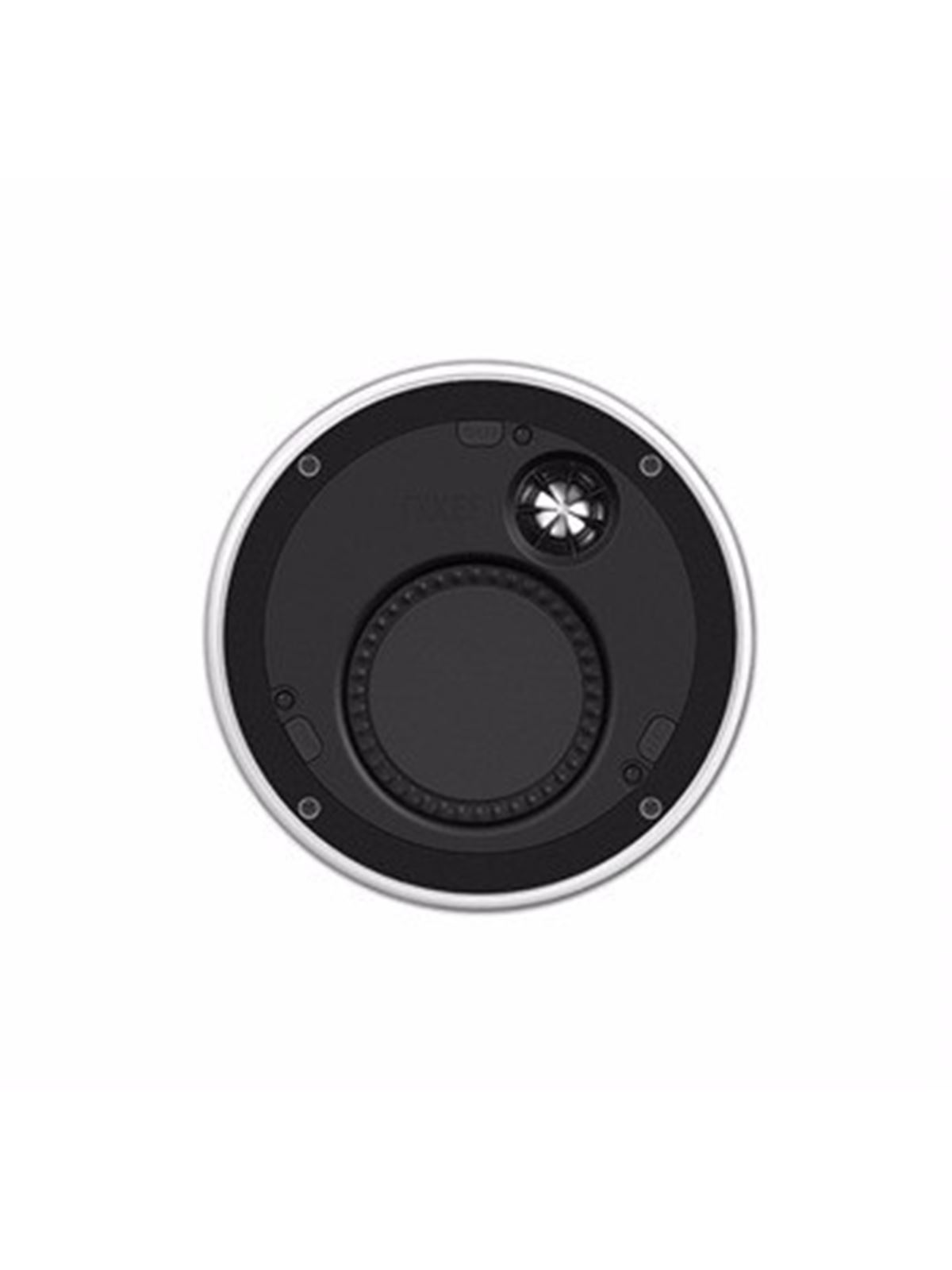

KEF T Series 100W, 115mm Ultra Thin Bezel In Ceiling Super Slim Speaker - CI160TR

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.



• <36mm mounting depth allows fitment to very restricted cavities

• Ultra-low profile LF unit with excellent bass extension

• Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion

• Rigid flat diaphragm assures clean upper bass and mid-range response

• Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor

• Fast, versatile installation on virtually any surface via dogleg or direct screw fastening

Nominal Impedance: 8Ω

Sensitivity (2.83V/ 1m): 87dB

Frequency response (±6dB) open-backed: 110Hz-24kHz

Crossover Frequency: 1.7kHz

LF: 115mm (4.5 in.) dual layer MF

HF: 25mm (1 in.) aluminium HF

Recommended Amplifier Power: 10-100W

Diameter: Φ234.6mm (Φ9.24 in.)

Cut-out dimensions: Φ196mm (Φ7.71 in.)

Net Weight: 1 kg

Mounting depth from surface: 36mm (1.42 in.)

Minimum wall thickness: 10mm (0.39 in.)

Optional rough in frame: RIF160R

Optional rear enclosure: RNC160R
