Description

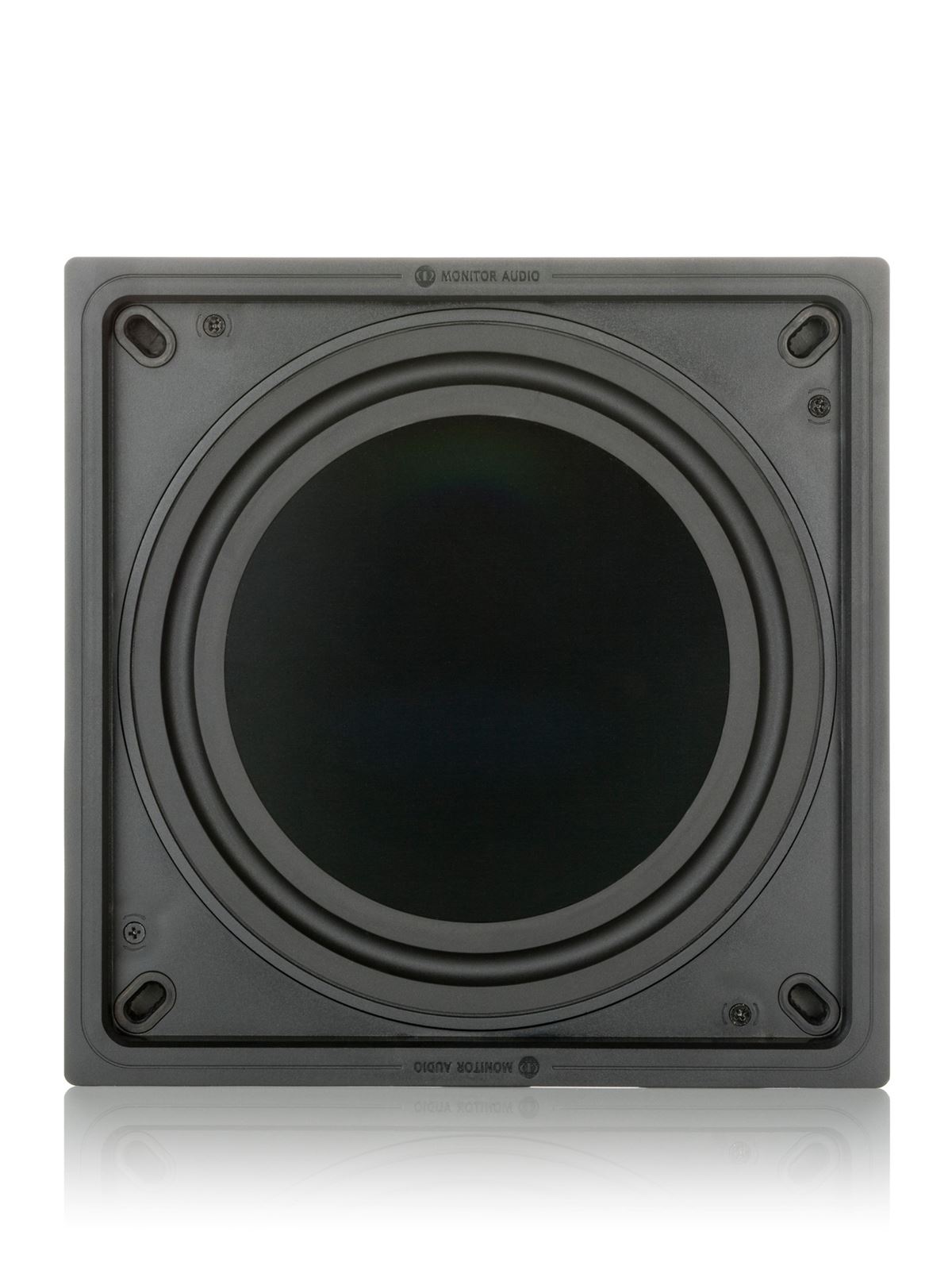

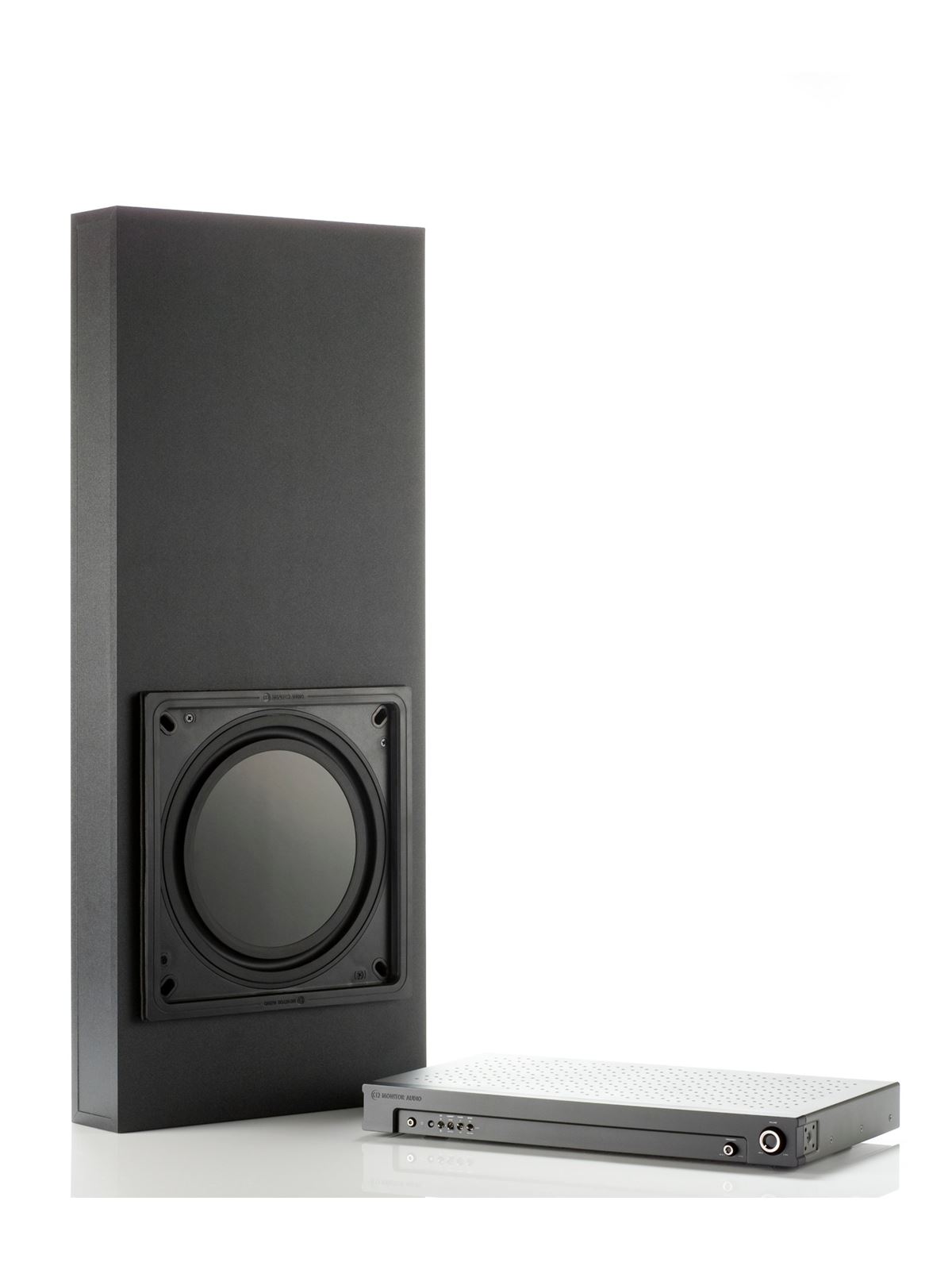

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10mm (3/8”) RDT®material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
Technology
- Rigid Die-cast chassis/basket
- Large vented pole design to reduce power compression, lower distortion and improved power handling
- High tech RDT flat ‘sandwich’ cone technology
- High quality gold plated ‘push’ type terminal – for easy installation
- 8 ohm impedance
- 50mm diameter voice coil with black anodised former –Improves convection cooling effects
- +/- 10mm of excursion – results in controlled bass at low frequencies and delivers high SPL

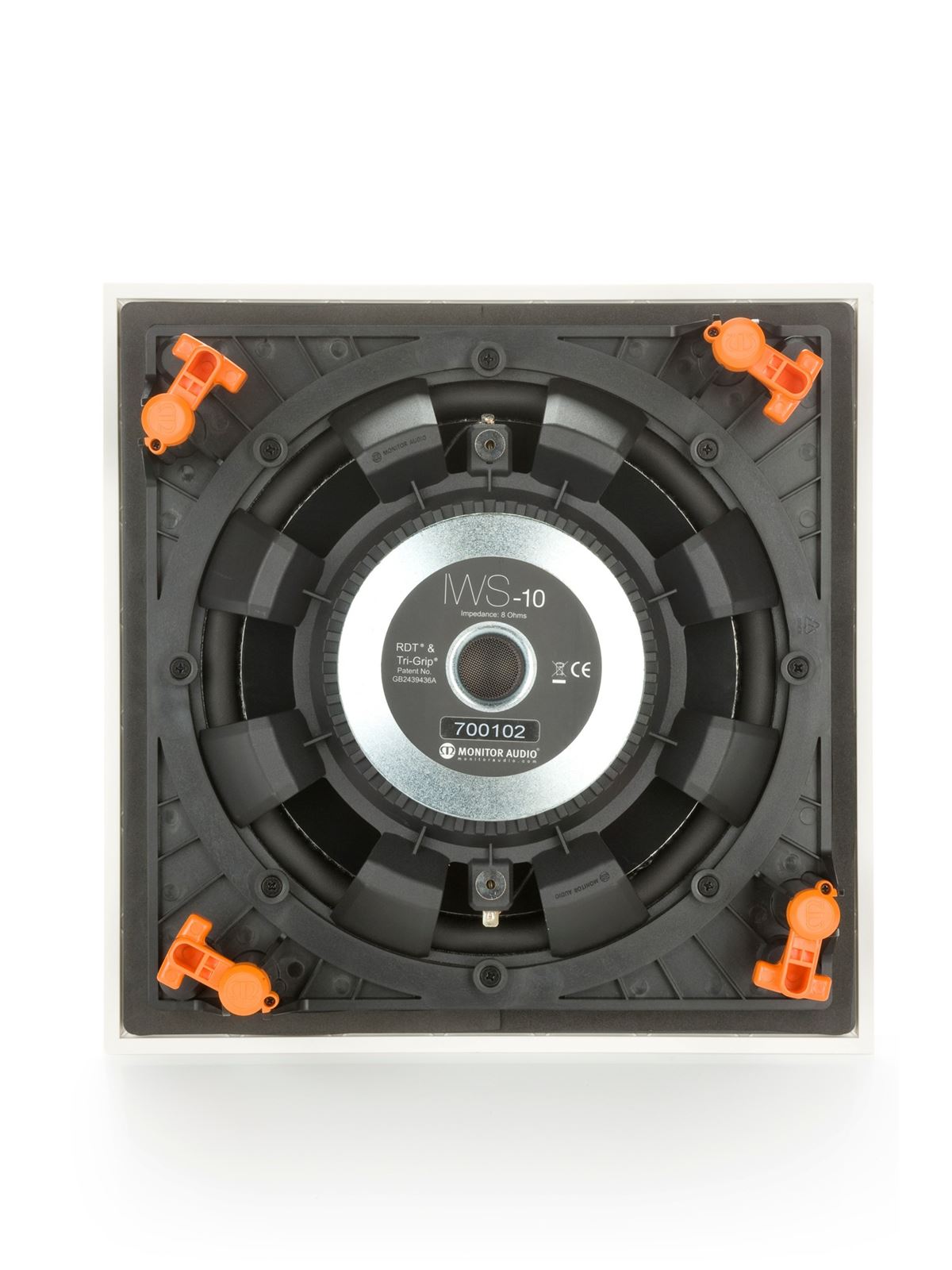

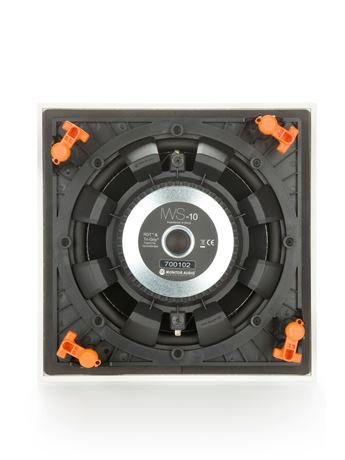

- Patented Tri-Grip fixing system

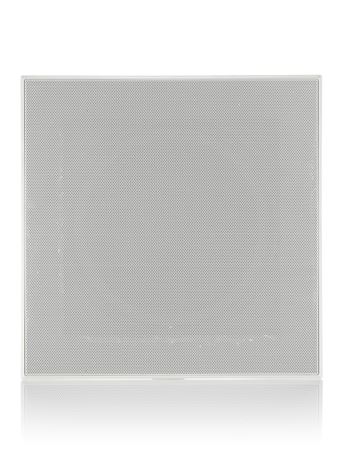

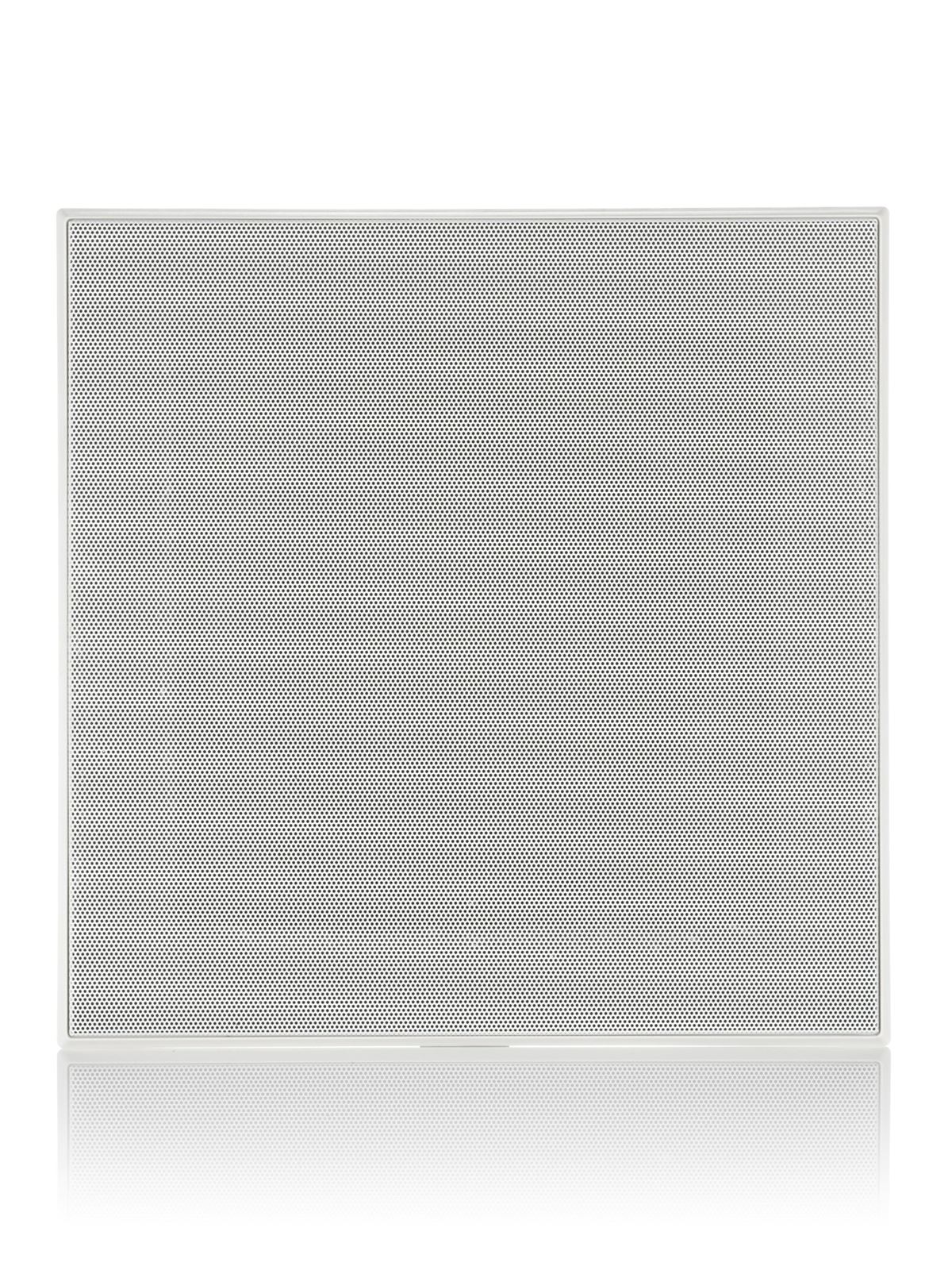

- Trim-less, low profile, paintable grille
Specification
Frequency Response: 28 Hz – 120 Hz (when mounted in optimum enclosure)
Power Handling (RMS): 150 W
Mounting Depth: 89.98 mm (3 1/2 inches)
Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)
Impedance (Nominal): 8 Ohms
Sensitivity (1W@1M): 86 dB
Maximum SPL (Partnered with IWA-250) Single unit: 109.8 dB; Pair 115.8 dB
Overall Dimensions (H x W x D): 302 x 302 x 92.28 mm 117/8 x 117/8 x 35/8 Inches

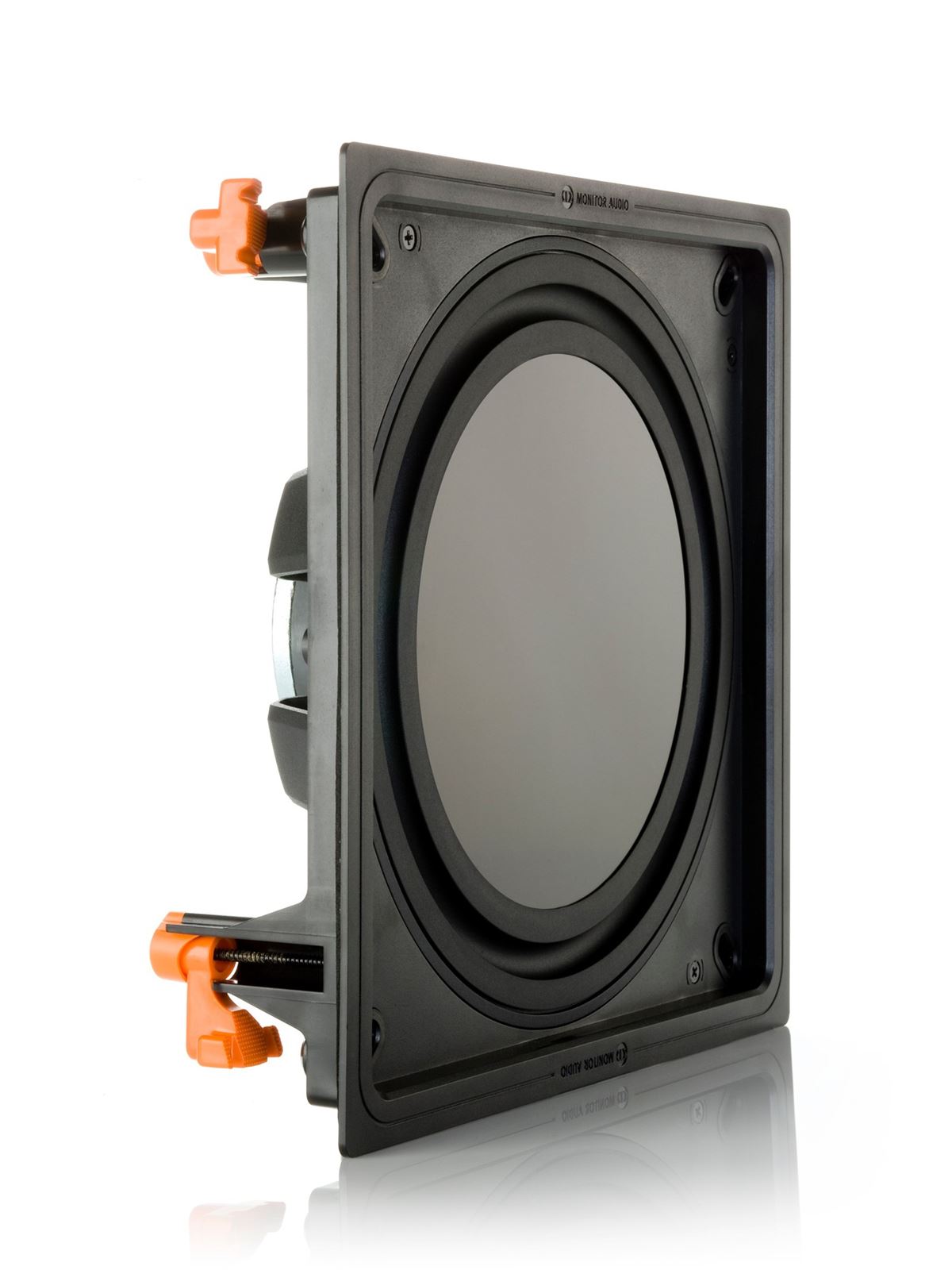

Fixing Type: 4 position Tri-Grip® dog leg fixings
Overall Dimensions:(including grille)(HxW): 314.21 x 314.21 x 100.78 mm 123/8 x 123/8 x 315/16 inches
Adjustment Controls: HF Level Switch (+3dB / 0dB / -3dB)
MF Level Switch: ( +3dB / 0dB / -3dB ) Boundary Compensation Switch
Cut-Out Hole Dimensions: 280 x 280 mm(11 x 11 inches)
Connection: Gold plated "push" type terminal
This item is not available as “add to cart”, due to either manufacturer restrictions or the product requiring professional setup, therefore we offer an installation and setup service in London & Surrounding areas, depending on the products required and the value of your order we can offer Free Installation services.
