Monitor Audio 150W 3 Way Platinum In-Ceiling Speaker - Platinum In-Ceiling II (PLIC2)

 Description

The Platinum II range has expanded to include a design and installation friendly in-ceiling speaker that offers unsurpassed levels of performance, delivering sublime audio accuracy. Designed for installation in both new build and retrofit installations, the PLIC II in-ceiling speaker should be the ‘go to’ product for home technology professionals, architects, interior designers and end users.

The latest product to join the Platinum II range, the PLIC II in-ceiling speaker, meets the demands put on speaker manufacturers by providing a winning combination of high quality sound, ease of installation and discreet design.

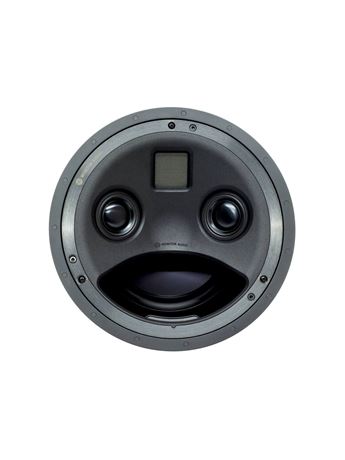

The Monitor Audio PLIC II in-ceiling speaker features an 8" long throw bass driver with Rigid Diaphragm Technology (RDT II) cone technology to provide immensely powerful bass lines. This is achieved by the RDT cone reacting to an audio signal with lightning fast precision without deformation. To provide the listener with a uniform frequency spectrum when the speaker is played at higher frequencies, additional dual mid-range drivers that feature c-cam cone technology and Monitor Audio’s Micro Pleated Diaphragm (MPD) transducer are mounted on a rigid aluminium baffle and directed towards the listening zone provide uniform mid and high frequency dispersion.

All PLIC II drivers employ a heavy duty motor system, which deploys an under-hung motor assembly to ensure the coil always remains in the gap, even when driven hard. The addition of copper ‘shorting’ rings greatly improves magnetic linearity and lowers intermodulation distortion, resulting in crisp and clear audio delivery. A world first for an in-ceiling speaker!

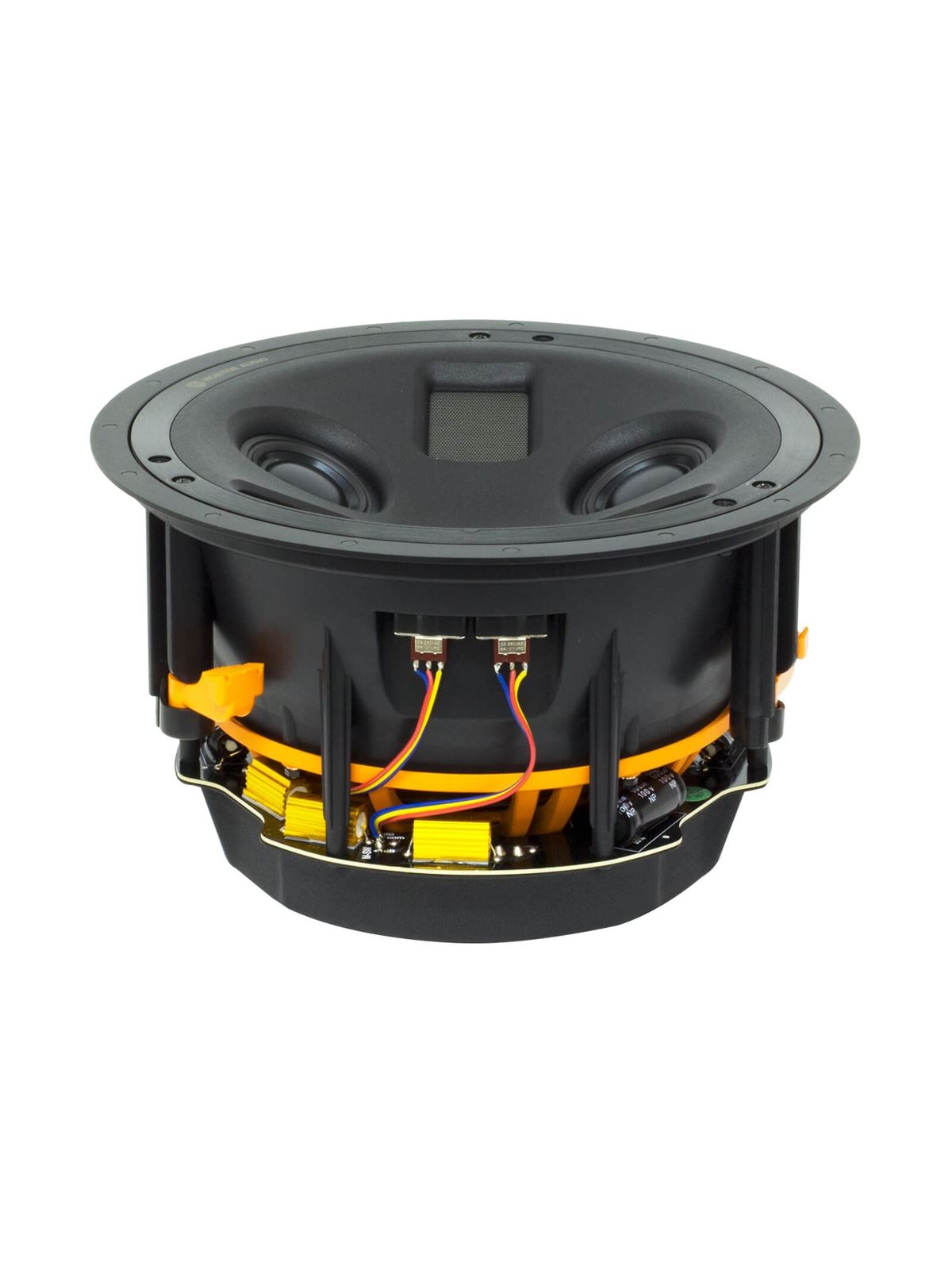

Designed for installation in both new build and retrofit projects, the PLIC II in-ceiling speaker features Monitor Audio’s unique Tri-Grip fixing system. This 3-position 'dog leg' style fixing provides a greater contact surface area than other types. This system, combined with the magnetic grille, saves the installer both time and money by speeding up the speaker fitting process.

To ensure controlled audio performance, Monitor Audio has designed an MDF back box with pre-determined air volume of 24 L. The rigid box is available with pre-loaded internal damping material to provide the best possible sound absorption and reduce standing waves.

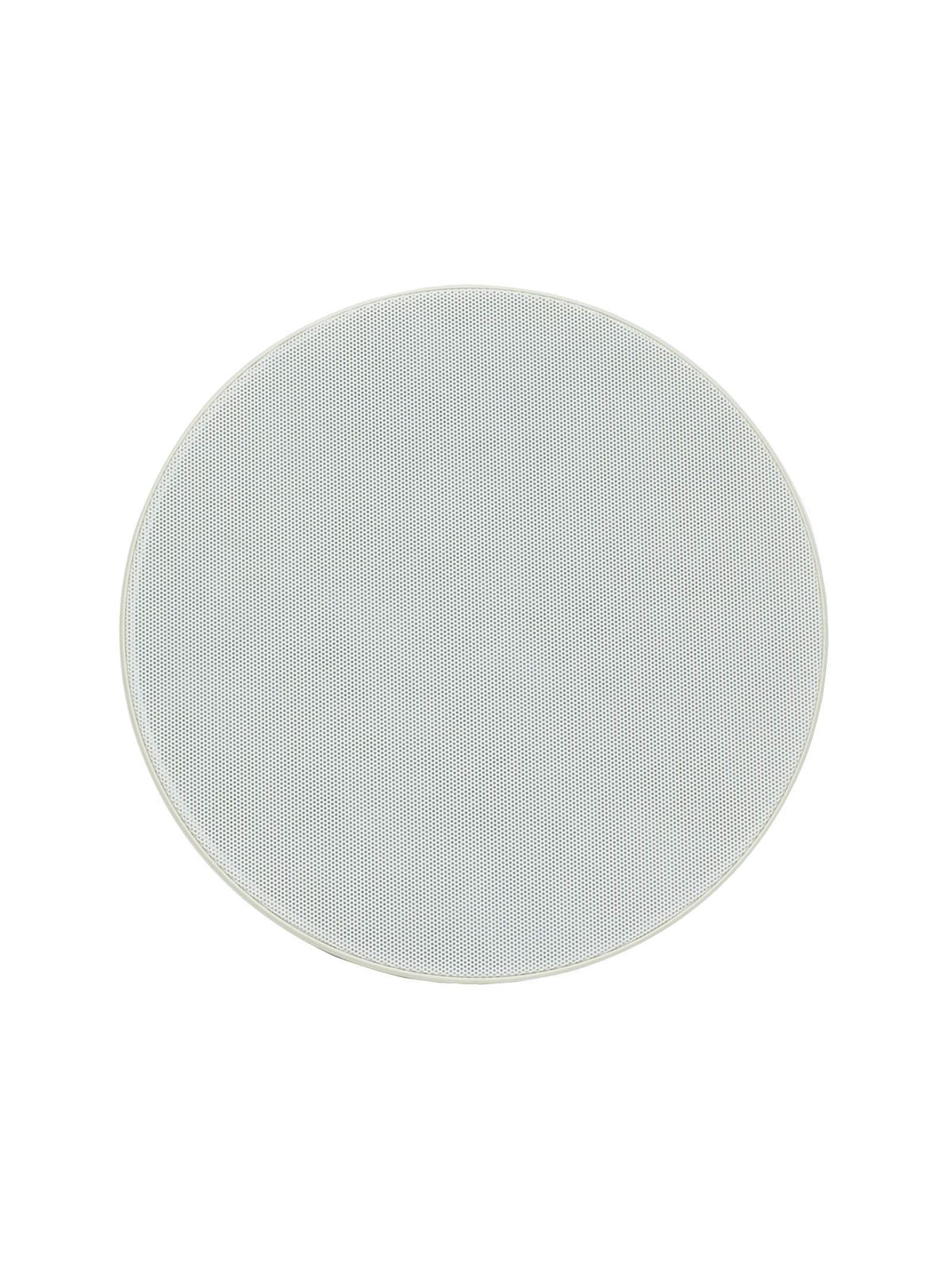

To satisfy the interior designer and end user, the circular grille can appear almost invisible, by being painted to match the room décor. Monitor Audio also offers a square option to match lighting fixtures and ventilation.

Optional square grille can be used with this model.

Technology

• 2 x 6 1/2" RDT®II bass drivers
• 4" RDT II mid-range driver
• MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
• New patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
• Bespoke speaker terminals and footings
• Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
• Bolt through drivers: clearer sound and cleaner aesthetics
• Rigid cabinet construction made from 25mm MDF with steel back
• Extensive internal bracing using thick MDF cross bracing techniques
• ARC baffle construction for ultimate rigidity and damping properties
• Rotating mid/H.F housing to provide optimum directivity pattern for horizontal or vertical installation
• Mid-range and HF level adjustment switches (+1/0/-1) dB
• Highest quality crossover design utilizing metalized polypropylene capacitors and low loss inductors
• Patented Tri-Grip dog leg fixing provides ultimate security, ease of installation and servicing
• Magnetic trimless grille.

Specification

• 1 x 8" Long-throw RDT II Bass Driver
• 2 x 2" c-cam mid-Range Drivers
• 1 x MPD high frequency transducer
