Monitor Audio Controlled Performance 150W, 2x 6" & 4x 4" In Wall Speaker - CP-IW260X

Description

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

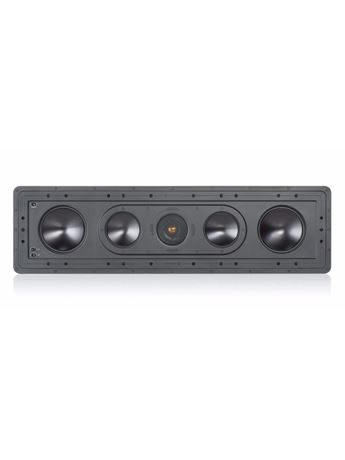

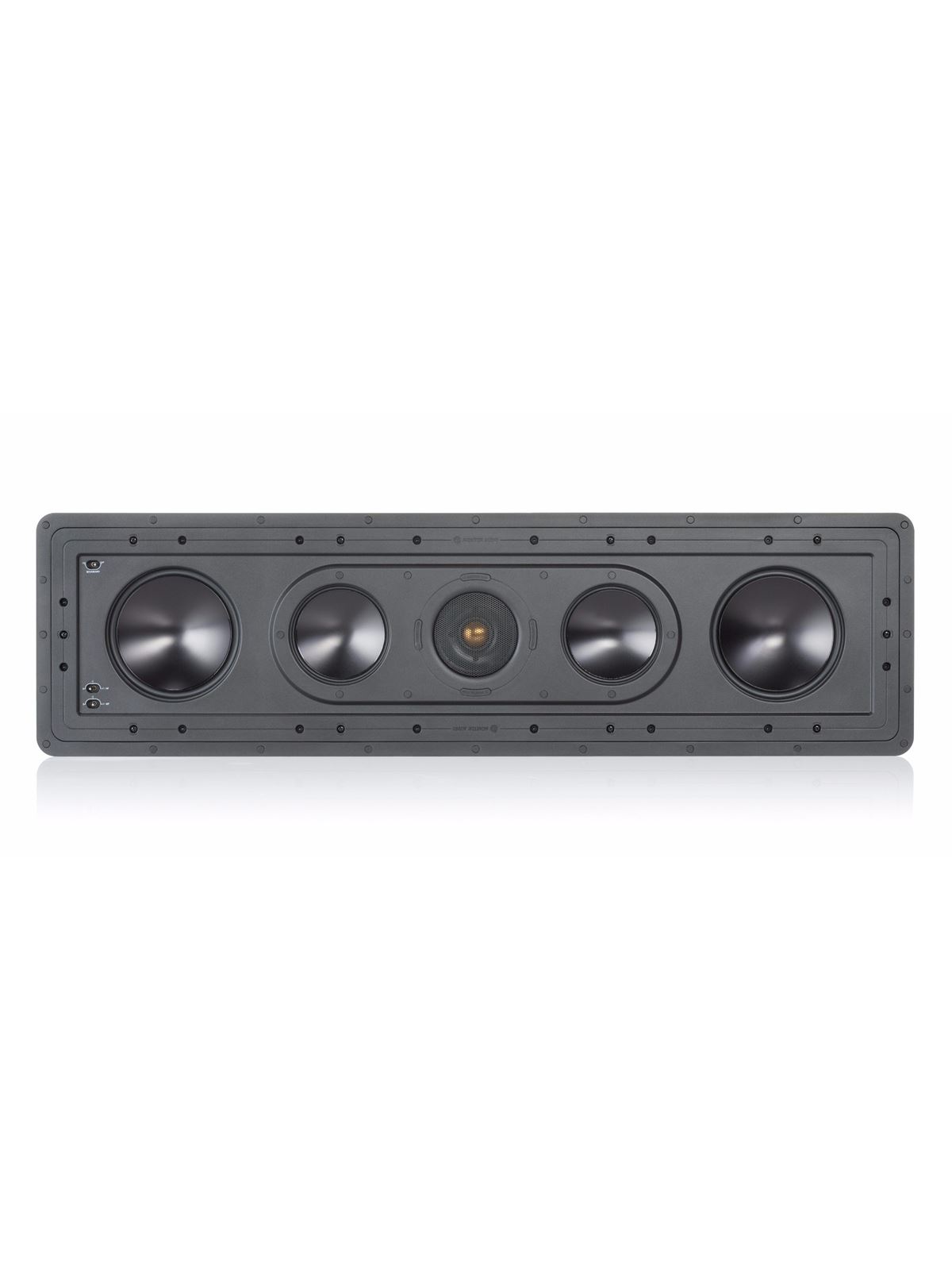

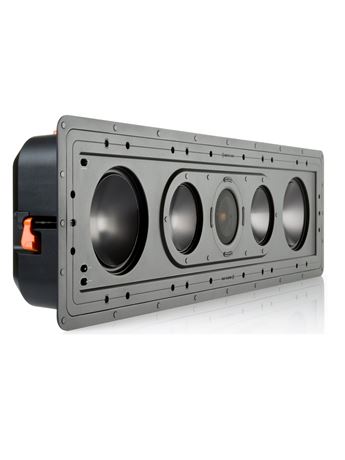

The CP-IW260X features Monitor Audio’s signature c-cam® (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5” bass drivers and twin 4” mids astride a gold dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

Technology

Dual 4” c-cam® mid-range drivers – featuring underhung voice coil

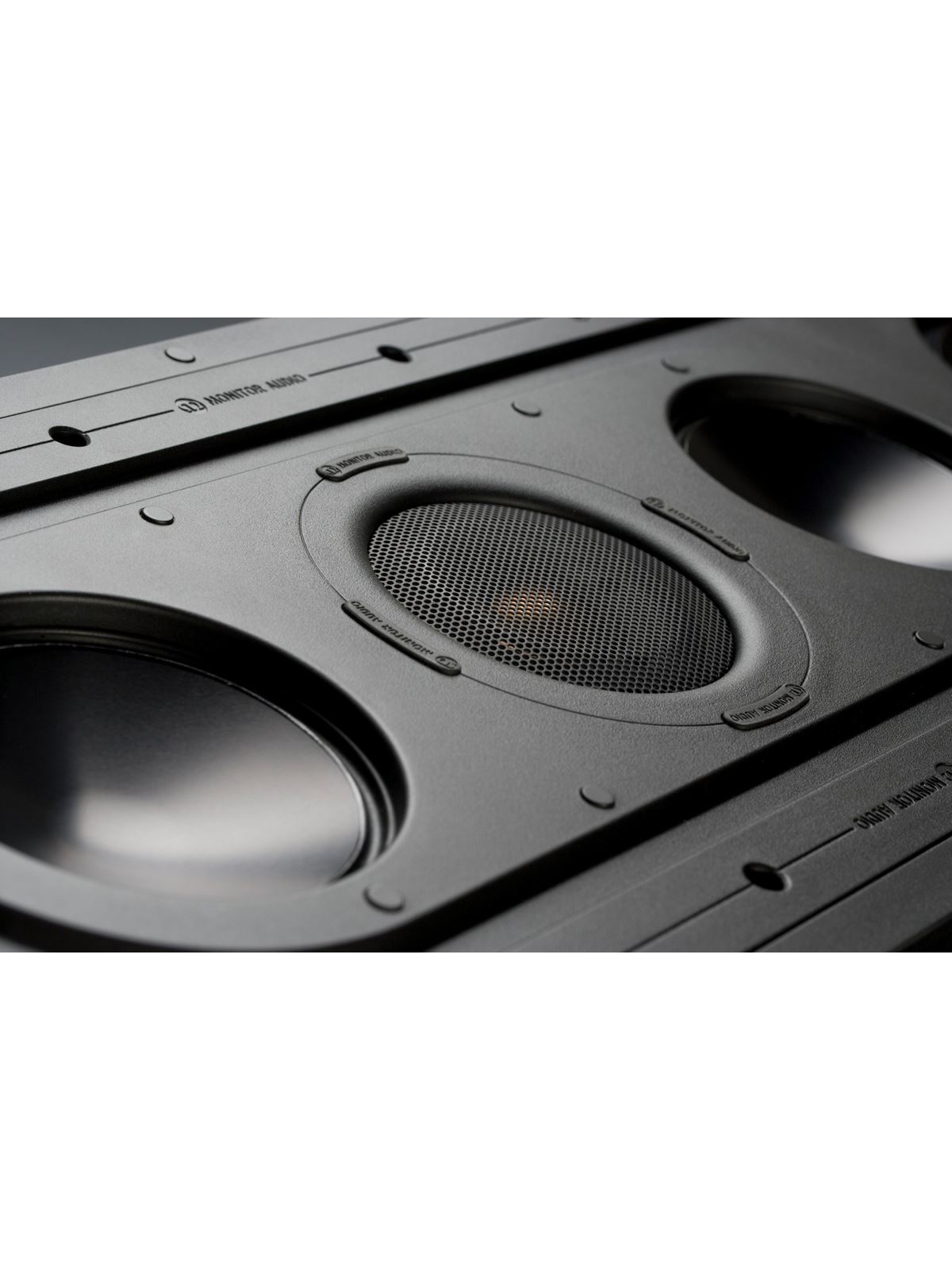

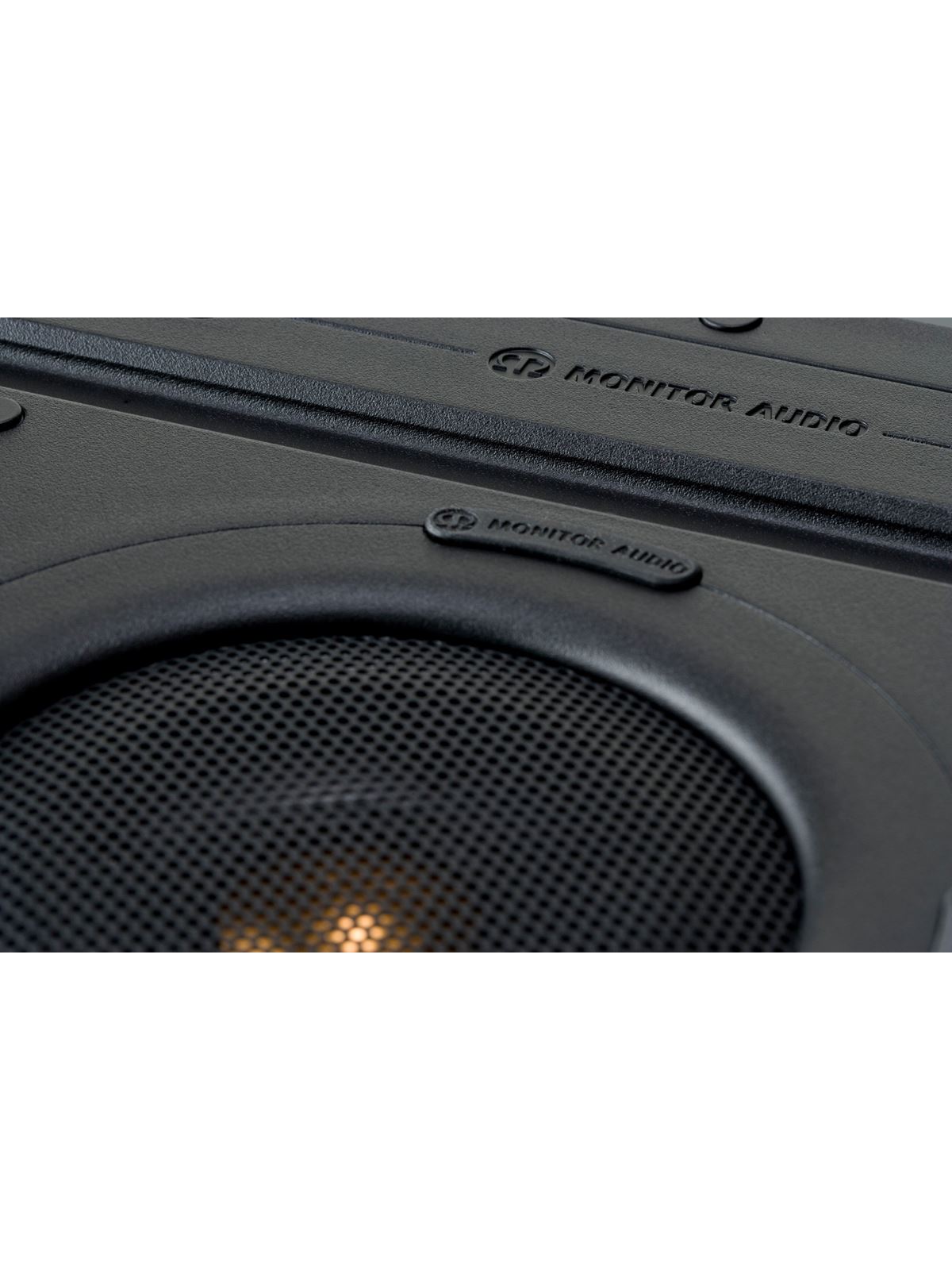

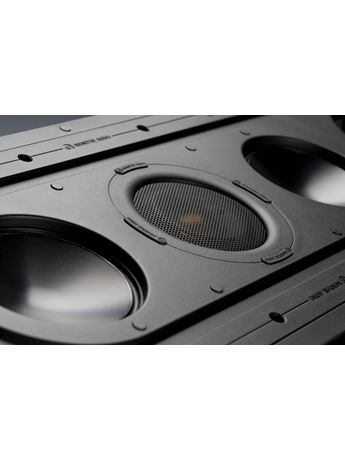

25mm (1”) c-cam Gold Dome tweeter

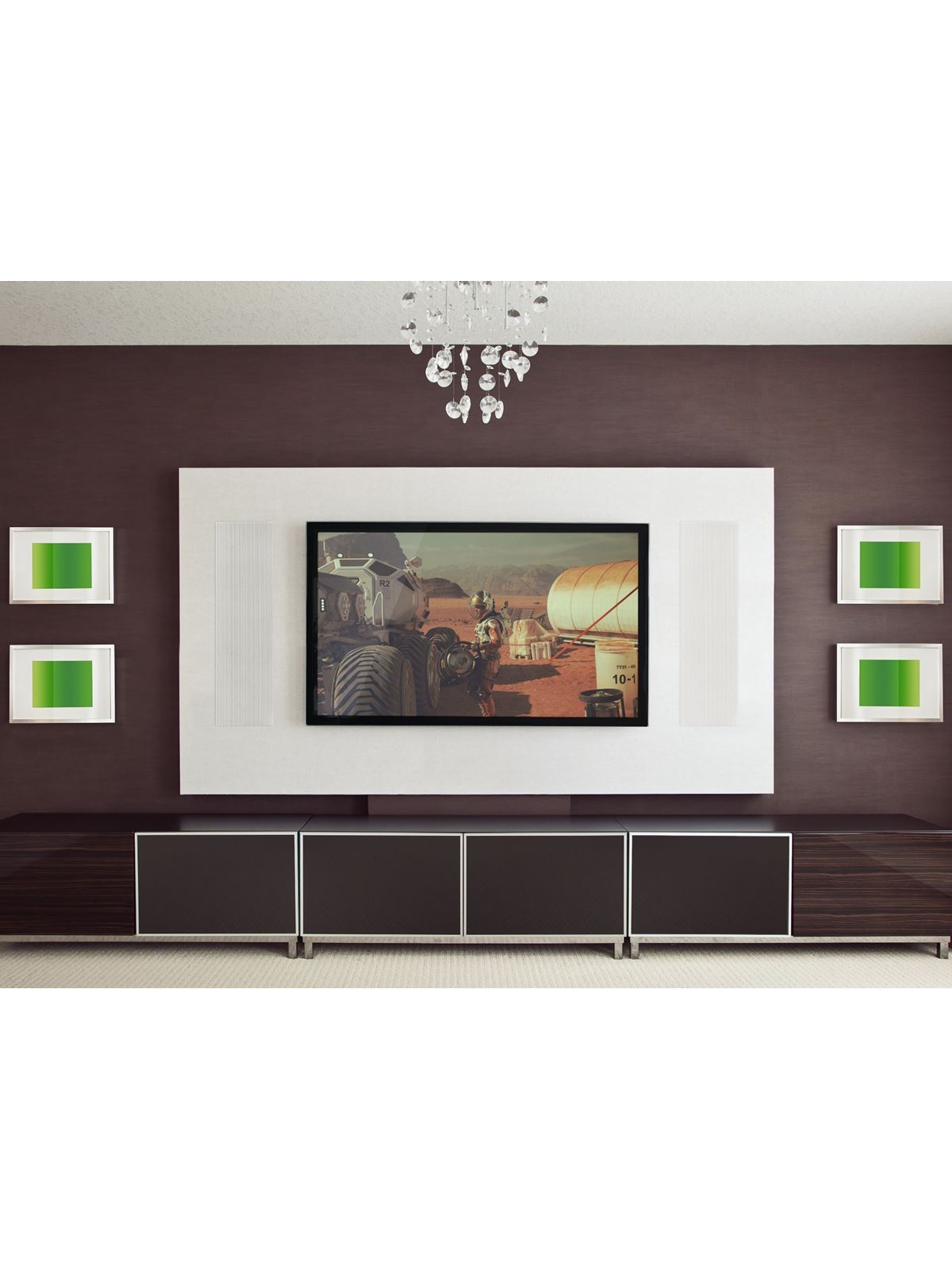

Portrait or landscape orientation

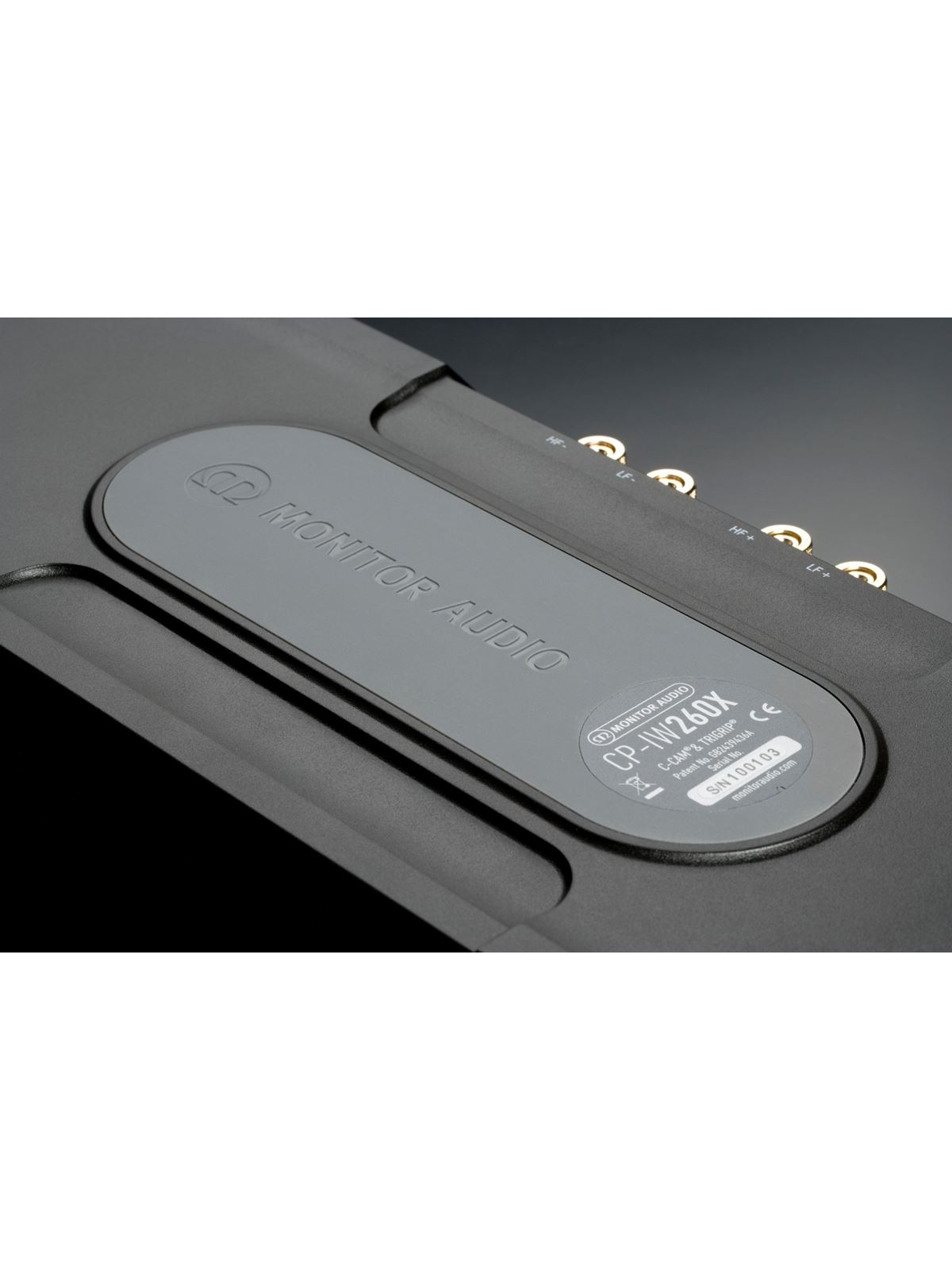

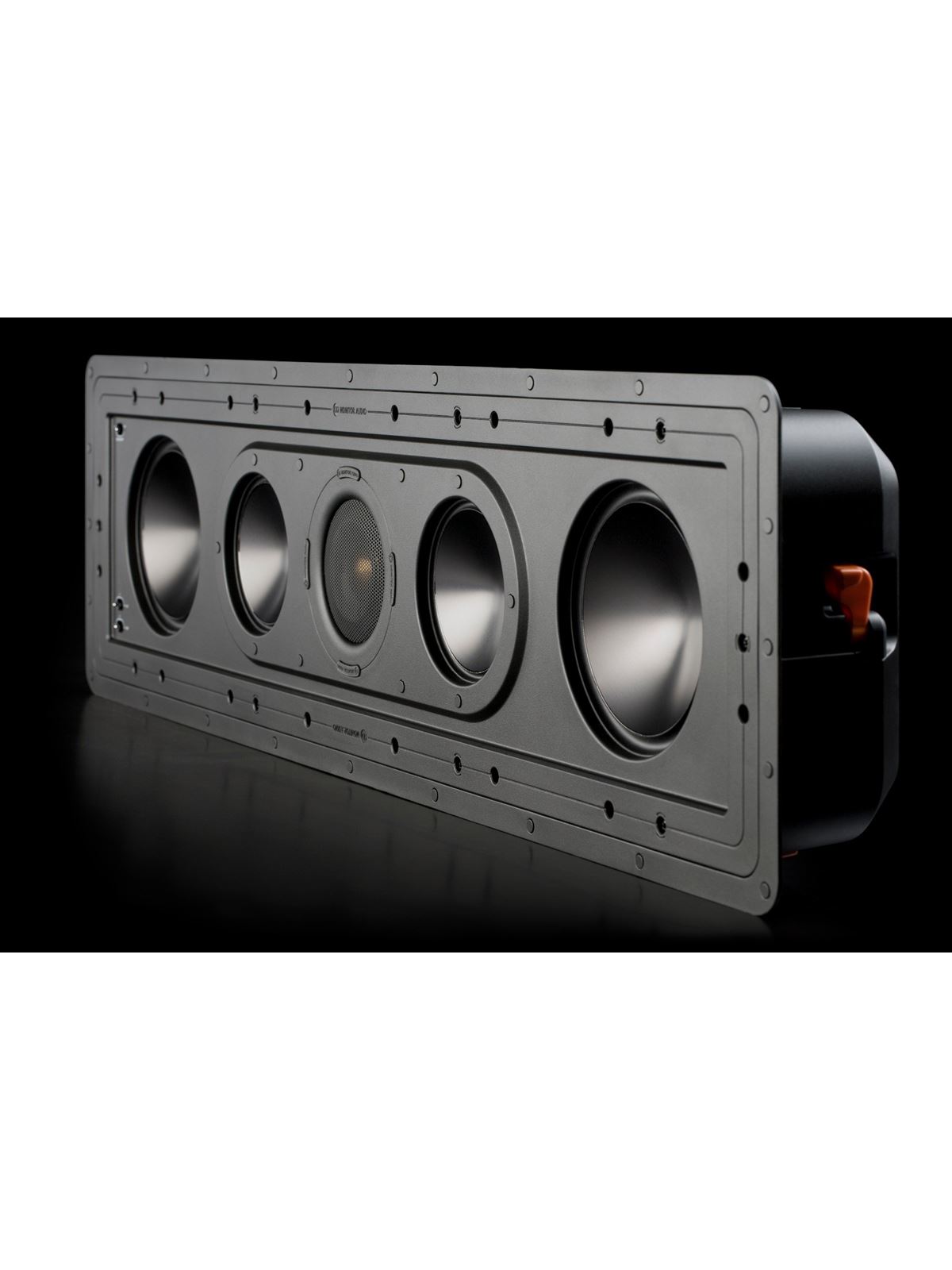

Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties

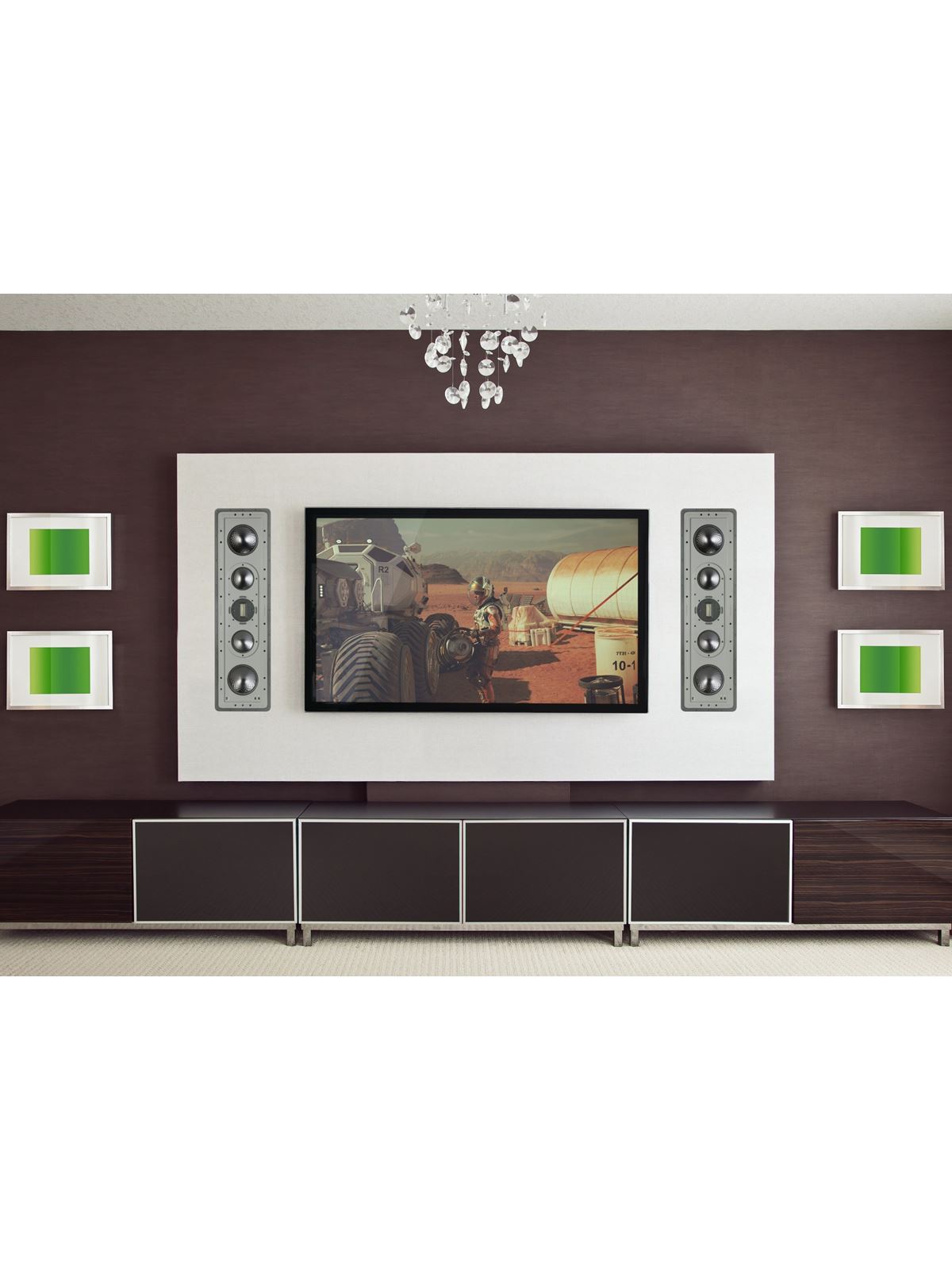

High overall efficiency and maximum SPL for powerful home theatre installations
High power handling

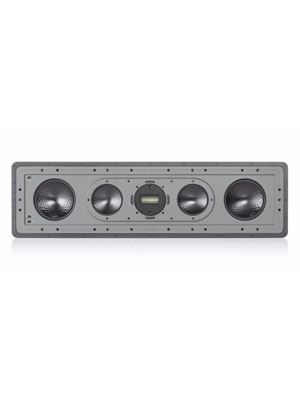

Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
Patented Tri-Grip® fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Paintable grille to blend with the living environment

Specification

Frequency Response: 50Hz - 30kHz (-6dB typical in room response)

Power Handling (RMS): 150 W

Mounting Depth: 96mm (3 3/4” )inches

Overall Dimensions:(including grille) (H x W): 907 x 257mm (35 3/4” x 10 1/8”) inches

Impedance (nominal): 6 Ohms

Recommended Amp Requirements: 60 - 150 W

Overall Depth:(including grille): 102mm (4”inches)

Sensitivity: (1W@1M) 88 dB

Drivers Unit Complement:

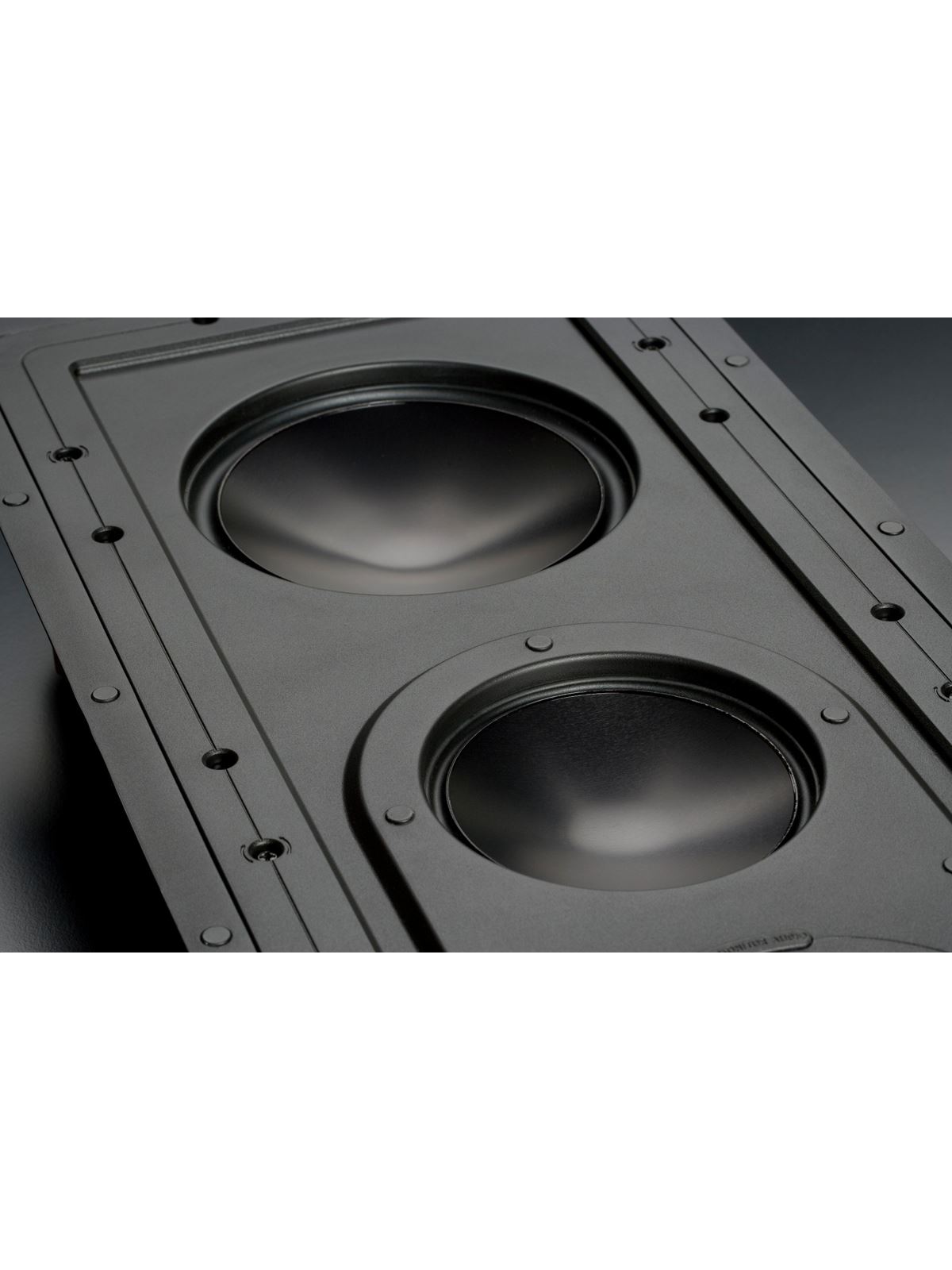

2 x 6.5” c-cam Bass drivers
2 x 4” C- CAM Mid-range drivers
1 x 25mm (1”) C- CAM Gold Dome tweeter

Cut Out Dimensions:(H x W): 880 x 230 mm ( 34 21/32” x 9” inches)

Construction Material: Cast Polymer enclosure (RoHS2 Compliant)

Maximum SPL (@1M. Installed/in room): 113.8 dBA

Fixing Type: 10x position Tri-Grip® dog leg fixings

Crossover Frequency: / Slope L.F - 500Hz @ 12dB/Octave M.F -500Hz @ 12dB/Octave. 3KHz @ 18dB/Octave H.F - 3KHz @ 18dB/Octave

Weight: 11.98kg (26lb 6oz)

Template : Download

Brochure : Download

RRP: £1,030.00

This item is not available as “add to cart”, due to either manufacturer restrictions or the product requiring professional setup, therefore we offer an installation and setup service in London & Surrounding areas, depending on the products required and the value of your order we can offer Free Installation services.
