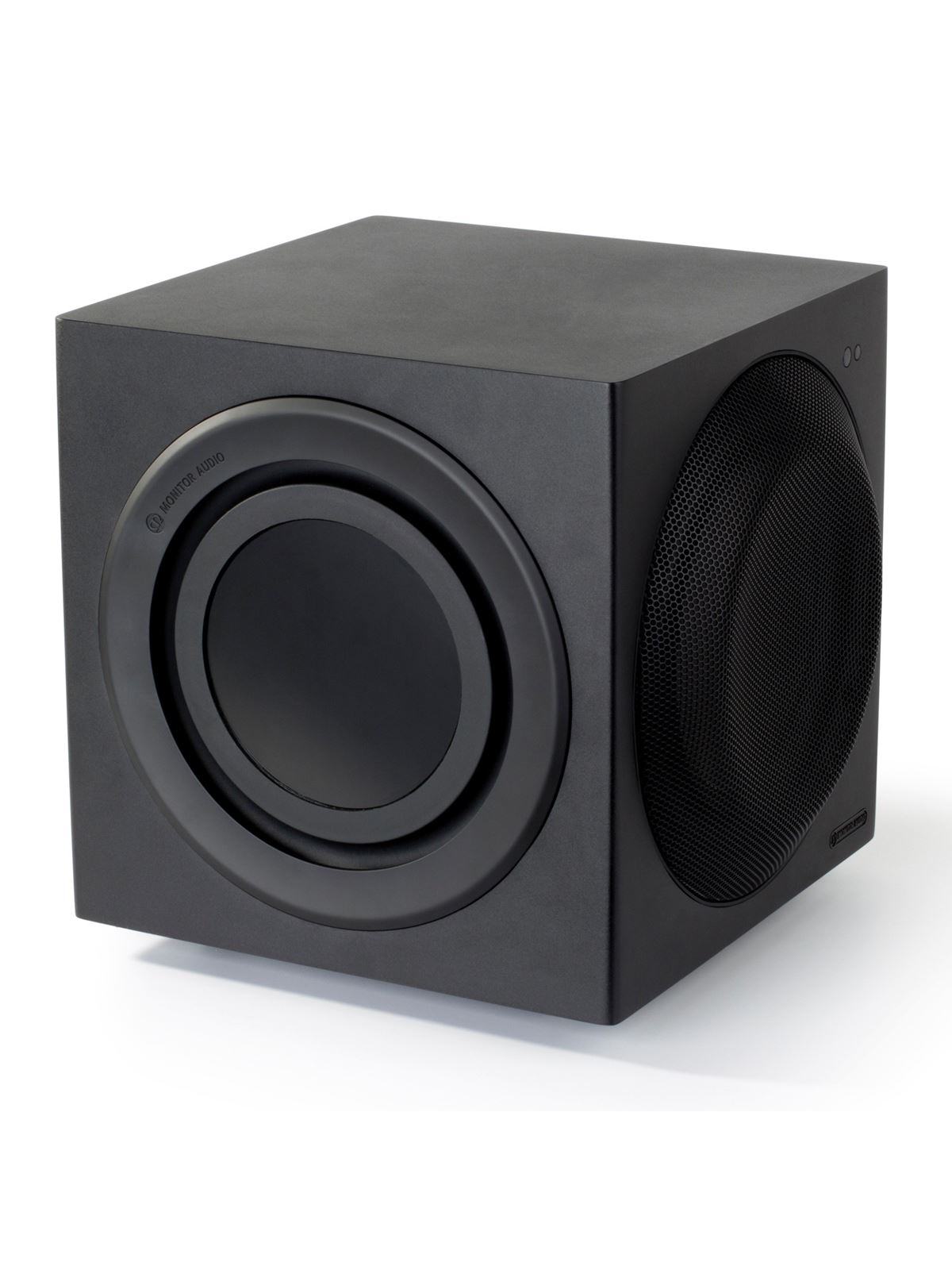

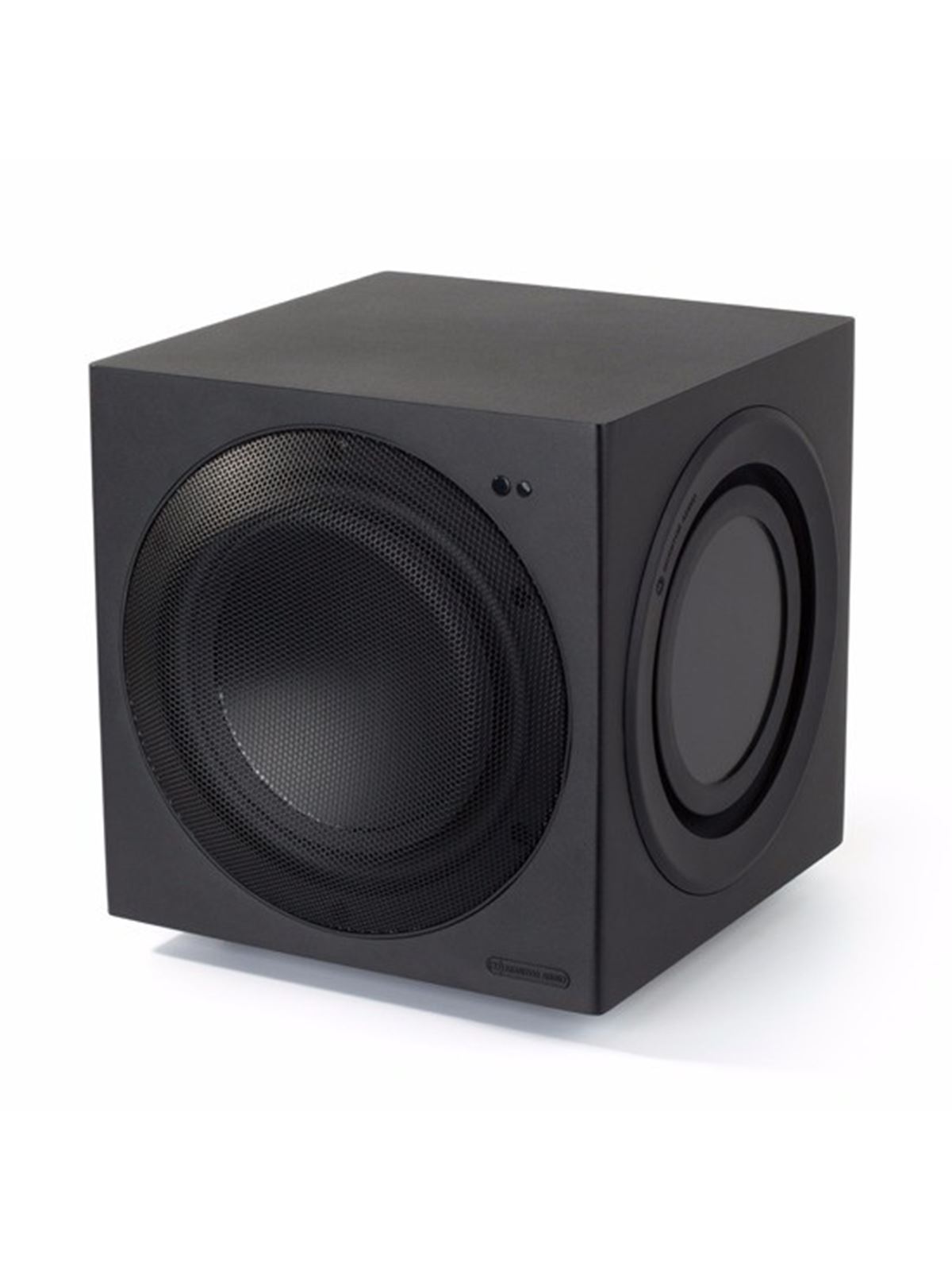

Monitor Audio Custom 400W, 10" Long Throw Active Subwoofer CW10 (Special Order / Discontinued)


trade price available

Description
The new CW10 places all the power in the hands of installer and client.

Each little bass-engine is generously specified with custom installation in mind, providing versatile input and control options including RS232 and a dedicated ‘SubConnect’ PC applet via a wired USB interface.

Technology
  • Ultra-compact ‘cube’ shape designs
  • Twin side-mounted ABRs for increased output and reduced distortion. Higher output than a sealed box and better control and zero air noise compared to a ported box
  • High excursion woofers featuring signature c-cam cone technology
  • High-power Class-D amplifier delivering 400 watts
  • DSP processing –all functions performed in the digital domain for precise control

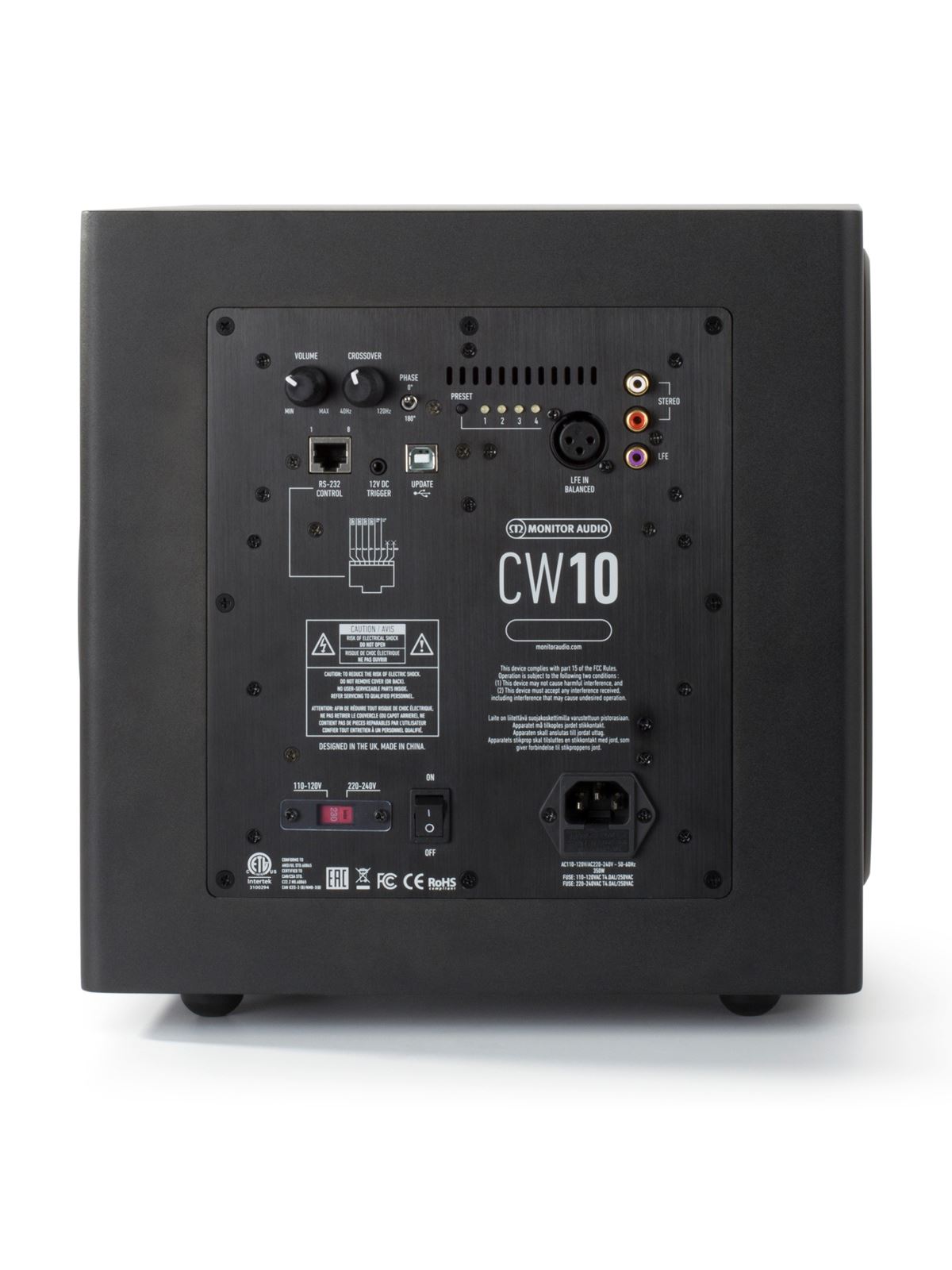

  • RS-232 for integration with system controllers
  • SubConnect’ PC Applet for full feature adjustment, installer set-up and firmware update using USB
  • LFE Balanced XLR and unbalanced RCA Inputs
  • Stereo RCA line level inputs
  • Phase switch (0-180 degrees)
  • 12V trigger and auto signal sensing with timer control
  • 4 x pre-set equalisation optimised for music, movie, flat and impact with customisation through SubConnect Applet
  • Robust metal mesh grille on front woofer
  • Rigid MDF cabinet construction with durable vinyl finish

Specification
System Format: Active sub-woofer system – twin ABR. 18mm MDF cabinet (CARB2 approved)
Amplifier Classification: Class D amplifier with Switch mode power supply (SMPSU)
Auto Sensing signal detection: LFE Input <2mV Auto wireless audio input
Mains Input Voltage: 110 - 120 Vac / 220 - 240 Vac 50/60Hz (Manual Switch selection)
Low Frequency Limit: 32Hz (-6dB)
Inputs: Stereo RCA LFE (RCA) LFE Balanced (XLR)
Auto Standby: After approximately 15 minutes if no signal sensed Wireless audio source turned off
Dimensions(H x W x D) (Inc fitted feet): 315 x 305 x 320mm 12 3/8 x 12 x 12 5/8”
Amplifier Power Output:  400W RMS @ < 1% THD+N
EQ Profiles : Flat/ Music/ Movie/ Impact
Driver Compliment: 1 x 10” (250mm) c-cam® long throw driver, 2 x 10” (250mm) ABR
12V Trigger Input : 5 - 12V via 3.5mm mono mini-jack socket
Maximum SPL : 105.8dBA
Phase Control: 0 & 180 degrees
Input Impedance: > 20KΩ
Power Consumption: Standby: < 0.5W (ErP approved) Typical Idle: < 10W Max Rated: 400W

Special Order / Discontinued
