Description

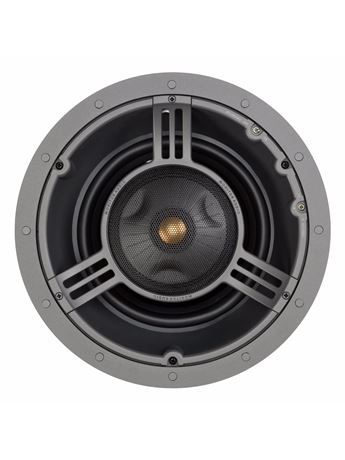

Configured with an 8"
c-cam® RST® bass driver and a pivoting IDC module, housing a 4-inch
c-cam RST inverted midrange driver and a 1-inch
c-cam gold dome tweeter. 3-way design provides deeper bass, higher system output and greater power handling than the 200 Series 3-way models.
Technology
- Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
- c-cam drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
- Special Inverted c-cam RST profile mid-range cone provides improved dispersion pattern.
- True 3-way designs.
- High overall efficiency.
- High frequency level adjustment (+/- 3dB).
- Boundary compensation control.
- Audio match with CP range 200 & 300 models and Silver & Gold GX Series hi-fi speakers.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

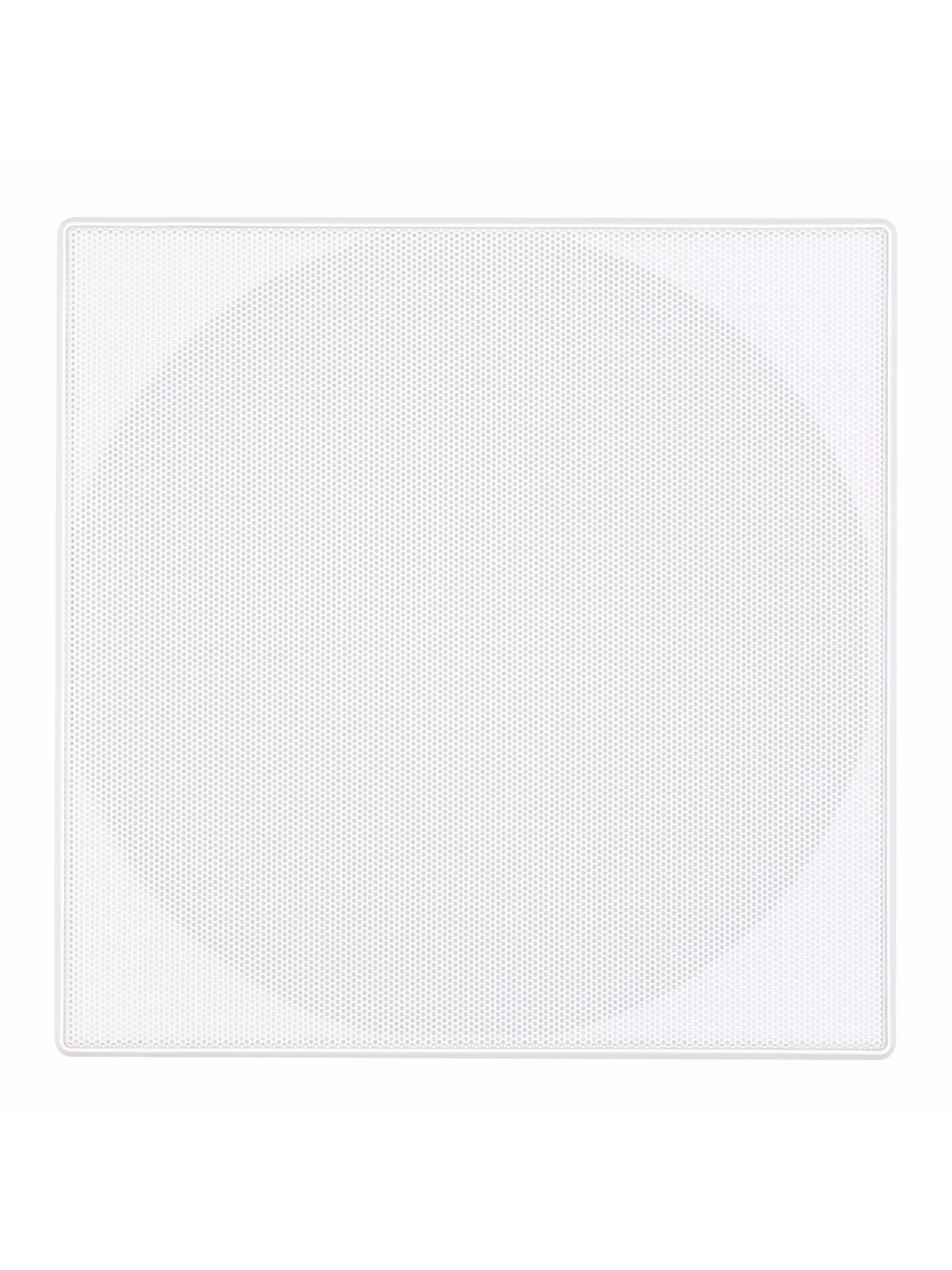

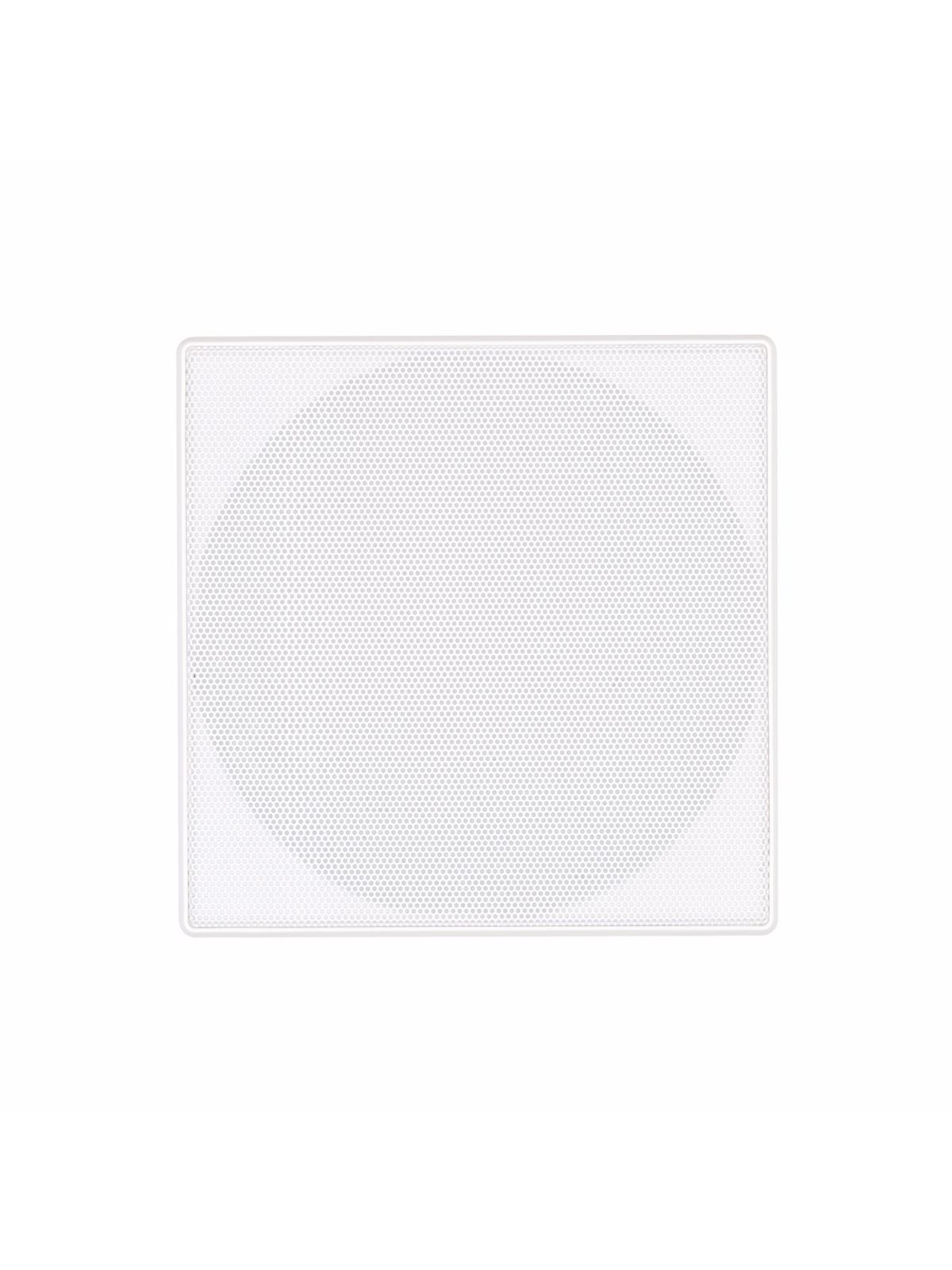

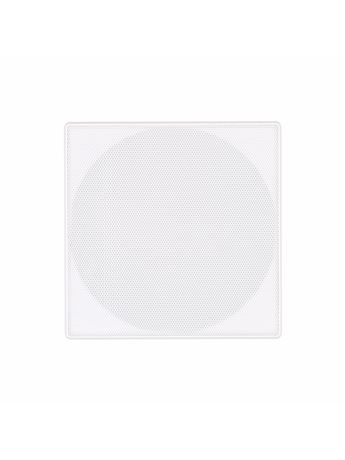

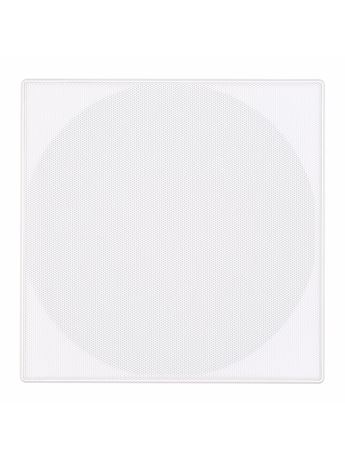

- Magnetic and easily removable steel grille.
- All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
- All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Specification
Frequency Response: 45 Hz - 30 KHz
Power Handling (RMS): 150 W
Overall Depth:(including grille): 160 mm (6 5/16 inch)
Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)
Impedance (Nominal): 6 Ohms
Recommended Amp Requirements: 40 - 150 W
Sensitivity: (1W@1M) 90 dB
Drivers Unit Complement: 8”
c-cam® cone bass driver featuring RST® pivoting IDC module housing: 4”
c-cam RST inverted mid range driver 1”
c-cam gold dome tweeter
Mounting Depth: 156 mm (6 1/8 inch)
Weight: 3.64kg (8lb)
Maximum SPL (single unit in free space): 112 dBA
Cut-Out Diameter: 247 mm (9 3/4 inch)
Fixing Type: 3 position Tri-Grip® dog leg fixings
Overall Diameter: (including grille): 285 mm (11 1/4 inch)
Adjustment Controls: HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch
Pre-Construction Bracket: CB8 (Green)
