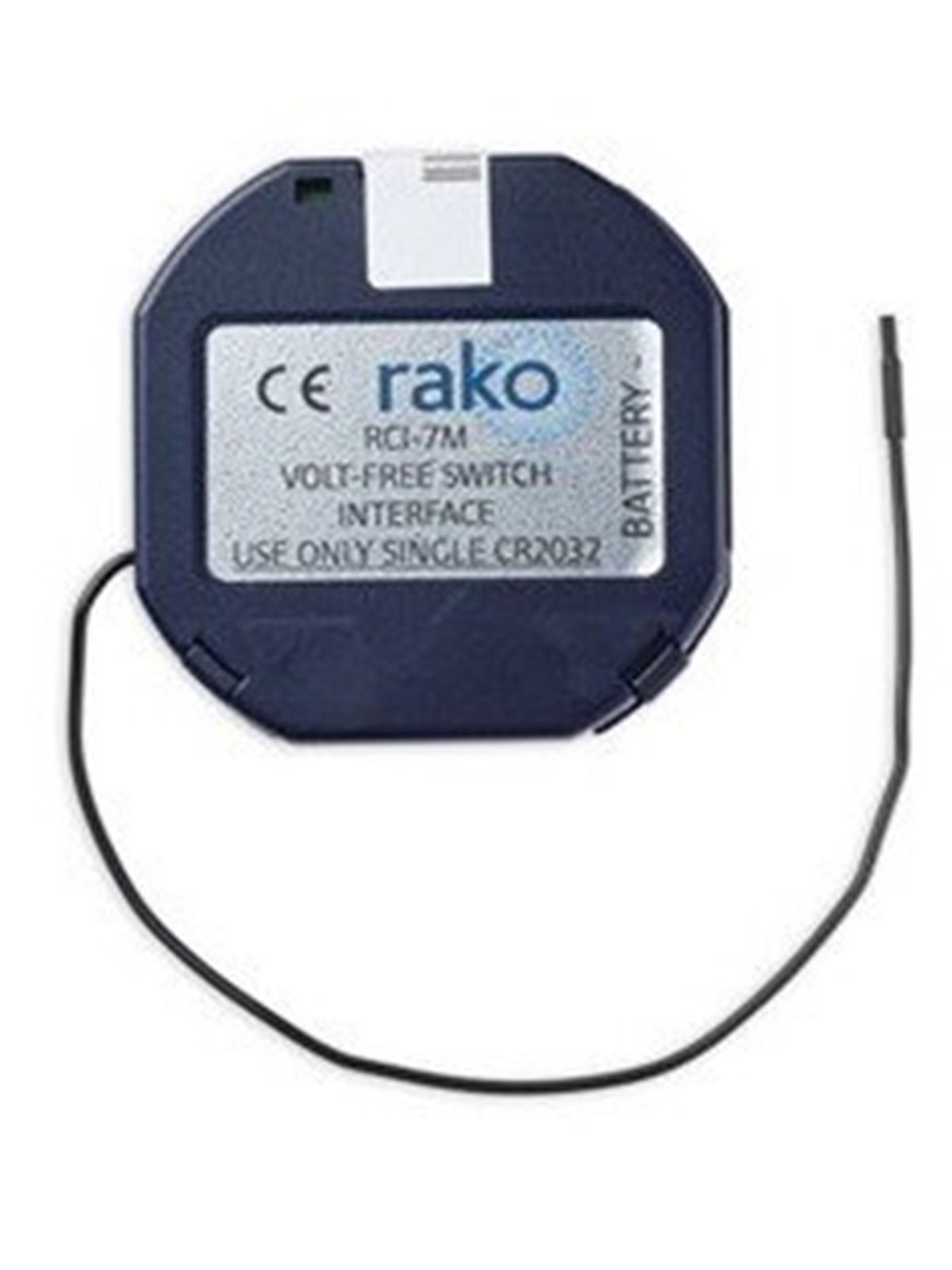

Rako Wireless NFC Programmable Latching Contact Interface Unit - RCI-7M

  •
  •

trade price available
WHAT IS IT?
A battery powered interface unit for up to 7 way latching volt-free switch inputs.
Programmed by NFC (Near Field Communication) with macro capability.
NOTE: This product can only be programmed with a laptop and the Rako RAMPI programming interface.
RCI-4L

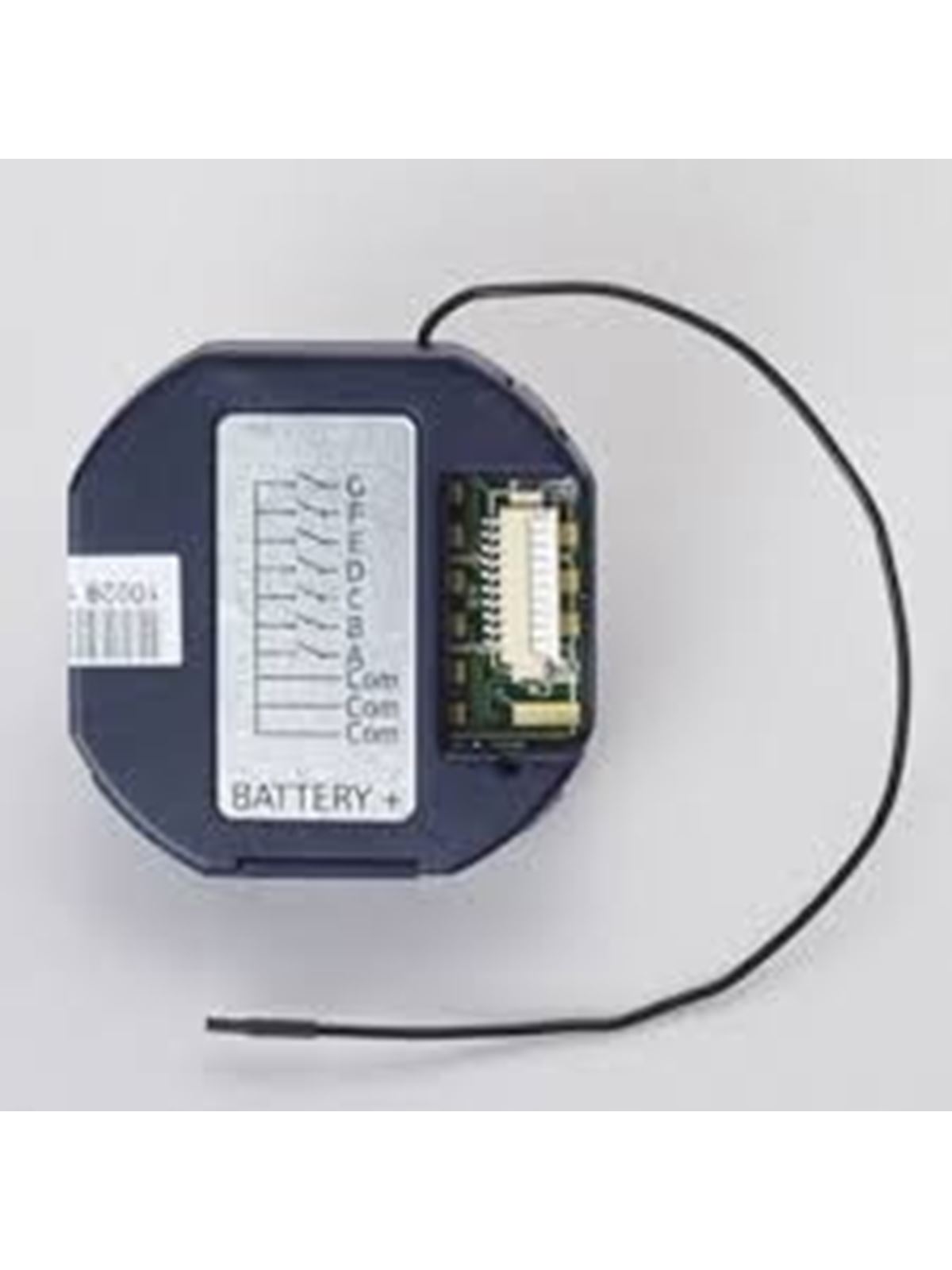

  • The RCI-7M accepts volt-free latching switch inputs and transmits wireless Rako coded Rakom messages to other Rako wireless receiver and Bridge units.
  • The module is battery powered and is designed to fit in a standard UK backbox.
  • Programmable via Rako's patented NFC (Near Field Communication) technology each of the 7 inputs can trigger a single or multiple commands. Each input is fully customisable, can be addressed to separate Rako Rooms or channels and activate on press, or release which gives a 'Press and Hold' function.
  • Additionally each input can trigger an internal macro function, making the unit the ideal device for integrating third party wall-switches into a Rako environment.
Technical Specification
Dimensions: 48x48x9mm
Input supply: 3V DC - 1 x 3V Lithium coin cell CR2032 battery
Housing: UL V0 material
Connections: 10 way direct push-in Maximum lead length 300mm
Terminal sizes: Supplied with precrimped wires for wire-to-board connector housing
Climate range
Temperature: +2C to +40C
Humidity: +5% to 95% non condensing
Standards
Emissions: EN61000-6-3 : 2007
Immunity: EN61000-6-1 : 2007

Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
  • Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
  • Developer/Trade Pricing - Available upon request
  • Support our clients - We offer on-site support and commissioning.
  • Confidence in Quality - Our Rako Specialist  has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£128.40 inc. VAT (1% Cashback available on all purchases via Debit Card)
£107.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
