WHAT IS IT?

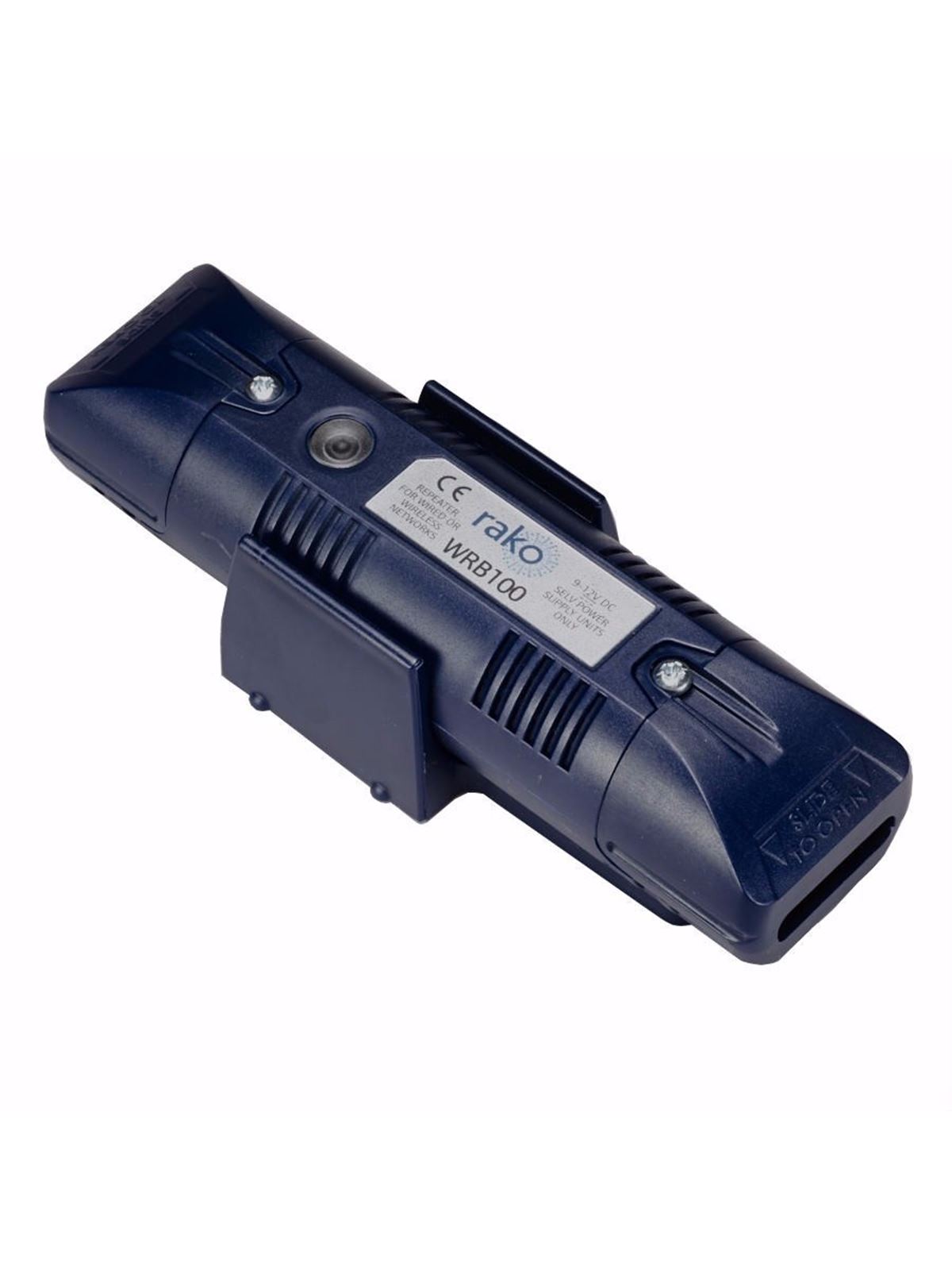

The WRB100 is a flexible signal repeater for use with either wireless only or combined wired and wireless Rakosystems.
Typically located centrally between push button wall plates and dimmer receivers.
Extend Control
- Used as a wireless repeater the WRB100 receives and repeats Rako wireless messages thus increasing the range of transmitters.
- Typically located between transmitters and repeaters the unit will repeat all messages from the same Rako 'House' address.
- Usually used as a single repeater to avoid messages creating a locked loop it is possible to configure WRB100 units to repeat messages from other WRB100 units.
- When used in a combined wired and wireless system the WRB100 forms a link between the two networks, repeating all messages both wired and wireless allowing a wired system to respond to wireless commands and equally control wireless devices.
Wired Spine Operation
When used to form a wired spine two or more WRB100 modules can be used to create a simple wired backbone system where no other wired devices are used but allowing a wireless message to be received by one WRB100, be transmitted down a data cable and be re-transmitted by another WRB100(s).
This method can provide a simple and effective yet reliable means of extending a wireless system.
Technical Specification
Dimensions: 172x46x40mm
Input supply: 12V DC Power supply included
Weight: 175g
Housing: UL V0 material
Climate range
Temperature: +2C to +40C
Humidity: +5% to 95% non condensing
Connections
Wireless: jack plug for 12V DC
Wired: RJ11socket or punchdown connector
Terminal sizes: N/A
Standards
Emissions: EN61000-6-3 : 2007
Immunity: EN61000-6-1 : 2007
LVD: EN 60950-1 :2006
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£178.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
