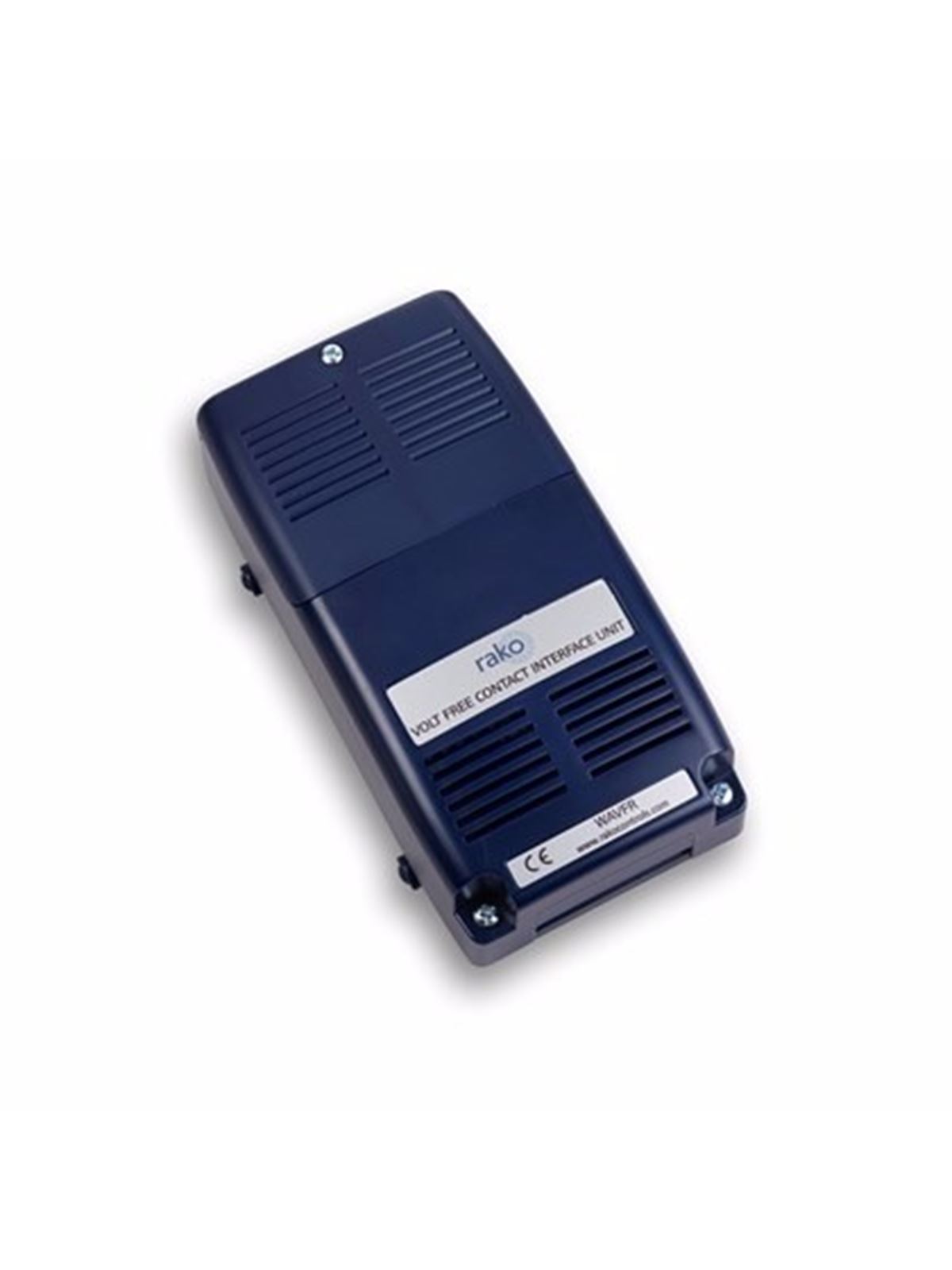

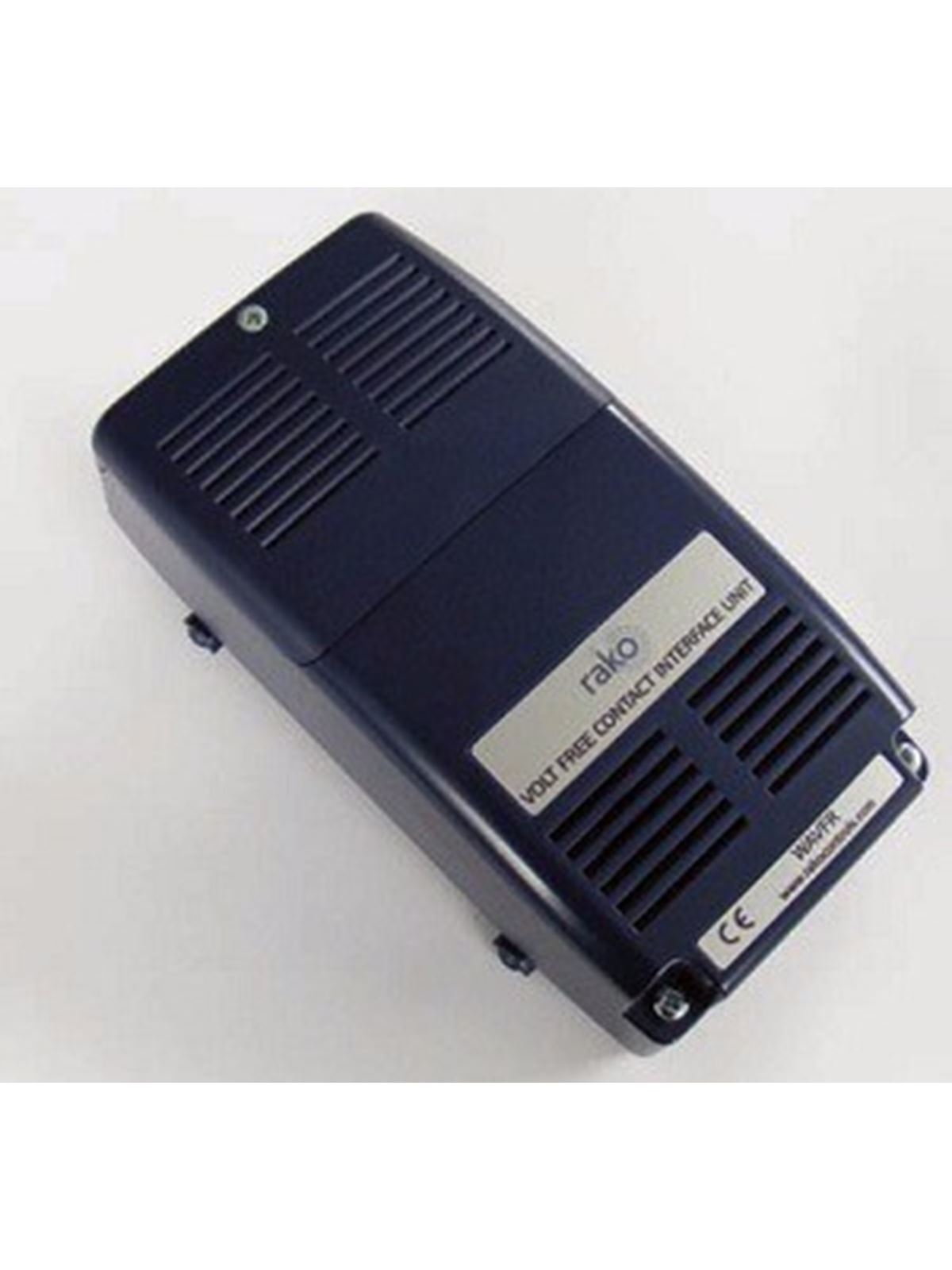

Rako Wired Volt-Free Interface Unit - WAVFR


trade price available
WHAT IS IT?
A compact interface unit for use with the Rako Rakom wired network.
The WAVFR allows up to 10 volt-free contact closures to interface to the network which can then trigger lighting scenes and actions.
WAVFR Wired Volt-Free Interface Unit
  • The WAVFR is fitted with a 10 way set of screw terminals for signal input and an additional 3 way connector for Common inputs.
  • The WAVFR is configured in Rasoft and signal inputs can trigger lighting scenes or actions in a similar fashion to button presses on a wall-panel.
  • Connection to the Rakom wired network can be via the RJ11 lead,plugging into a RAKLink or RAKStar unit.
  • Alternatively a WPCon or WPConC unit can be used as a remote plug in connection point or the network can be punched down on to the daughter board supplied with the WAVFR.
  • Power is derived from the Rakom network.
Technical Specification
Dimensions: 190x100x65mm
Input supply: Powered from RAK-LINK via RJ11 connection or from CAT5 network via optional punch down connector.
Weight: 340g
Housing: UL V0 ABS
Climate range
Temperature: +2C to +40C
Humidity: +5% to 95% non condensing

Rakom cable type: UTP CAT5e or CAT6
Rakom terminals: 8 way Krone punch down RJ11 - Socket (lead included)
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001

Communication: Rakom Wired Network
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
  • Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
  • Developer/Trade Pricing - Available upon request
  • Support our clients - We offer on-site support and commissioning.
  • Confidence in Quality - Our Rako Specialist  has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£220.80 inc. VAT (1% Cashback available on all purchases via Debit Card)
£184.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
