Rako Wired 10 Button Programmable Push Button Module - WCM-101

 WHAT IS IT?

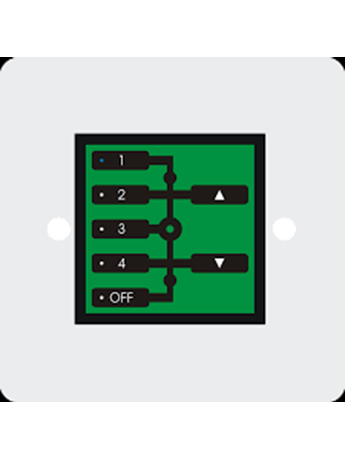

The WCM-101 is a wired 10 button wall plate controller. The operation is as the WCM-100 but the WCM-101 has a different button layout, this means you can typically have 4 Scenes plus off and additionally raise and lower with blind control.



 It will transmit Scene 1-4, Off and Fade Up/Down in one room and Fade Up/Down and Off in another (typically for curtains/blinds) before any custom programming is added.

Each button on the WCM-101 can be individually programmed for master or channel raise and lower, to stop and start macros, or turn LED indicators on and off.

 Using RASOFT programming  Software it is possible to configure each button individually to carry out a number of different tasks, for example:



Dimensions: 50x50x36mm

Input supply: 12-18vdc supply from Rakom CAT5 wired network

Weight: 50g

Fixing: Flush mounting into standard single gang back box, minimum 35mm depth.

Humidity: +5% - 90% non condensing

Cable Type: UTP CAT5e or CAT6

Terminal Type: 8 way Krone punch down (screw terminal option available)

Communication: Rakom wired network

Memory:  Flash memory (non volatile) Firmware upgrades via RASOFT programming Software

Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
