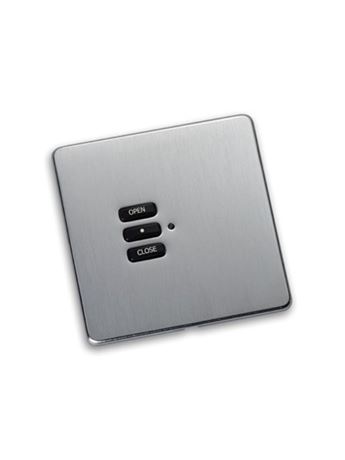

Rako Wireless 3 Button NFC Programmable Push Button Module - RNC-030

The RNC101 push button control module is programmable via Rako's patented  NFC(Near Field Communication) technology allowing each of the buttons to trigger a single or multiple commands. Each input is fully customisable, can be addressed to separate Rako Rooms or Channels and activate on press, or release which gives a 'Press and Hold' function. Additionally each input can trigger an internal macro function.

This product can only be programmed with a laptop using Rako’s Rasoft Pro  Software and the Rako RAMPI programming interface.

Fixing: Flush mounting into standard UK single gang back box, minimum 12mm deep.

Surface mounting on standard single gang UK or European back box or direct to flat surface.

Input supply: 6V DC - 2x 3V Lithium coin cell CR2016 (remote power supply version available)

Weight: 100g

Battery Life: Greater than 3 years

Temperature: +2C to +40C

Humidity: +5% to 95% non condensing

Emissions: EN61000-6-3 : 2007

Immunity: EN61000-6-1 : 2007

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
