WHAT IS IT?

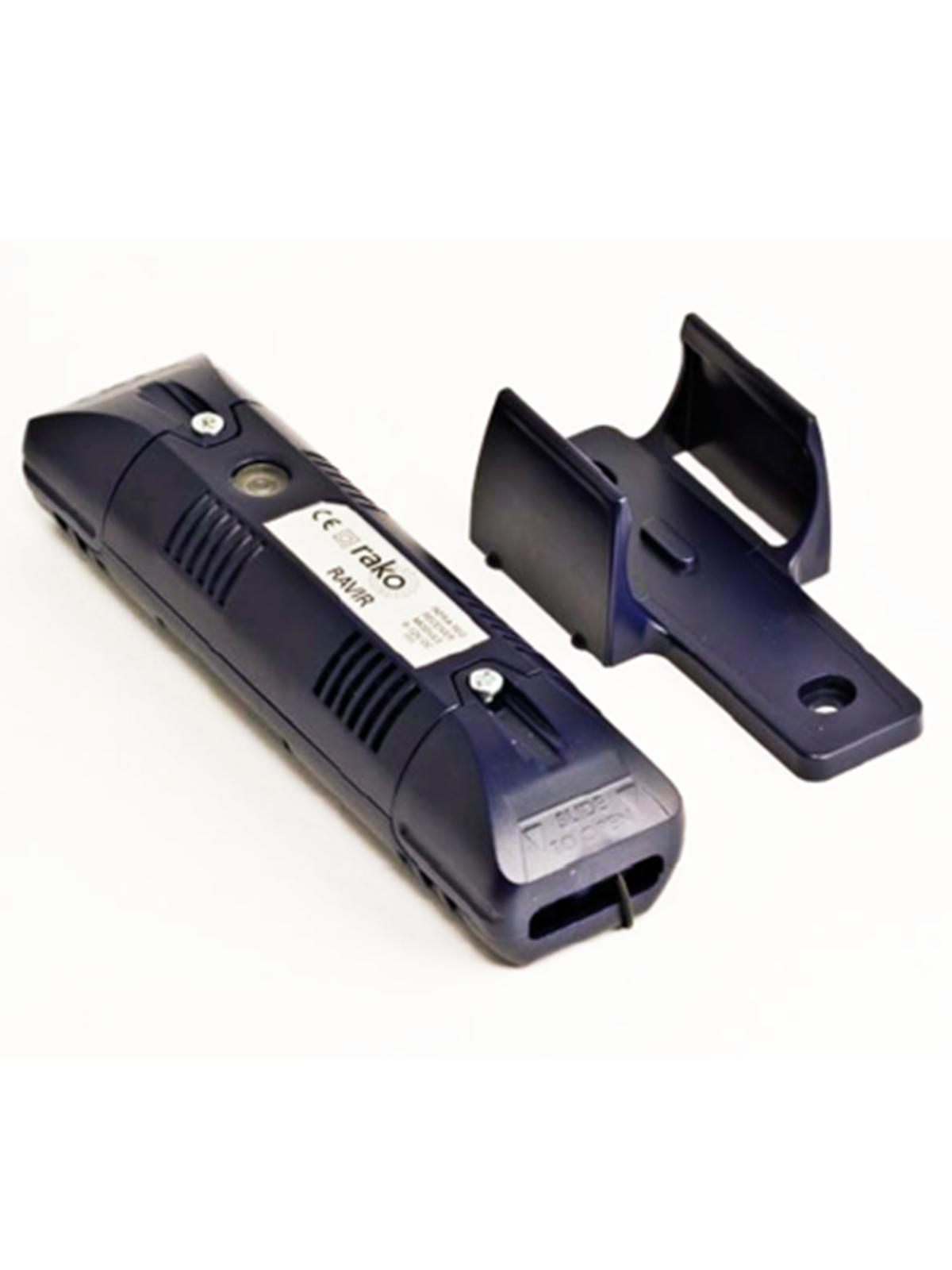

Designed to be located out of sight along with other audiovisual sources it creates a link between infrared based controllers and Rako RF based receivers.
Each unit comes complete with an infrared receiver head located at one end of the unit. This can be removed and mounted remotely using a 3 core cable, enabling the RAVIR module to be hidden.
The unit accepts standard Philips RC5 codes. A version is also available that accepts Bang & Olufsen infrared signals.
Flexible Control
- The RAVIR infrared gateway allows scene control from hand held infrared remote controls, multi-room audio systems and other systems that have IR control outputs.
- In factory default setting, the unit will control a single room with Scenes 1-4, Off and master raise & lower
- When configured with the RASOFT programming Software, it is possible to select ‘multi-room’ mode and control up to four separate rooms from one RAVIR unit. In ‘multiroom’ mode it is also possible to raise and lower individual dimmer channels.
- Uses Standard Philips RC5 HEX code sets, compatible with the Philips Pronto Edit, Marantz WizIT and Nevo Studio Software suites.
Technical Specification
Dimensions: 172x46x40mm
Input Supply: 12V DC regulated (RAPSU inc.) Connection via concentric jack.
Weight: 115g
Housing: UL V0 ABS
Climate range
- Temperature: +2C to +40C
- Humidity: +5% - 95% non condensing
Connections
- 3 way screw terminal for infrared receiver head (included)
- Concentric jack - 12V Power
Standards
Emissions: EN61000-6-3 : 2007
Immunity: EN61000-6-1 : 2007
LVD: EN 60950-1 :2006
Terminal sizes: 4mm2
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£178.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
