WHAT IS IT?

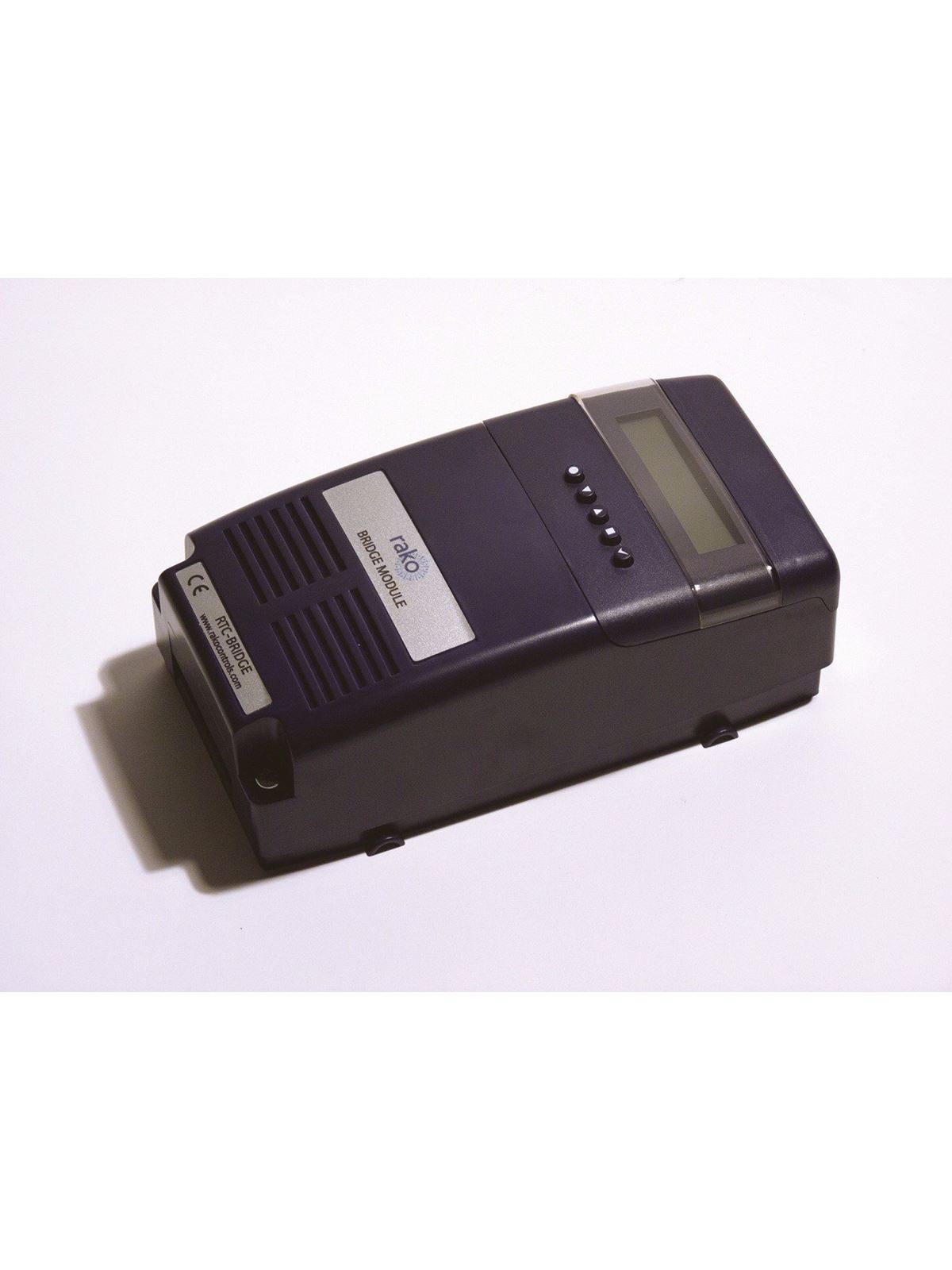

A four channel dimming rack, designed to be wall mounted in an electrical cupboard.
The RTC-Bridge acts as a programming interface as well as having ethernet access for app control via smartphones and tablets.
The RTC-Bridge also has a realtime clock allowing advanced programming, timed events, and holiday mode control.
System Programming
The RTC-Bridge provides the connection between the Rako wireless network and a laptop running Rako's programming
Software RASOFT. A laptop can connect to the RTC-Bridge either directly using a crossover cable or, using a router, via WiFi.
The RTC-Bridge allows full system configuration and programming of a Rako wireless network.
TCM (Timeclock Module)
The TCM module fitted to the RTC-Bridge gives the Rako system both timed events and advanced programming features.
Timed Events
The TCM time clock unit fitted to the RTC-Bridge has a battery backed real-time clock which, when connected, synchronises with internet time.
The TCM also has a full astronomic clock feature allowing timed events to be programmed either on a fixed time, or based on Dawn/Dusk cycles.
Holiday Mode
The TCM allows recording of normal network activity which can then be replayed to give 'Holiday Mode' security.
Advaned Programming
The TCM allows macro programming and allows mapping from both wired and wireless triggers.
Technical Specification
Dimensions: 190x100x65mm
Input supply: 12V d.c. from RAPSU or equivalent. Connection via concentric jack.
Weight: 305g
Housing: UL V0 ABS
Climate range
Temperature: +2C to +40C
Humidity: +5% - 95% non condensing
Connections: RJ45 Socket - Ethernet Concentric jack - 12V Power
Communications: Rakom wired network, Rakom wireless network
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£436.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
