Ruckus Zoneflex R310 902.11AC 2X2:2 Dual-Band 2.4GHZ/5GHZ Concurrent Indoor App


trade price available
Overview
High Performance 802.11ac Wi-Fi Access Point in Compact Form Factor for small Enterprises

The Ruckus ZoneFlex R310 delivers high-performance reliable 802.11ac wireless networking at a competitive price point in a compact form factor.

Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 combines patented BeamFlex adaptive antenna technology and ChannelFly to deliver consistent, predictable performance at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation.

The ZoneFlex R310’s ultra compact form factor fits in the palm of your hands, enabling quick and versatile installation.

Ideal for a variety of low-density enterprise and hotspot environments including small-medium businesses, retail, restaurants and multi-tenant office buildings that requires reliable high-speed client connectivity.

Features
High Performance and Cost Effective
  • Two-stream MIMO 2x2:2
  • Concurrent dual-band (5GHz/2.4GHz) support
  • 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user throughput
  • Up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation
  • Capable of supporting up to 100 clients per access point

Adaptive antennas and Automatic interference mitigation
  • Up to 2x to 4x increase increase in Wi-Fi signal coverage
  • Automatic interference mitigation to deliver consistent, predictable performance at extended ranges

Small Form Factor for easy installation
  • 138mm x 135mm x 30mm
  • Flexible mounting options include: secure mounting bracket, ceiling T-Bar or flat surface

Concurrent support for HD IPTV, VoIP and data
  • Support for isochronous, multicast IP video streaming
  • Four queues per client station

Differentiated services with multiple SSIDs
  • Support for up to 8 BSSIDs per radio (16 BSSIDs per access point) with unique QoS and security policies
  • WPA-PSK (AES), 802.1X support
  • Zero-IT and Dynamic PSK
  • Captive portal and guest accounts
  • RADIUS and Active Directory support

Technical Specification
DC Input: 12 VDC 1.0A
Power over Ethernet 802.3 af
Size: 13.8cm (L), 13.5cm (W), 3.3cm (H) 5.4 in (L), 5.3 in (W), 1.3 in (H)
Weight: 220 gms (0.485 lbs)
Ethernet Ports : 1 auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45, POE port
Lock Options: Hidden latching mechanism Kensington Lock Hole T-bar Torx
Operating Temperature: 0°C - 40°C Operating Humidity: 10% - 95% non-condensing
DC Input
Idle: 6W
Typical: 7.1W
Peak: 9W
Power over Ethernet Input
Idle: 6W
Typical: 7.8W
Peak: 11W

Max Phy Rate : 300 Mbps (2.4GHz), 867 Mbps (5GHz)
Concurrent Stations : Up to 100 clients per AP
Simultaneous VoIP ClientsS: Up to 30

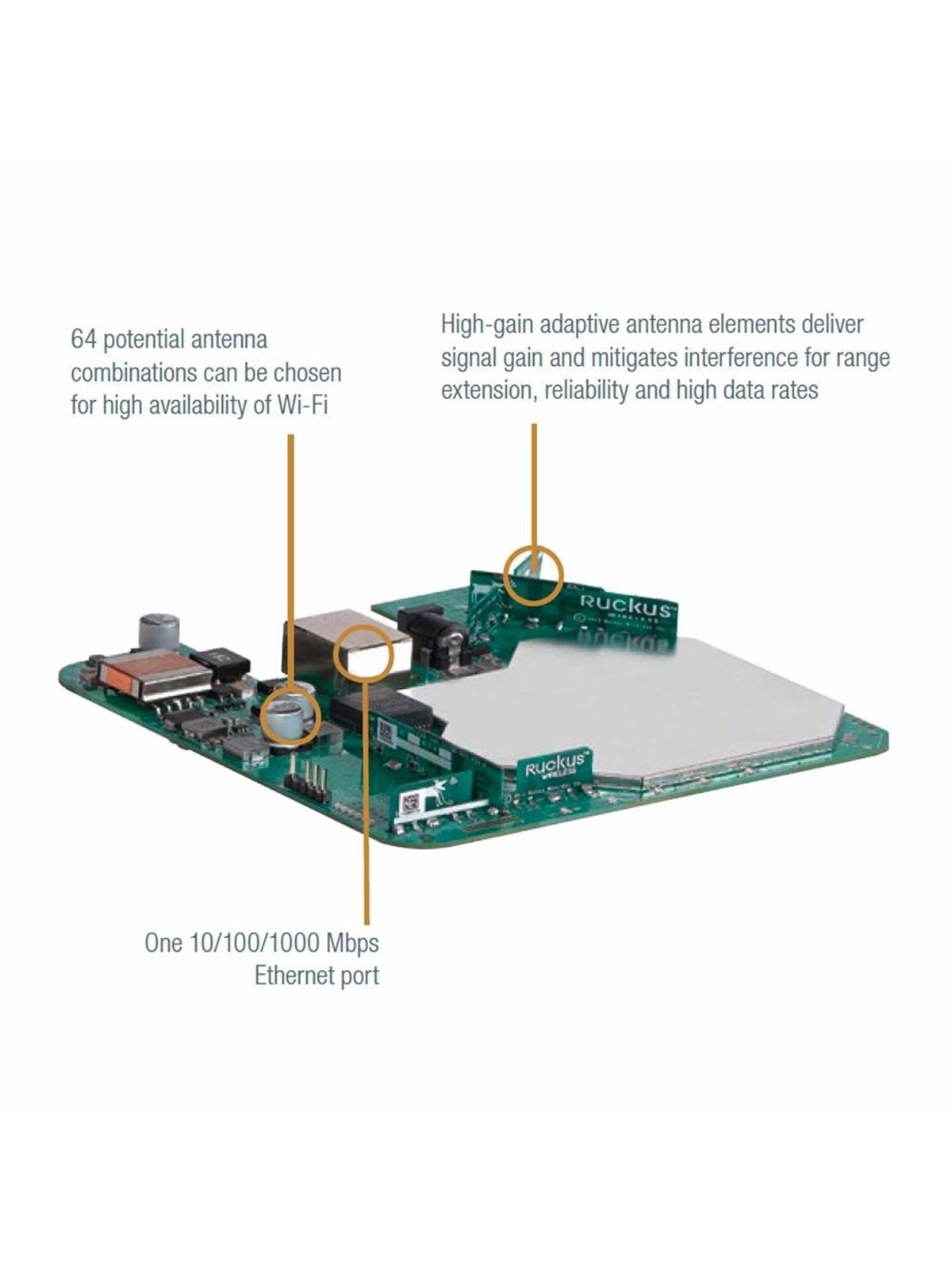

Adaptive antenna that provides up to 128 unique antenna patterns: 64 patterns per band
RF Power Output (Aggregated): 23 dBm for 2.4GHz†, 24 dBm for 5GHz†
Phisical  Aantenna Gain : Up to 3 dBi per spatial stream
Beamflx * Sinr  TX Gain: Up to 4 dB
Iinterference Mitigation: Up to 10 dB
Minimum RX Sensitivity: Up to -99 dBm

Deployment  Options:
  • Standalone (individually managed)
  • Managed by ZoneDirector
  • Managed by FlexMaster
  • Managed by SmartZone
Configuration :
  • Web User Interface (HTTP/S)
  • CLI (Telnet/SSH), SNMP v1, 2, 3
  • TR-069 vis FlexMaster
Auto  Ap Software Updates: FTP or TFTP, remote auto available
Standards: IEEE 802.11a/b/g/n/ac , 2.4GHz and 5GHz

Supported Data  Rates :
802.11n/ac: 6.5Mbps – 173.4Mbps (20MHz) 13.5Mbps – 400Mbps (40MHz) 29.3Mbps - 867Mbps (80MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps

Radio Chains: 2x2
Spatial Streams: 2
Channelization: 20MHz, 40MHz, 80MHz

Frequency Band:
IEEE 802.11 b/g/n: 2.4 – 2.484 GHz
IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35 GHz; 5.47 – 5.725 GHz; 5.725 – 5.85 GHz

Operating Channels:
US/Canada: 1-11, Europe ( ETSI X30): 1-13,
Japan X41: 1-13
5 GHz channels: Country dependent

BSSID: Up to 8 per radio (16 per AP)
Power Save: Supported
Wireless Security:  Authentication via 802.1X with the ZoneDirector or SmartZone, local authentication database, support for RADIUS, LDAP, and ActiveDirectory

Certifications*:
  • U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Ecuador, Egypt, Hong Kong, India, Indonesia, Israel, Japan, Jordan, Kenya, Korea, Malaysia, Mexico, New Zealand, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan, Thailand, UAE, Vietnam
  • WEEE/RoHS2 compliance EN 60601-1-2 (Medical)
  • Wi-Fi Alliance
  • WFA
  • Industry Canada
  • EU/EFTA
  • CB Scheme Certificate
£412.50 inc. VAT (1% Cashback available on all purchases via Debit Card)
£343.75 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
