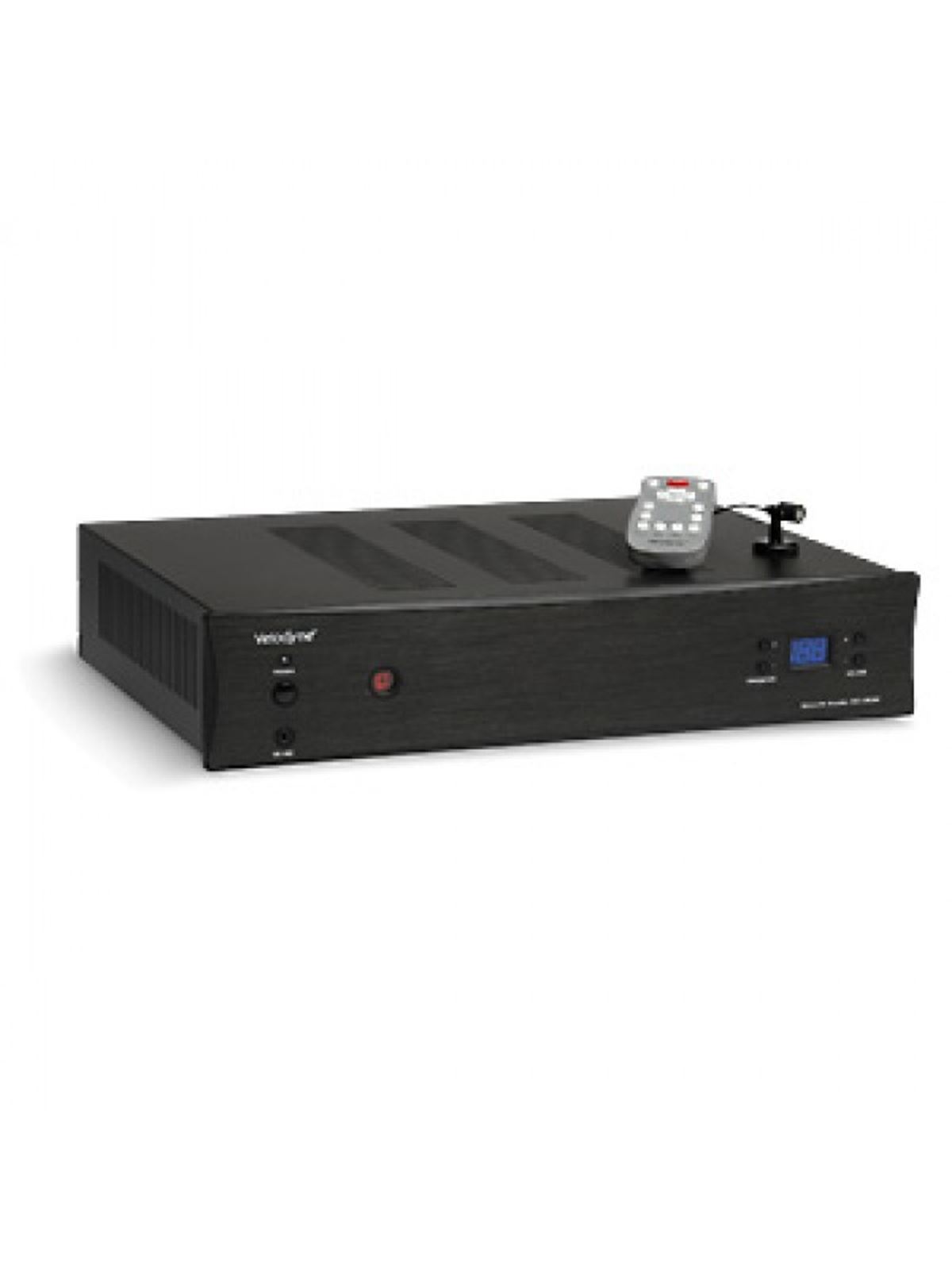

Velodyne SC-602 400w (x2) Amplifier

(Powers up to 2 subwoofers)

400W Dynamic Power (x2) Dual Mono Amplifier with Remote Control, Microphone and Rack Mount Hardware.

The SC-602 is a matching amplifier to the SC-600 IW and SC-600 IF/IC subwoofers. The dual- 400 Watt per channel amplifier is digitally tuned for dynamic bass and includes distortion limiting electronics. Twin subwoofers can be installed using one amp. (If you want to use two amps to drive two subs, use the SC-600D.)

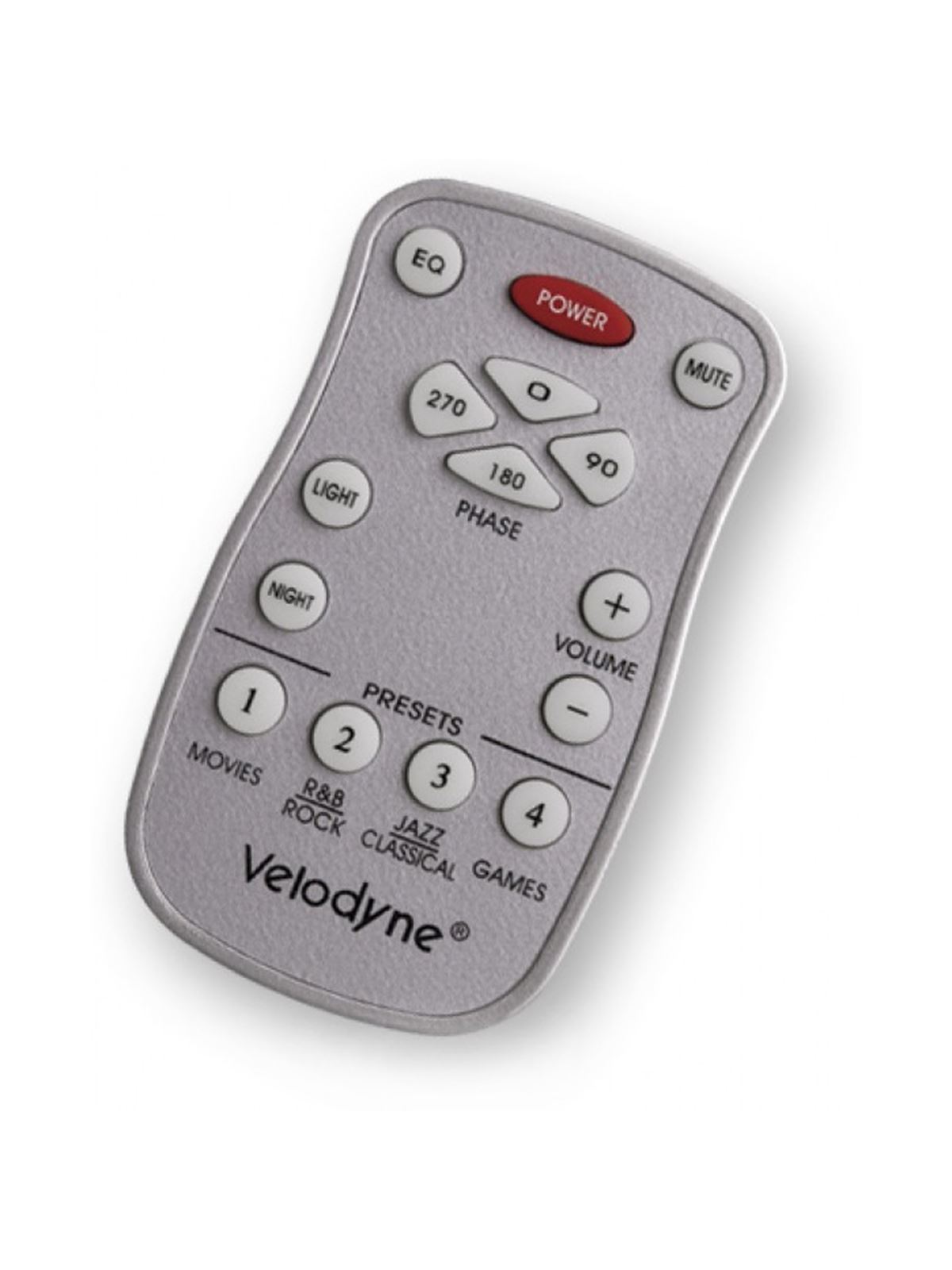

The amplifier comes with a remote control with a one-button, 5-band, Auto-EQ room bass optimization feature, four listening presets, night mode, volume controls, phase control and mute mode. The 2 unit high amplifier is easily rack-mounted and uses conventional speaker wires.

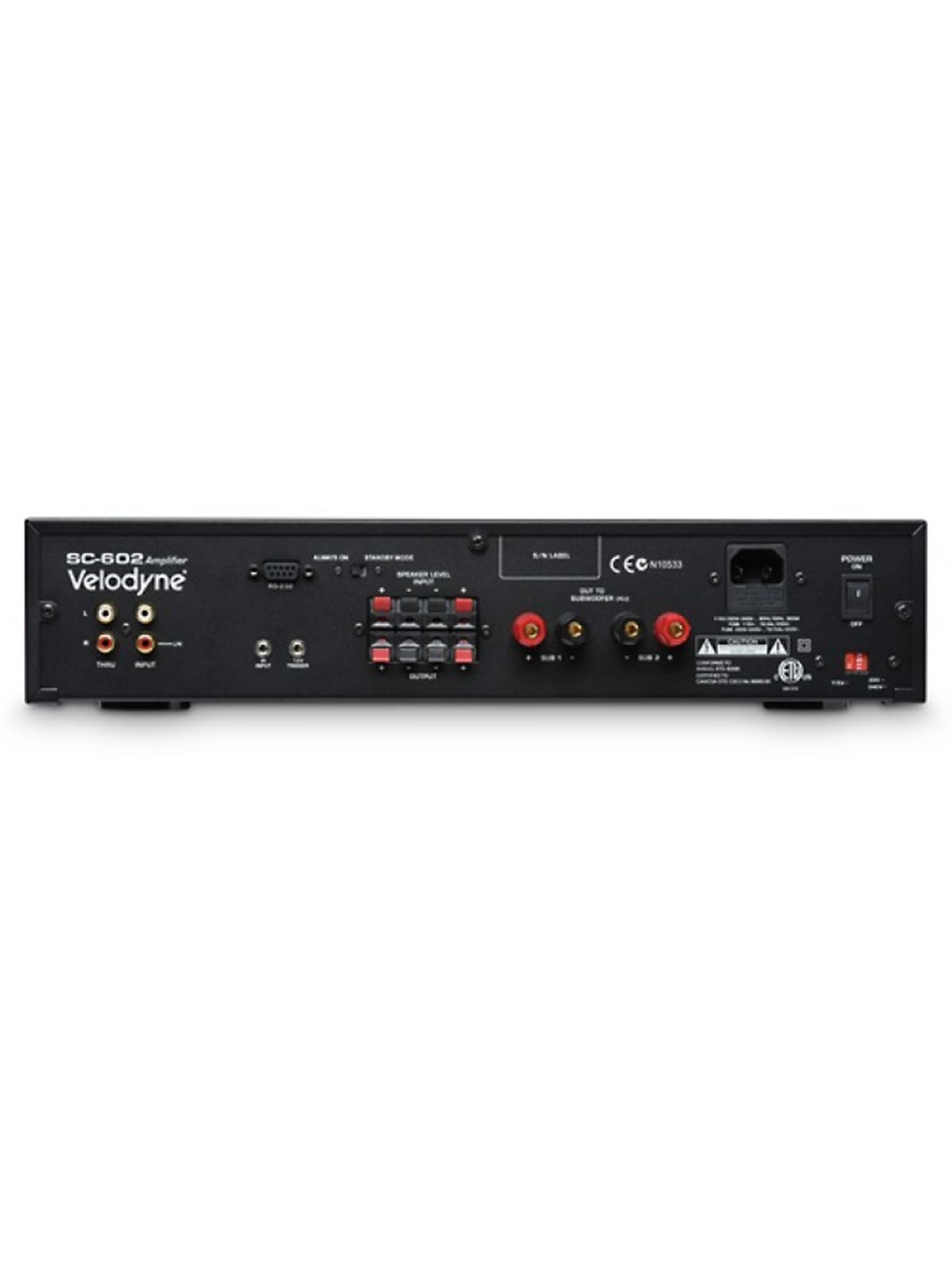

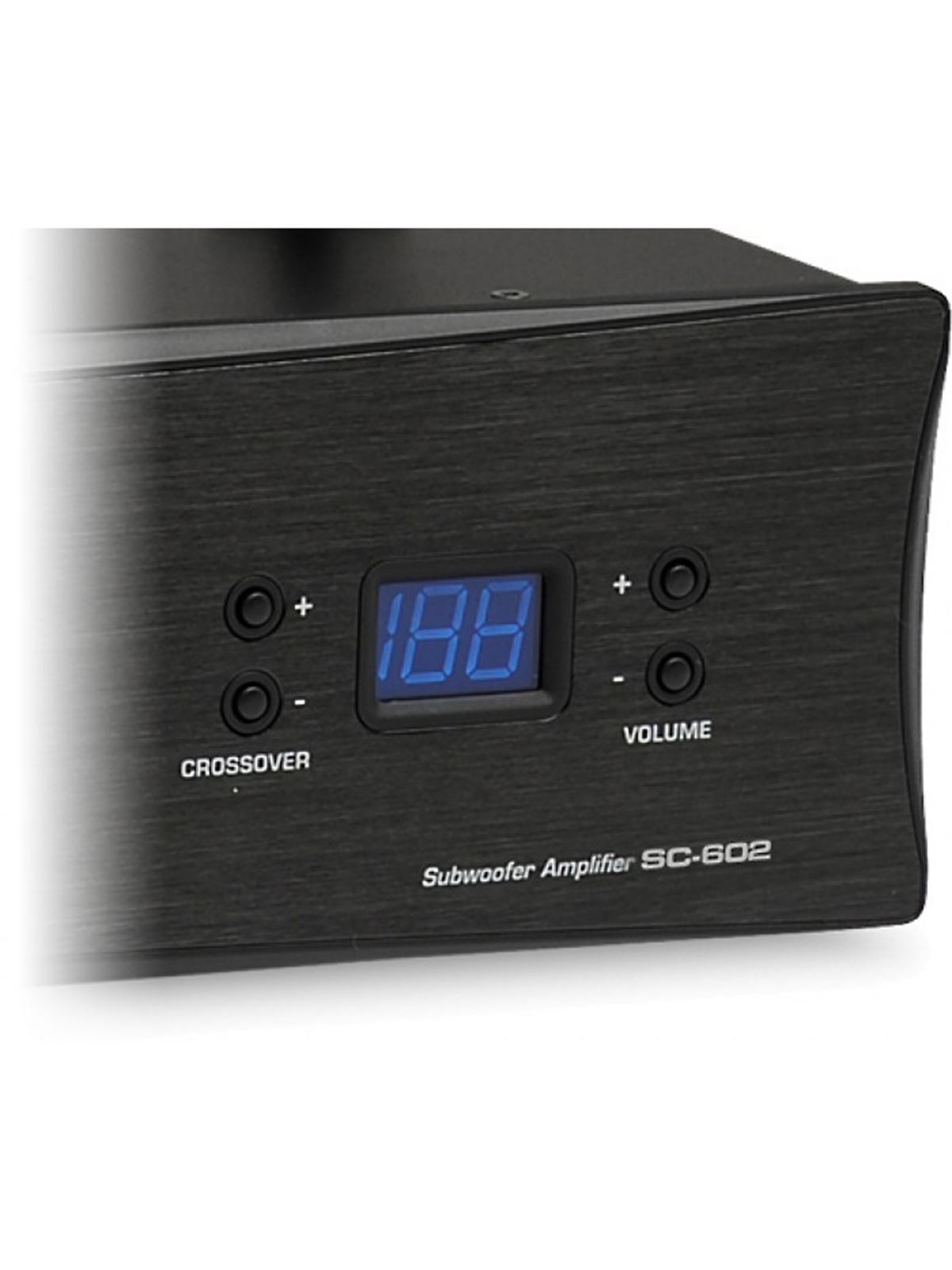

The amplifier front panel has duplicate controls as well as a mic jack for the Auto-EQ function, low pass crossover frequency control, 12-volt trigger, IR repeater jack and an RS-232 control input that is Crestron certified. The crossover can be set from 30 Hz to 160 Hz. The phase can be set to 0, 90, 180 or 270 degrees.



Length: No

Accessories: Mic, Mic Stand, Remote Control

Amplifier: 400W (x2) Dynamic, 200W (x2) RMS Power

Auto On/Off: No

Cabinet Design: N/A

Color: Black

Dimensions: (H/W/D): 3.6" x 17" x 13" (9 x 43.2 x 33 cm) *Allow two extra inches in depth for wire connectors and power cable. *Includes feet. Feet can be removed for rack mount use. Unit is approximately "two rack units" high.

Frequency Response (+/-3 dB): N/A

HiPass Crossover: 80 Hz (6 dB/octave)

LoPass Crossover: 30 Hz-160 Hz, Defeatable, 24 dB/octave slope

Phase Control: 0, 90, 180, 270 Degrees

Removable Grille: No

Shipping Weight: 25 lbs. (22.7 kg)

Size: Large

Voice Coil: N/A

Warranty (N. Am.): Two years (electronics - parts & labor)
