WHAT IS IT?

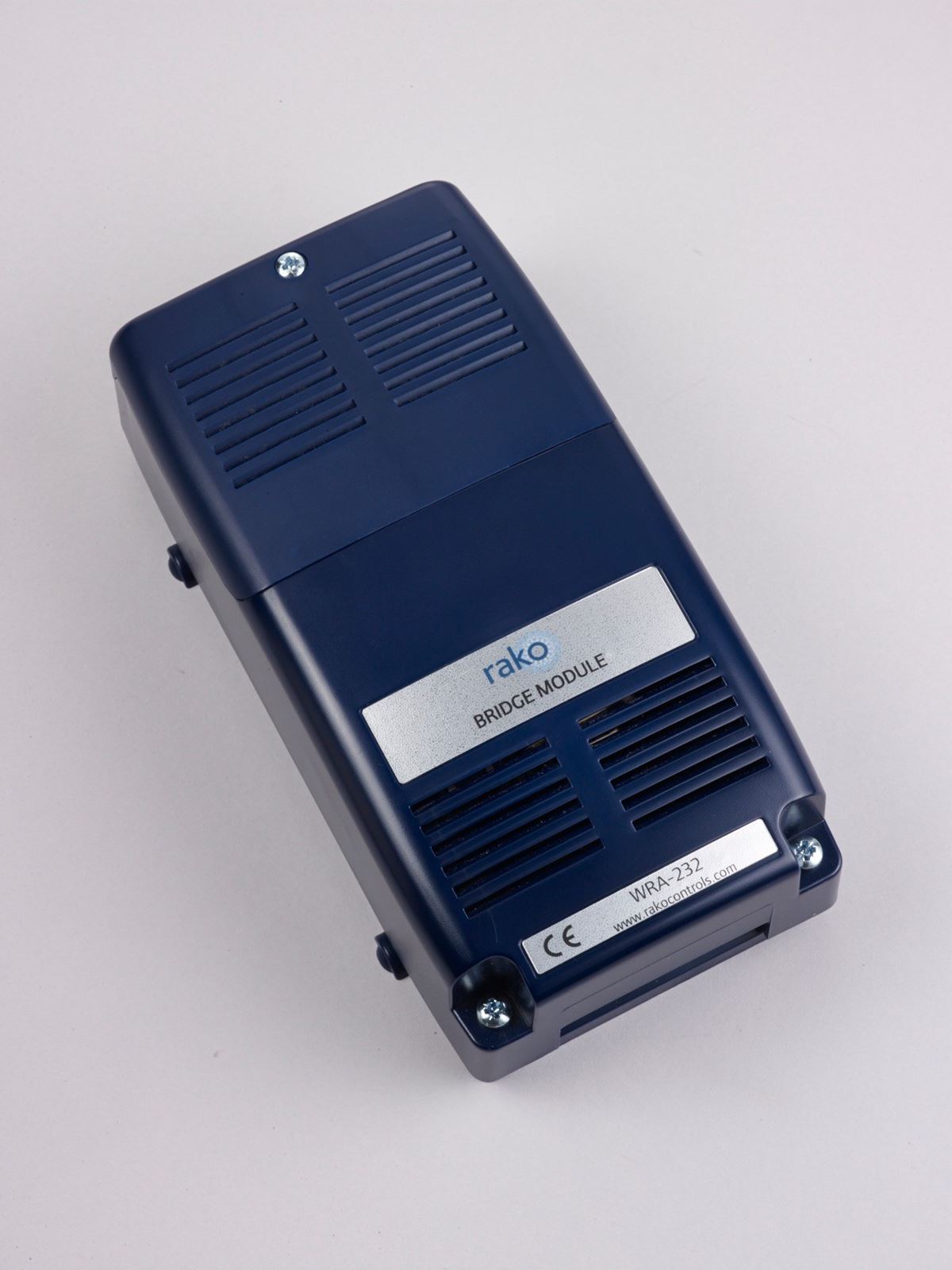

A network interface for use with Rako wired, wireless or combined systems. The WRA- 232 Bridge acts as a bidirectional interface with external control devices via either serial RS232 or Ethernet.
Overview
The WRA-232 Bridge has two parallel bi-directional data connections, RS232 and Ethernet. Messages received on either are repeated to both Rako's wired and wireless network. Similarly, Rako network transmissions (both wired and wireless) are re-transmitted on both the RS232 and Ethernet ports.
Custom Strings
The WRA-232 Bridge has the facility to output custom strings on receipt of a 'trigger' message from a Rako network command. This allows Rako transmission devices to act as controllers for external devices which allow RS232 or IP control.
RS232 Interfacing
The WRA-232 Bridge offers bi-directional RS232 interfacing supporting an ASCII command set documented in Rako's 'RS232 Command Summary' sheet. Standard communication rate of 9600Baud is configurable via the embedded webpage to support 1200Bd, 2400Bd, 19.2kBd, 57.6kBd and 115.2kBd. Data input via 9 Way 'D' socket.
IP Control
IP control is available using either TCP (Telnet), HTTP or UDP. More information on the command format is available in the Rako document 'Accessing the Rako Bridge'.
Technical Specification
Dimensions: 190x100x65mm
Input supply: Powered from RAK-LINK via RJ11 connection or from CAT5 network via optional punch down connector.
Weight: 318g
Housing: ULV0 ABS
Rakom Cable Type: UTP CAT5e or CAT6
Rakom Terminals:
- RJ11 Socket
- Rakom wired network RJ45 Socket
- Ethernet Concentric jack
- Aux power
- 9 way D socket - RS232
Climate range
Temperature: +2C to +40C
Humidity: +5% - 90% non condensing
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
Comunication: Rakom wired network
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£198.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
