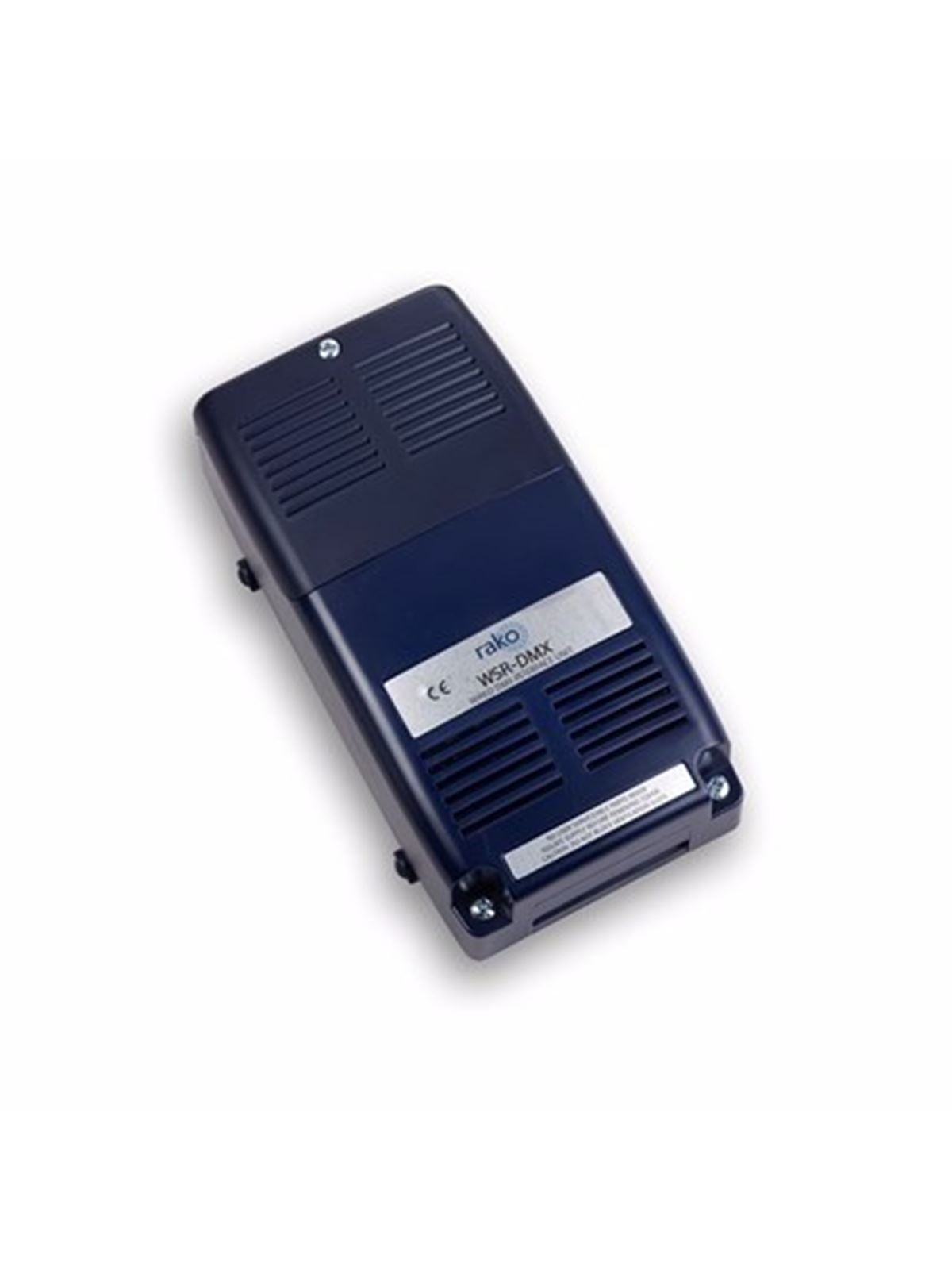

Rako Wired DMX Interface - WSR DMX

WHAT IS IT?

A 15 channel DMX controller for use with the Rako Rakom wired network.

Can be used to control DMX light fittings or interfaces such as colour changing LED drivers and fibre optic Projectors.

DMX Control

Designed to be connected to the Rako Rakom wired network via an RJ11 socket or punch-down Krone connector and control up to 15 channels of DMX512 compatible controllers or light fittings.
The WSRDMX is addressed as a normal dimmer channel and automatically assigns the subsequent channels for DMX use.
The module is fitted with an RJ11 socket and lead and is designed to plug into an RJ11 socket, such as a WPCon or WPConC or be connected to the Rakom data network using the punch-down Krone connector.
DMX connections are available using either screw terminals or an RJ45 socket.

Technical Specification

Dimensions: 190x105x66mm

Weight: 280g

Housing: UL V0 ABS

Climate range

Temperature: +2C to +40C

Humidity: +5% to 95% non condensing

Connections:

Load types: Any DMX512 compatible interface

Maximum load: 15 DMX channels

Standards

Emissions: EN61000-6-3 : 2007

Immunity: EN61000-6-1 : 2007

Memory: Flash memory (non volatile)

Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.

Simplify my Home are Authorised Rako Dealers

Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
Developer/Trade Pricing - Available upon request
Support our clients - We offer on-site support and commissioning.
Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.

£237.60 inc. VAT (1% Cashback available on all purchases via Debit Card)

£198.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
