Monitor Audio Controlled Performance 120W, 8" In Wall LCR Speaker - CP-WT380IDC (Special Order / Discontinued)

Description

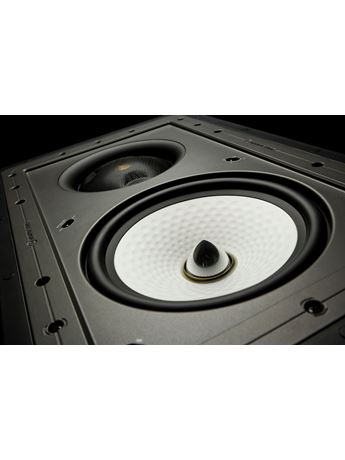

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC®) midrange/tweeter module and 8” RST® c-cam® bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.

Technology

Pivoting IDC c-cam gold dome tweeter.
Pivoting module consisting of IDC midrange driver and c-cam gold dome tweeter.
c-cam bass driver featuring Rigid Surface Technology (RST).
High overall efficiency.
High frequency level adjustment (+/-3dB).
Midrange frequency level adjustment.
Boundary compensation controls.
Die-cast aluminium front baffle.
Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Specification

Frequency Response: 50 Hz - 30 kHz

Power Handling (RMS): 120 W

Controls: HF Level Switch (+3dB / 0dB / -3dB) MF Level Switch (+3dB/ 0dB/ -3dB) Boundary Compensation Switch

Mounting Depth: 99 mm (3 7/8 inches)

Overall Dimensions:(including grille) (H x W): 472.5 x 303.5 mm (18 5/8 x 11 15/16 inches)

Pre-Construction Bracket: WB10 (Light Brown)

Impedance (nominal): 6 Ohms

Recommended Amp Requirements: 30 - 120 W

Overall Depth:(including grille): 106 mm (4 3/16 inches)

Sensitivity: (1W@1M) 89 dB

Drivers Unit Complement: 3-way 8˝ c-cam® cone bass driver 4˝ c-cam IDC® cone mid range driver 1˝ c-cam gold dome tweeter (tweeter & midrange driver combined in a pivoting module)

Cut Out Dimensions:(H x W): 438 x 269 mm (17 1/4 x 10 9/16 inches)

Construction Material: Mineral filled ABS Plastic,(RoHS compliant)

Maximum SPL: 109.6 dBA

Fixing Type: 6 position Tri-Grip® dog leg fixings

Crossover Frequency: / Slope Bass low pass: 300 Hz @ 6 dB / Octave Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave

Weight: 5.62kg (12lb 6oz)

Template : Download

Brochure : Download
