Description

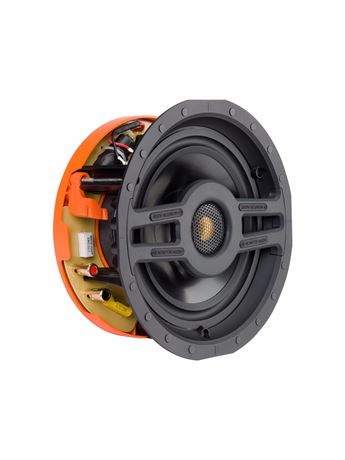

The CS180 in-ceiling model marries our 8-inch mmp II driver with the CWT family’s pivoting c-cam Gold Dome tweeter. Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.
Please specify a round or square grille option when ordering.
Specification
Frequency Response: 48Hz - 30kHz
Power Handling (RMS): 120 W
Overall Size: Round: 251.7mm (9 15/16”) Square: 246.7 x 246.7mm (9 11/16 x 9 11/16”)
Cable Connection: Gold plated ‘push’ type terminals
Pre-Construction Bracket: CB6 (Purple)
Impedance (nominal): 6 Ohms
Recommended Amp Requirements: 30 - 120 W
Mounting Depth: 99.4mm (3 15/16”)
Grille Attachment: Magnetic
Sensitivity (1W@1M): 90 dB
Drivers Unit Complement: 1 x 8”
mmp®II cone bass driver. 1 x 1” (25mm)
c-cam® pivoting gold dome tweeter
Cut-out Hole Diameter: 170mm (6 11/16”)
Construction Material: Mineral filled ABS, RoHS compliant
Maximum SPL (single unit in free space): 110.6 dBA
Acoustic Configuration: 2 way
Fixing Type: 3 position Tri-Grip® dog leg fixings
Weight: 2.72kg (6lb)
