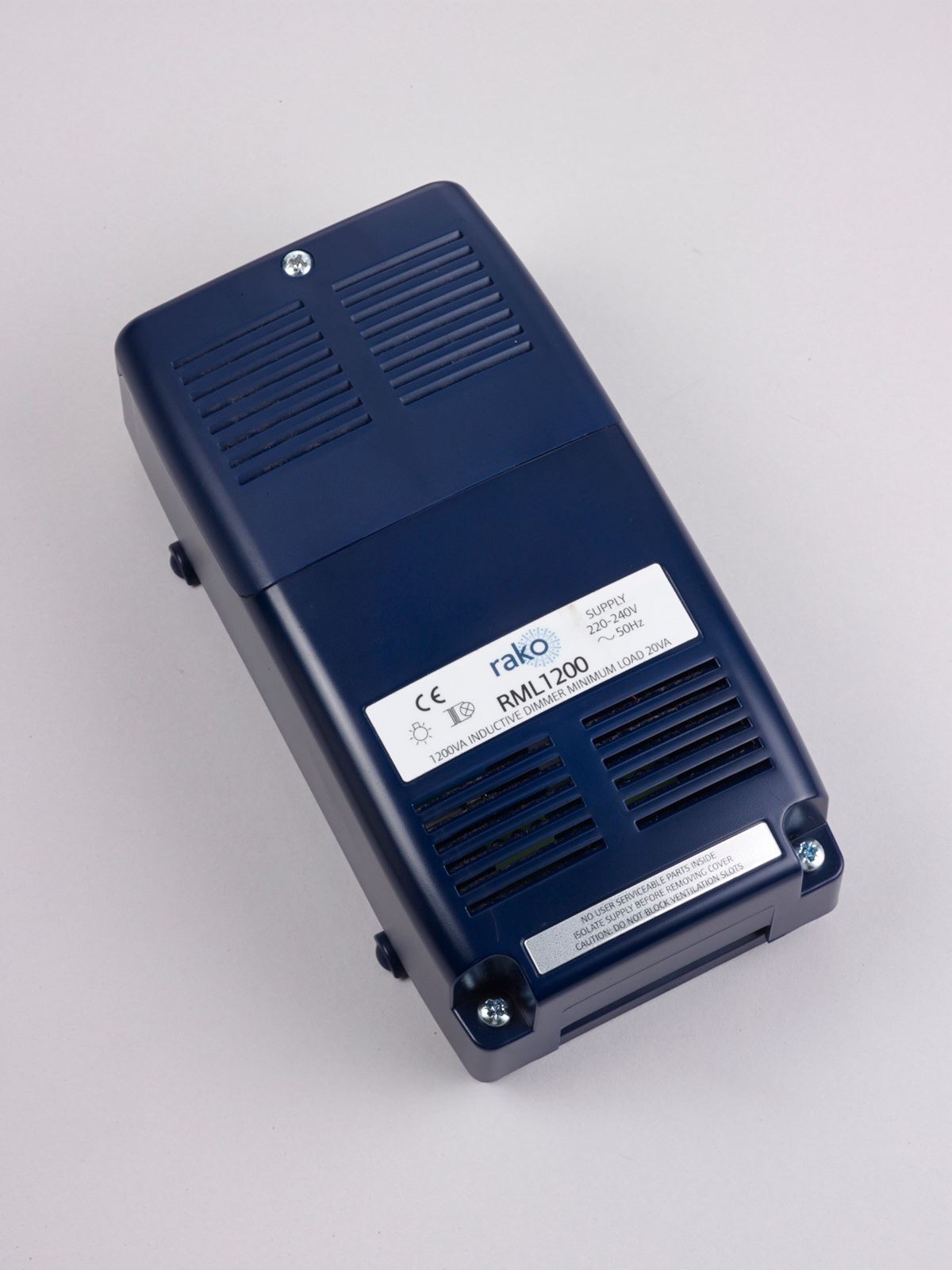

Rako Wireless 1200W in-line RF dimmer for Tungsten, Low Voltage Halogen and other leading edge dimmable loads - RML1200


trade price available
WHAT IS IT?
The RML1200 in-line RF dimmer for Tungsten, Low Voltage Halogen and other leading edge dimmable loads
A compact 1200w RF dimmer designed to be mounted in a ceiling void using an access panel or wall mounted in an electrical cupboard.
The dimmer is connected in-line before the first light fitting, to enable dimming of up to 1200w of leading edge dimmable loads.
Controlled from any Rako Rakom RF device, for example the RCM/RCP push button RF wall plate
In Control
Designed to fit in a ceiling void using an access panel or an electrical cupboard, the RML1200 inductive dimmer can control up to 1200 watts of mains dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.

With protection features such as field replaceable fuse, over-temperature and voltage surge protection.
Programmed using either an RCP/RCM RF wallplate or the RASOFT PC Software suite, the unit stores the House, Room and Channel address plus 16 preset scene levels in non volatile memory.

The RML1200 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds, Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specification
Dimensions: 190x105x66mm
Input supply: 230V AC +/-10% 50Hz
Weight: 555g
Housing: UL V0 ABS
Climate range
Temperature: +2C to +40C
Humidity: +5% - 95% non condensing

Connections: 3 way screw terminals for mains power
Protection
  • Replaceable fuse protection
  • Auto thermal shutdown
  • Voltage surge protection
Load Types:
Minimum Load: 20w
Maximum Load:  1200VA Refer to Rako when dimming GU10 style LEDs
Terminal Sizes
  • 2.5mm2 Stranded
  • 4mm2 Solid
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
Cable entry: Bottom
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile) Firmware upgrades via RASOFT programming Software
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
  • Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
  • Developer/Trade Pricing - Available upon request
  • Support our clients - We offer on-site support and commissioning.
  • Confidence in Quality - Our Rako Specialist  has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£231.60 inc. VAT (1% Cashback available on all purchases via Debit Card)
£193.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
