Rako Wireless 250W in-line RF dimmer for Tungsten, Low Voltage Halogen and other leading edge dimmable loads - RML-250


trade price available
WHAT IS IT?

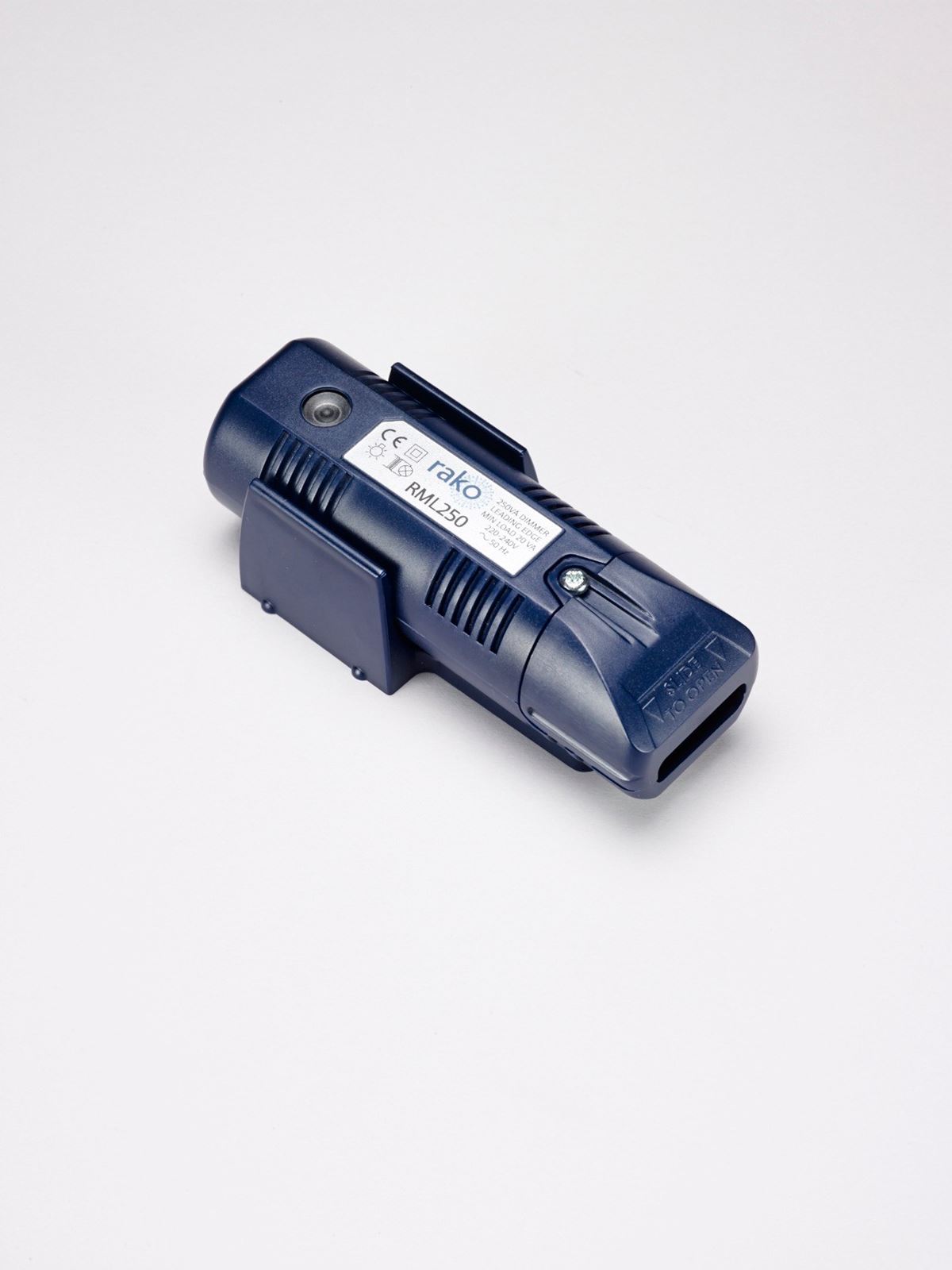

The RML250 in-line RF dimmer for Tungsten, Low Voltage Halogen and other leading edge dimmable loads
 A compact 250w RF dimmer designed to fit through the aperture of a standard low voltage down light fitting.
The dimmer is connected in-line before the first light fitting, to enable dimming of up to 250w of leading edge dimmable loads.
Controlled from any Rako Rakom RF device, for example the RCM/RCP push button RF wall plate.
In Control
Designed to fit in a ceiling void or cupboard, the RML250 inductive dimmer can control up to 250 watts of mains dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.
With protection features such as field replaceable fuse, over-temperature and voltage surge protection.

Programmed using either an RCM/RCP RF wallplate or the RASOFT PC Software suite, the unit stores the House, Room and Channel address plus 16 preset scene levels in non volatile memory.

The RML250 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand-helds and Bridge modules and is the ideal accessory to any Rako scene-set system.
Technical Specification
Dimensions: 138x46x40mm
Input supply: 230V AC +/-10% 50Hz
Weight: 125g
Housing: UL V0 material
Climate range
Temperature: +2C to +40C
Humidity: +5% - 95% non condensing
Connections
  • 3 way screw terminals for mains SUPPLY power  (LNE)
  • 3 way screw terminals for Dimmed LOAD output (LNE)
Protection:
  • Field replaceable fuse
  • Auto Thermal Shutdown
  • Voltage Surge Protection
Load Types
Minimum Load: 20w
Maximum Load:  250VA Refer to Rako when dimming GU10 style LEDs
Terminal Sizes
  • 2.5mm2 Stranded
  • 4mm2 solid
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001

Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile) Firmware upgrades via RASOFT programming Software
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
  • Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
  • Developer/Trade Pricing - Available upon request
  • Support our clients - We offer on-site support and commissioning.
  • Confidence in Quality - Our Rako Specialist  has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£123.60 inc. VAT (1% Cashback available on all purchases via Debit Card)
£103.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
