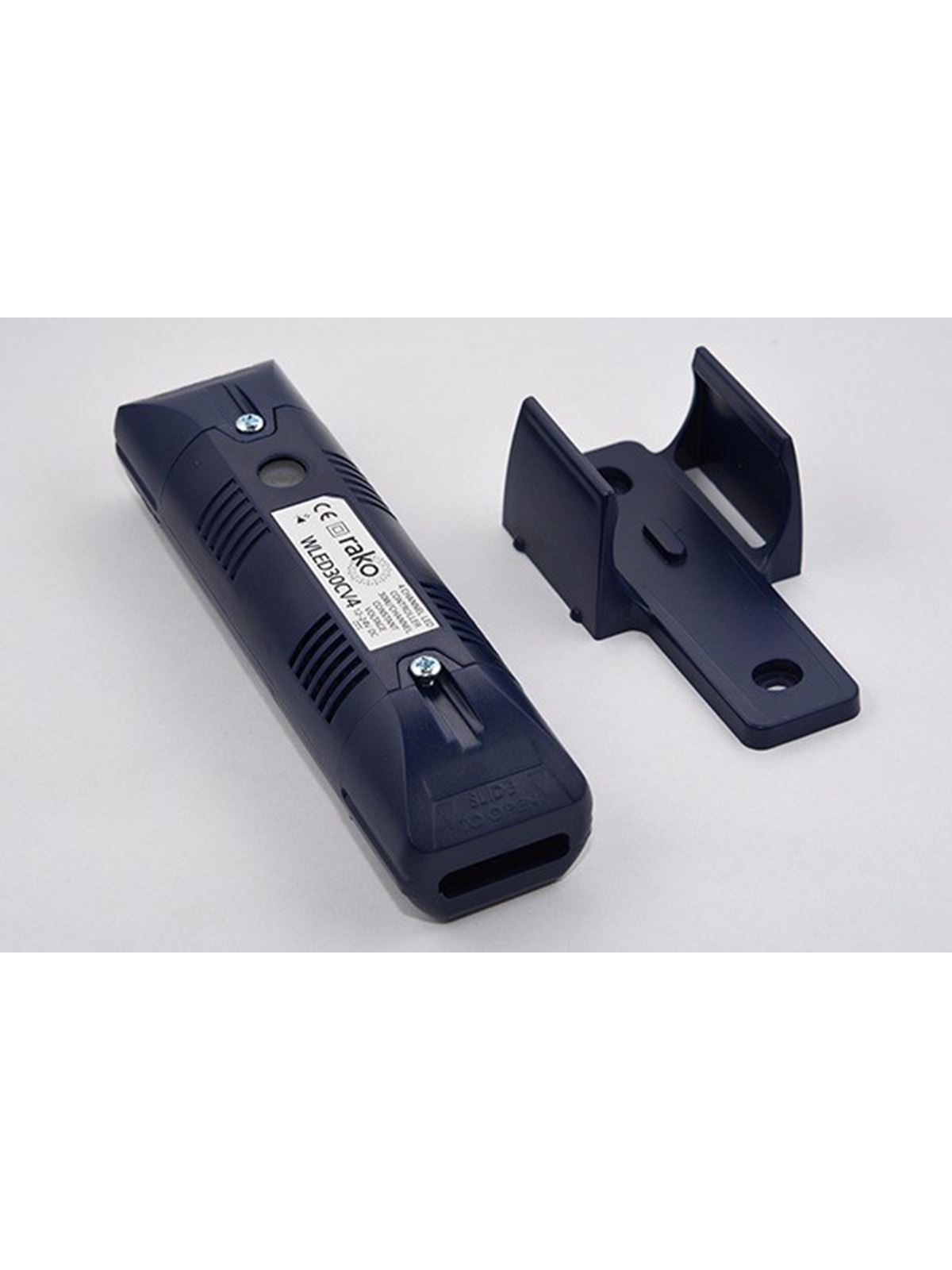

Rako Wired Four Channel, 30w/Channel (RGB + White) Constant Voltage Led Dimmer - WLED30CV4

When used with RGBW fittings each colour is allocated a channel and can be individually adjusted allowing complete colour mixing.
Simple colour cycling is started/stopped using the fade commands (raise/lower).
Controlled from any Rako Wired device, e.g. WCM,WAPIR or from wireless devices via a WA/WTC-Bridge or a WRB100.

• Designed for use with 3 or 4 channel constant voltage LED fittings and 3 or 4 channel LED tape light with common +ve and individual -ve connections.
• Maximum wattage of 120w when used as 4 channel or 90w with 3 channel for 12V d.c. fittings or 240w (60w per channel) for 24V d.c. fittings.
• Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
• Programmed using the RASOFT PC Software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
• Connection to the Rakom wired network can be via the RJ11 lead,plugging into a RAKLink or RAKStar unit.
• Alternatively a WPCON or WPCONC unit can be used as a remote plug in connection point.
• Installing a Bridge or WRB100 as part of the wired system will allow the WLED30CV4 to receive commands from wireless devices as part of a "combined” or "hybrid” system.

• 12V/24V DC power supply depending on load
• 12-18V DC supply from Rako wired network for control

• 2 way screw terminals for 12-24v DC supply
• 6 way screw terminals for load connections

• Reverse polarity input protection
• Output current limit protection

• 1W per channel Min
• 12V DC 3 channel @90W Max
• 12V DC 4 channel @120W Max
• 24V DC 3 channel @180W Max
• 24V DC 4 channel @240W Max
