WHAT IS IT?
A compact single channel 150W constant voltage LED dimmer with in-built wired receiver and Rako processor for control of single channel constant voltage LED fittings.
Controlled from any Rako Wired device, e.g. WCM, WAPIR or from wireless devices via a WA/WTC-Bridge or a WRB100.

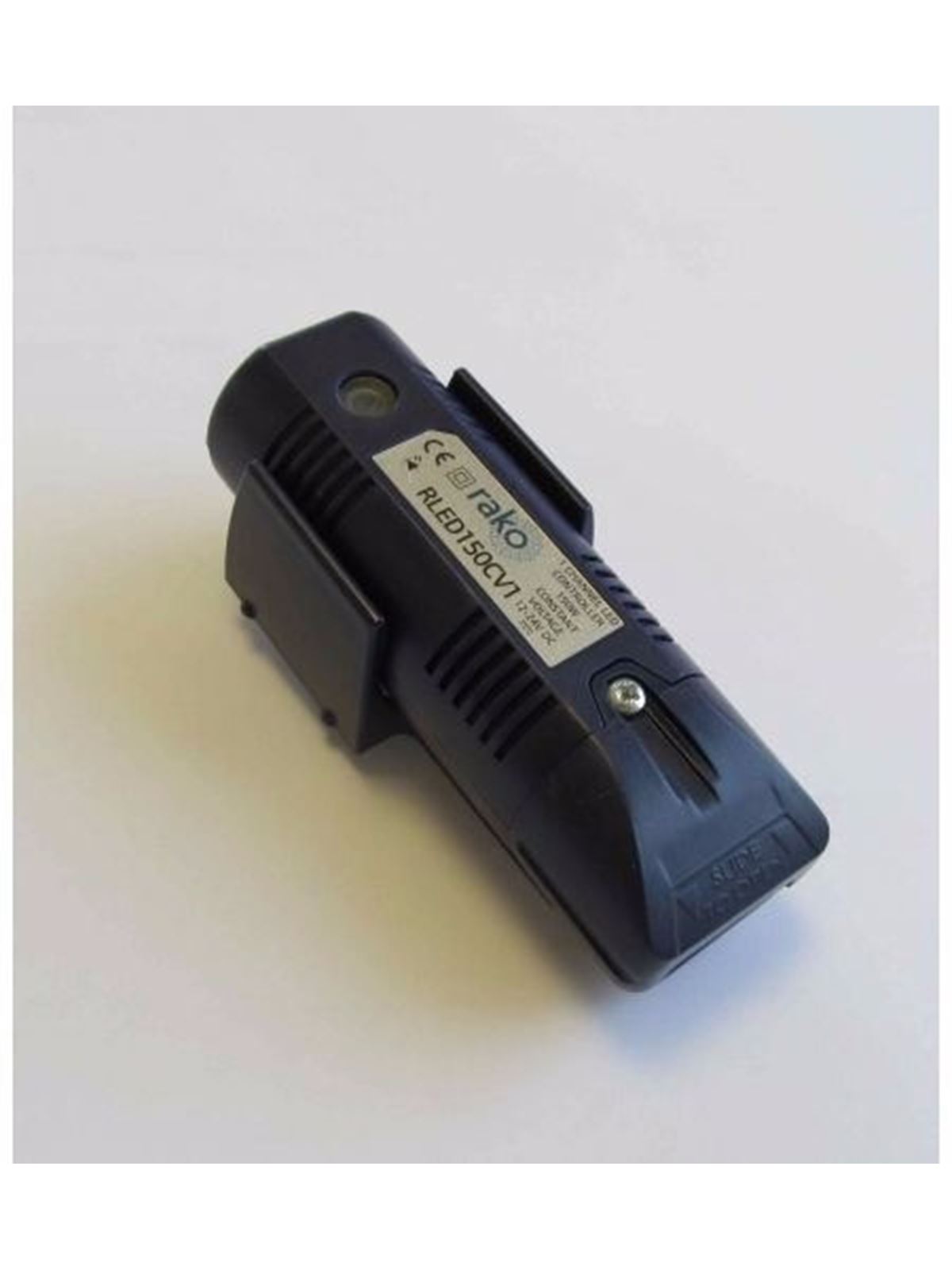

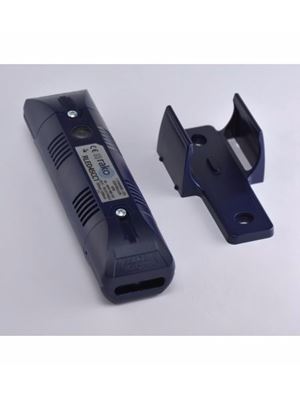

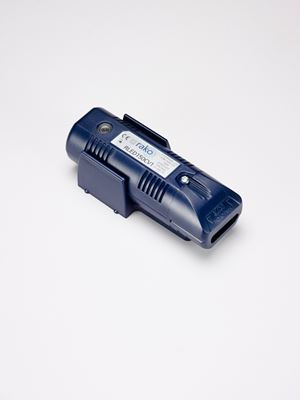

WLED75CV1 Wired 150w Constant Voltage Led Dimmer
- Designed for use with single channel constant voltage LED fittings and single channel LED tape light.
- Maximum wattage of 150W for 12V d.c. fittings or 300w for 24V d.c.fittings.
- Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
- Programmed using the RASOFT PC Software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
- Connection to the Rakom wired network can be via the RJ11 lead,plugging into a RAKLink or RAKStar unit. Alternatively a WPCON or WPCONC unit can be used as a remote plug in connection point.
- Installing a Bridge or WRB100 as part of the wired system will allow the WLED150CV1 to receive commands from wireless devices as part of a "combined” or "hybrid” system.
For more information on dimming LEDs refer to Rako's application sheet'Controlling LED Lighting With Rako Dimmers and Modules'.
Technical Specification
Input supply:
- 12V/24V DC power supply depending on load
- 12-18V DC supply from Rako wired network for control
Dimensions: 172x46x40mm
dali connections: 4 way screw terminal for loop in loop out
Weight: 175g
Housing: UL V0 ABS
Climate range
Temperature: +2C to +40C
Humidity: +5% to 95% non condensing
Connections
- 2 way screw terminals for 12-24v DC supply
- 2 way screw terminals for load connections
Load types: Single channel constant voltage LED fittings and tape
Min/max loads
Min: 1W
Max: 150W @ 12V DC 300W @ 24V DC
Protection
- Reverse polarity input protection
- Output current limit protection
Standards
Emissions: EN61000-6-3 : 2007
Immunity: EN61000-6-1 : 2007
Terminal sizes: 4 mm2
Communication: Rakom Wired Network
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
