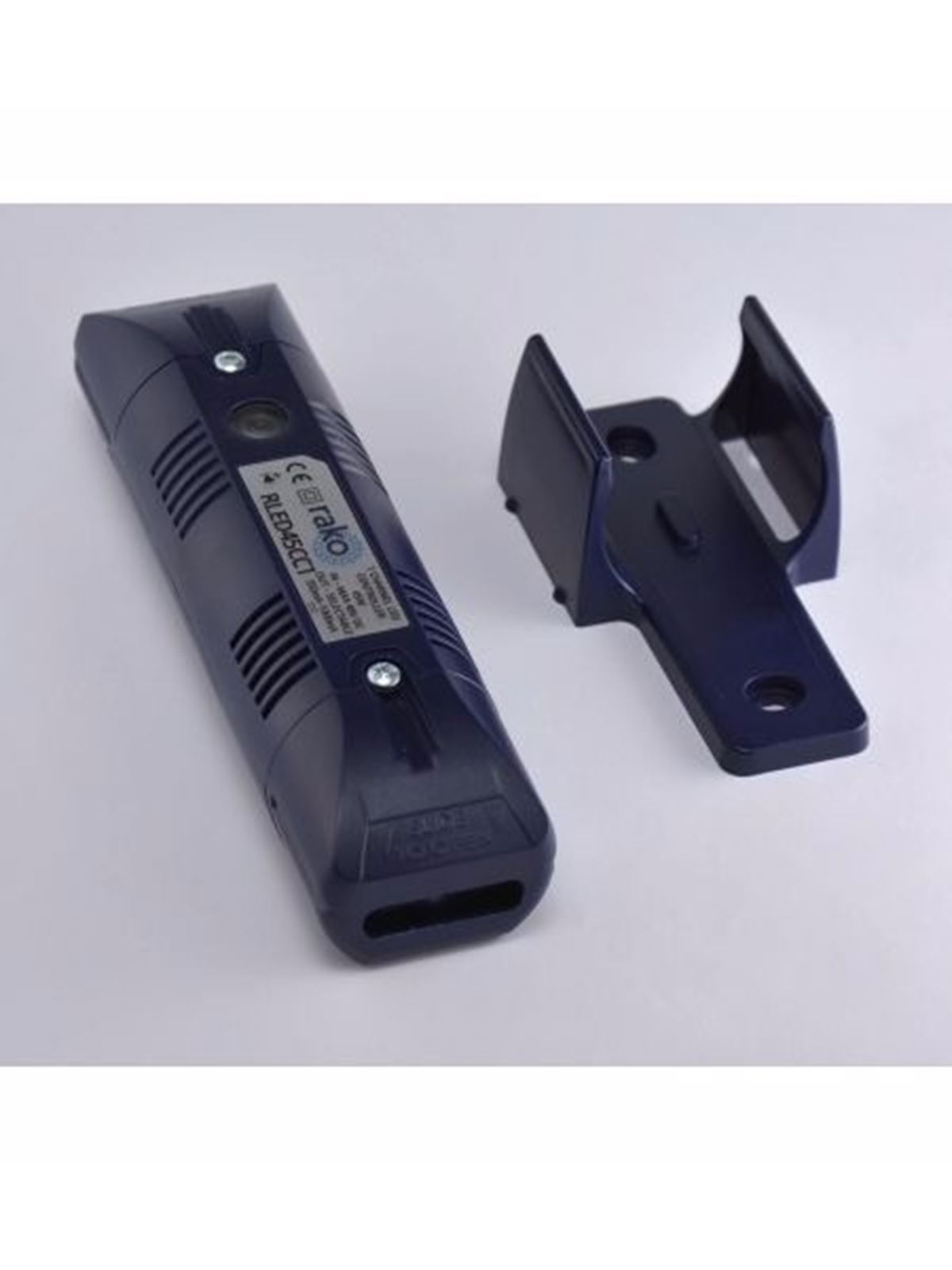

Rako Wireless 75w Constant Voltage LED Dimmer RLED75CV1

A compact single channel 75W constant voltage LED dimmer with in-built RF receiver and Rako processor for control of single channel constant voltage LED fittings.
Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units.

• Designed for use with single channel constant voltage LED fittings and single channel LED tape light.
• Maximum wattage of 75w for 12V d.c. fittings or 150w for 24V d.c. fittings. Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
• Programmed using either an RCM/RCP RF wallplate or the RASOFT PC Software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
• The RLED75CV1 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.

For more information on dimming LEDs refer to Rako's application sheet 'Controlling LED Lighting With Rako Dimmers and Modules'.

• 2 way screw terminals for 12-24v d.c. supply.
• 4 way screw terminals for load connections.

• Reverse polarity input protection.
• Output current limit protection.
