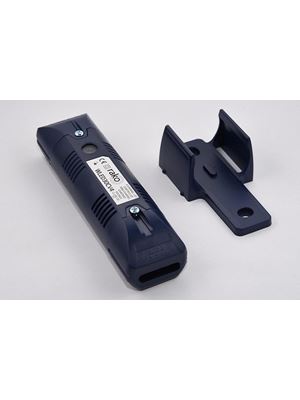

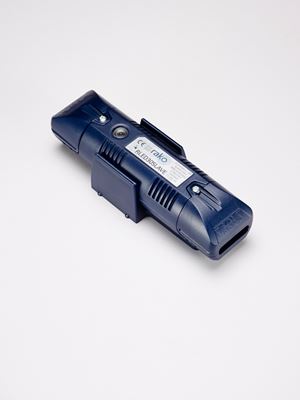

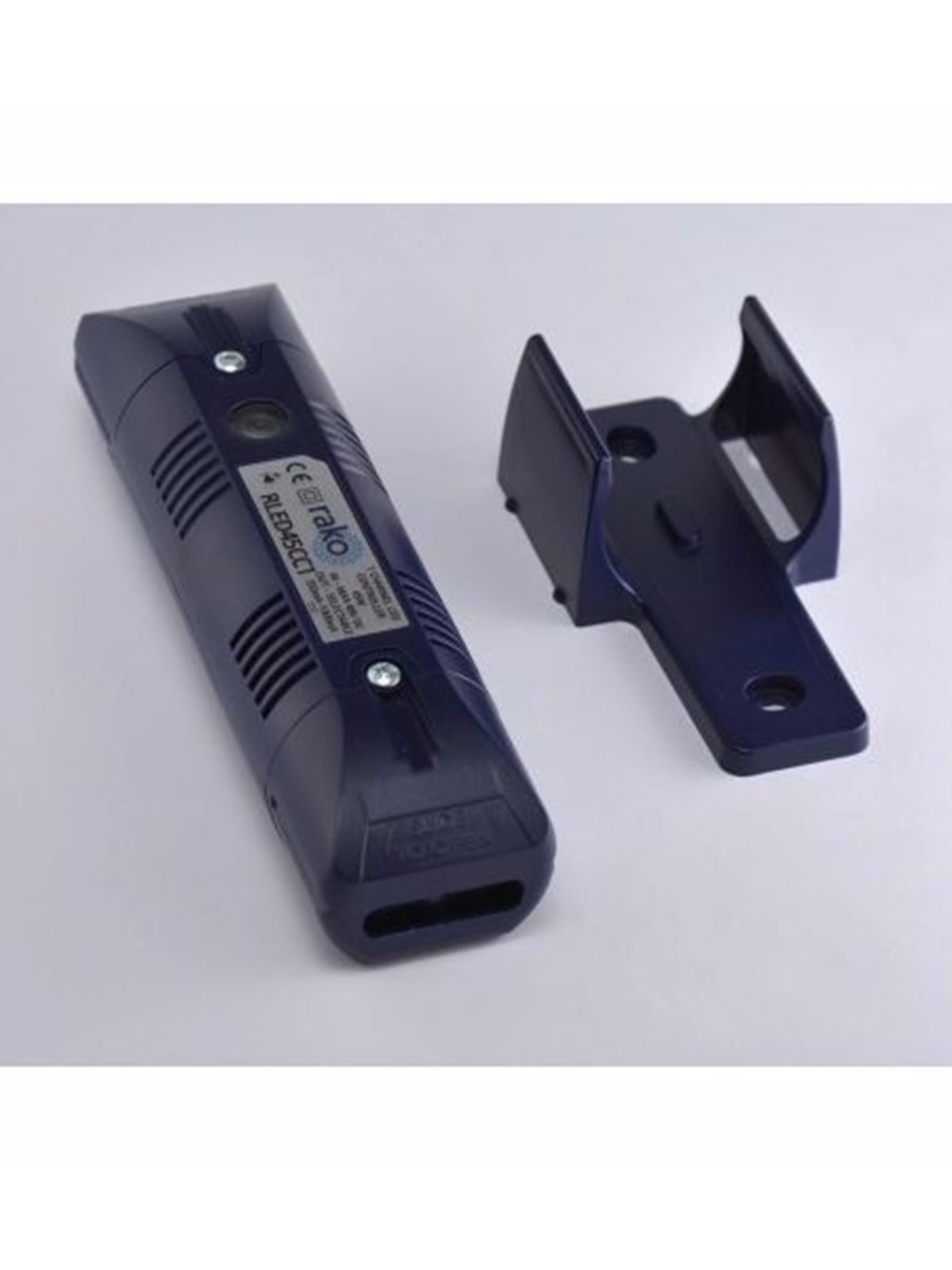

Rako Wireless Four Channel 30/60w/Channel (RGBW) Constant Voltage LED Dimmer - RLED30CV4

A compact 4 channel 30W per channel, constant voltage LED dimmer with in-built RF receiver and Rako processor for control of 4 channel constant voltage LED fittings.
When used with RGBW fittings each colour is allocated a channel and can be individually adjusted allowing complete colour mixing. Simple colour cycling is started/stopped using the raise/lower buttons in a Rako wallpanel or hand held remote.
Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units.

• Designed for use with 3 or 4 channel constant voltage LED fittings and 3 or 4 channel LED tape light with common +ve and individual -ve connections. Maximum wattage of 120w when used as 4 channel or 90w with 3 channel for 12V d.c. fittings or 240w (60w per channel) for 24V d.c. fittings.
• Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
• Programmed using either an RCM/RCP RF wallplate or the RASOFT PC Software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory
• The RLED30CV4 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH handhelds and Bridge modules and forms the foundation of any Rako scene-set system. For more information on dimming LEDs refer to Rako's application sheet 'Controlling LED Lighting With Rako Dimmers and Modules'.

• 2 way screw terminals for 12-24v d.c. supply.
• 6 way screw terminals for load.

• Reverse polarity input protection.
• Output current limit protection.
