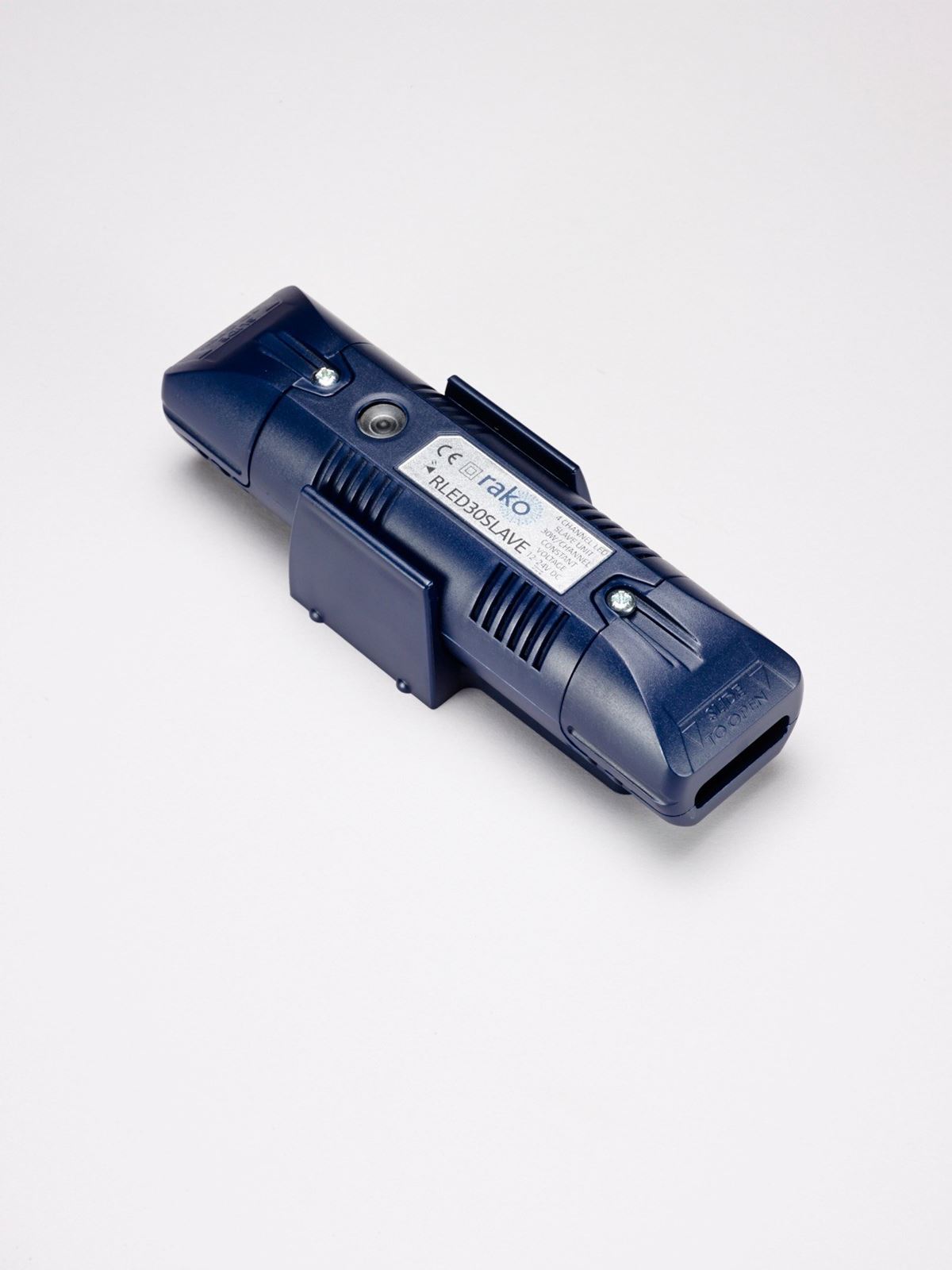

Rako Wireless Unit for use With RLED30CV4 Modules - RLED30SLAVE

A repeater module for use with RLED30CV4 units. The RLED30Slave allows the capacity of an RLED30CV4 to be extended where long runs of 3 or 4 colour LED constant voltage tape are being used.

The RLED30Slave is designed to work with RLED30CV4 modules where the length of tape exceeds the capacity of the RLED30CV4. The RLED30Slave is fed the output signal from the RLED30CV4 and allows a further length of tape to be controlled from the same base RLED30CV4 unit. This method of slaving is more cost effective than having multiple RLED30CV4 units but importantly allows colour cycling to remain in sync where multiple RLED30CV4 units may drift due to slight differences in the internal clocks.

Dimensions: 172x46x40mm

Input Supply: 12 or 24vDC

Weight: 159g

Housing: UL V0 ABS

Temperature: +2C to +40C

Humidity: +5% - 95% non condensing

Load types: 3 or 4 colour constant voltage LED tape.

Minimum load: N/A

Maxim load: 30w per channel

Terminal sizes: 4mm2

Emissions: EN61000-6-3 : 2007

Immunity: EN61000-6-1 : 2007

Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
