WHAT IS IT?

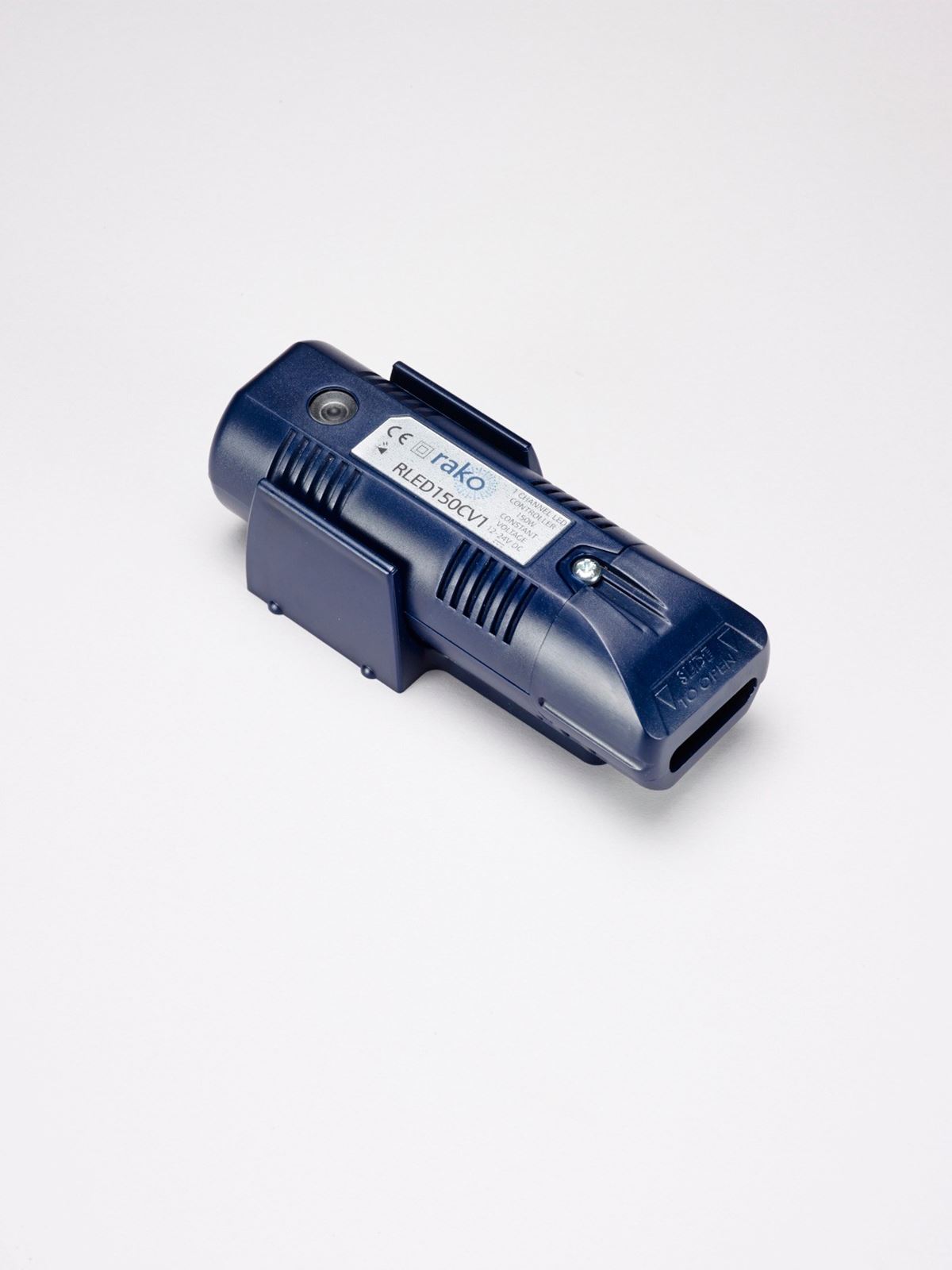

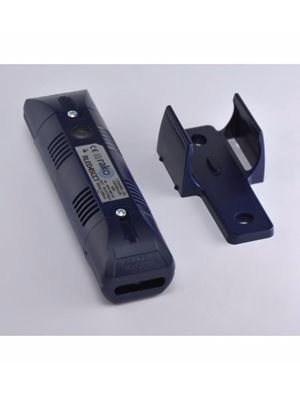

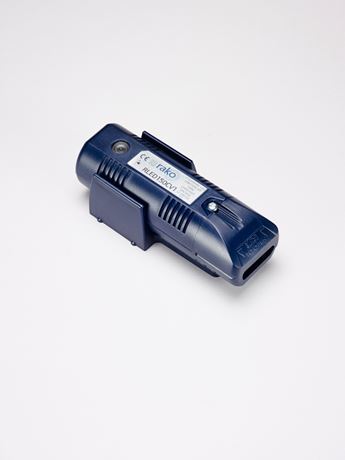

A compact single channel 150W @ 12v or 300w @ 24v constant voltage LED dimmer with in-built RF receiver and Rako processor for control of single channel constant voltage LED fittings.
Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units.
In Control
- Designed for use with single channel constant voltage LED fittings and single channel LED tape light.
- Maximum wattage of 150w for 12V d.c. fittings or 300w for 24V d.c. fittings. Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a nondimming application).
- Programmed using either an RCM/RCP RF wallplate or the RASOFT PC Software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
- The RLED150CV1 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
- For more information on dimming LEDs refer to Rako's application sheet 'Controlling LED Lighting With Rako Dimmers and Modules'.
Technical Specification
Dimensions: 138x46x40mm
Input Supply: 12 or 24vDC
Weight: 107g
Housing: UL V0 ABS
Climate range:
Temperature: +2C to +40C
Humidity: +5% - 95% non condensing
Connections
- 2 way screw terminals for 12-24v d.c. supply.
- 4 way screw terminals for load connections.
Protection:
- Reverse polarity input protection.
- Output current limit protection.
Load types: Single channel constant voltage LED fittings and tapelight.
Minimum load: N/A
Maxim load: 150w @ 12v d.c. or 300w @ 24v d.c.
Terminal sizes: 4mm2
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
Comunication: Rakom coded fm radio, 433.9MHz
Flash Memory: Flash memory non volatile
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£186.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
