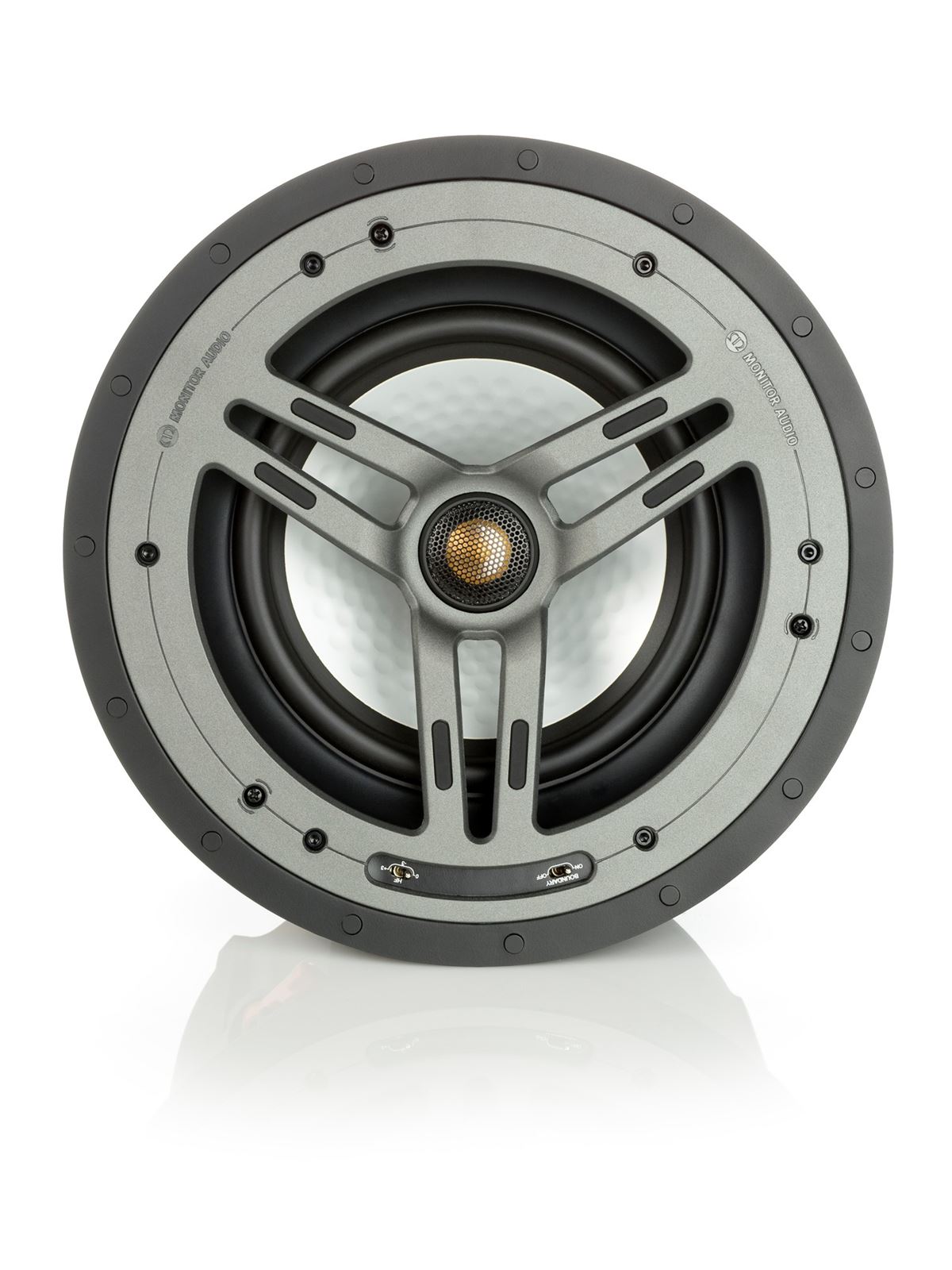

Description

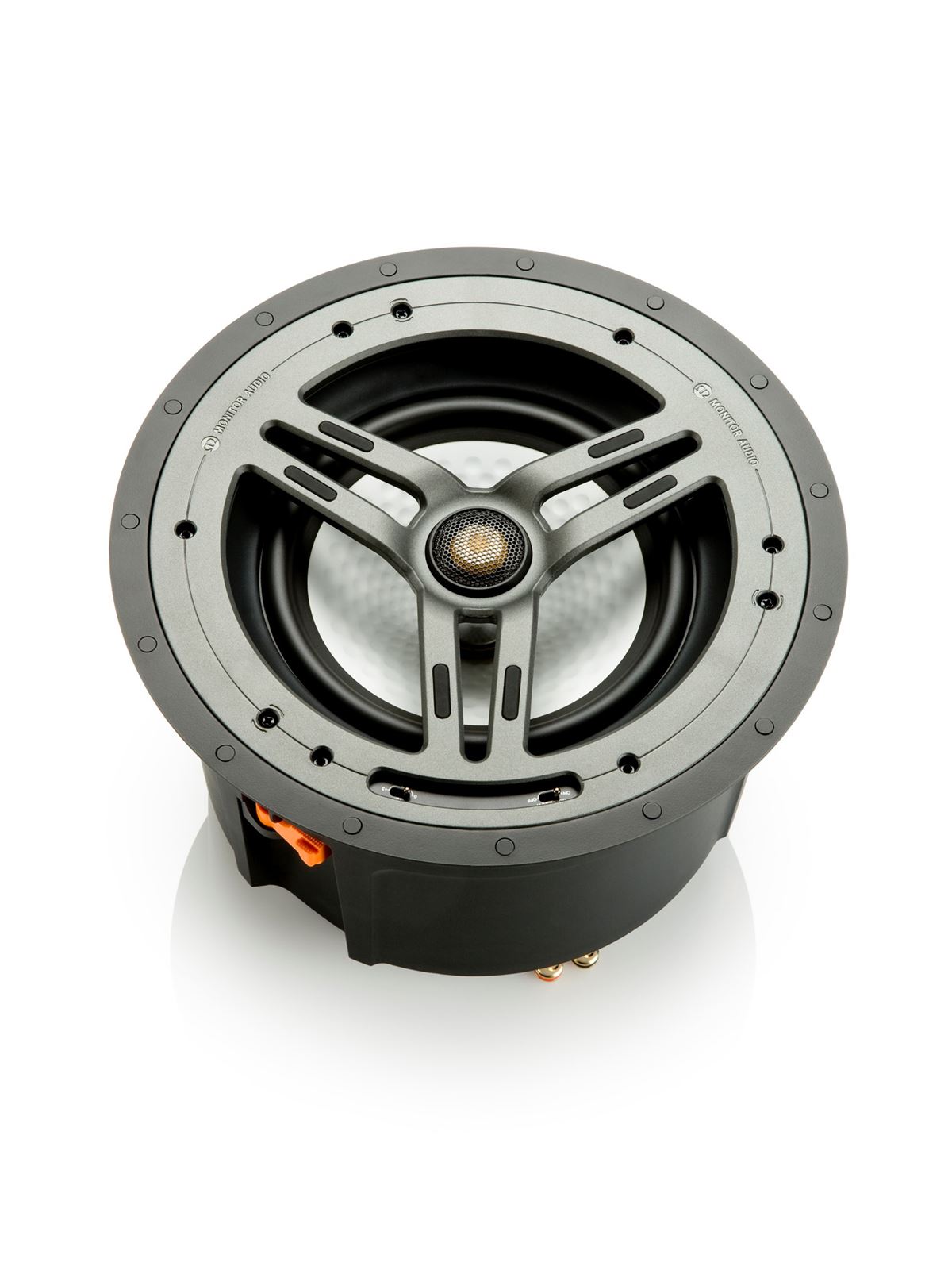

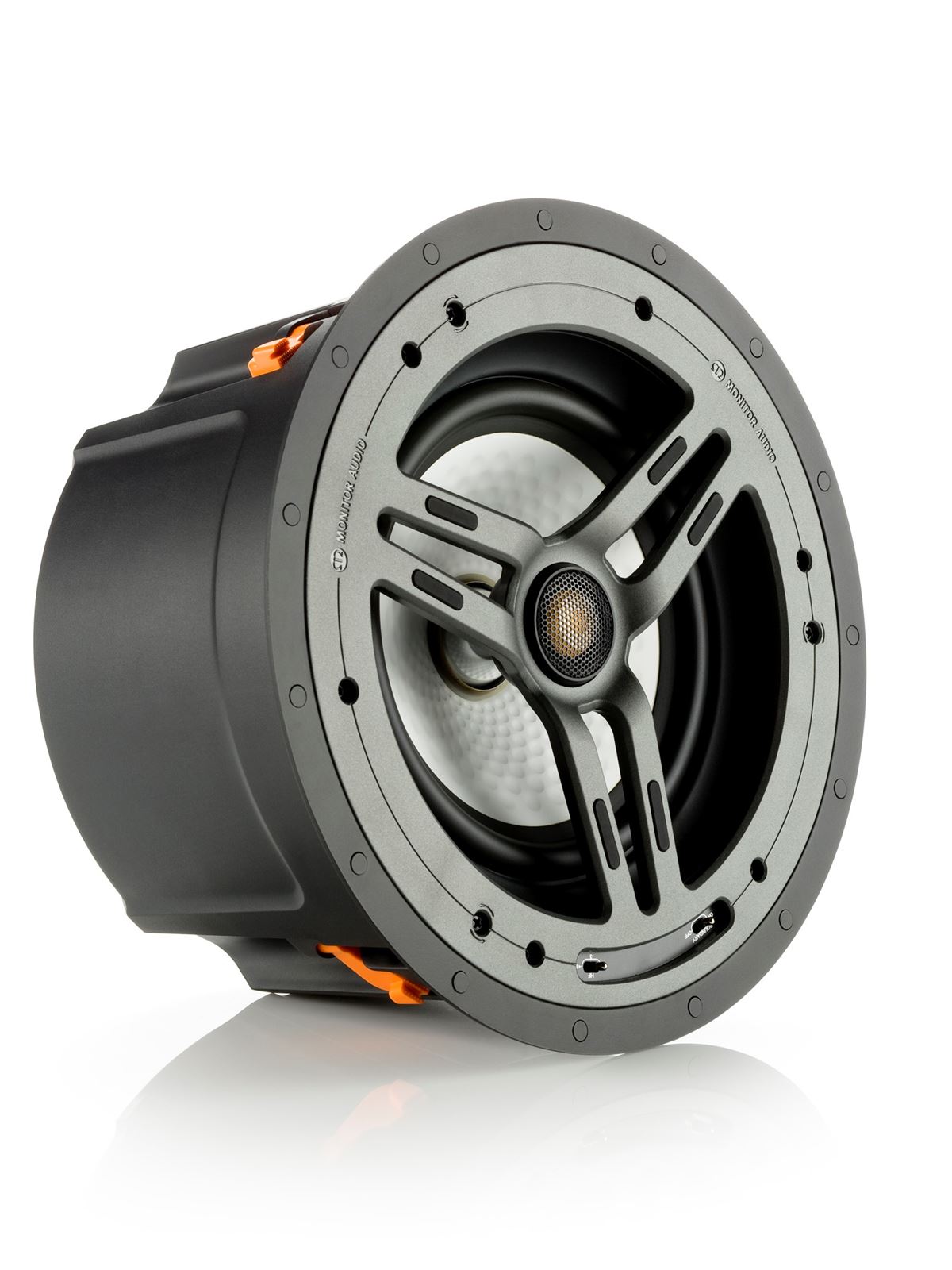

Alongside a pivoting
c-cam® tweeter, the CP-CT380 model introduces a powerful 8”
c-cam bass driver featuring the Rigid Surface Technology (RST®) cone surface employed by our range-topping home audio speaker systems.
Technology

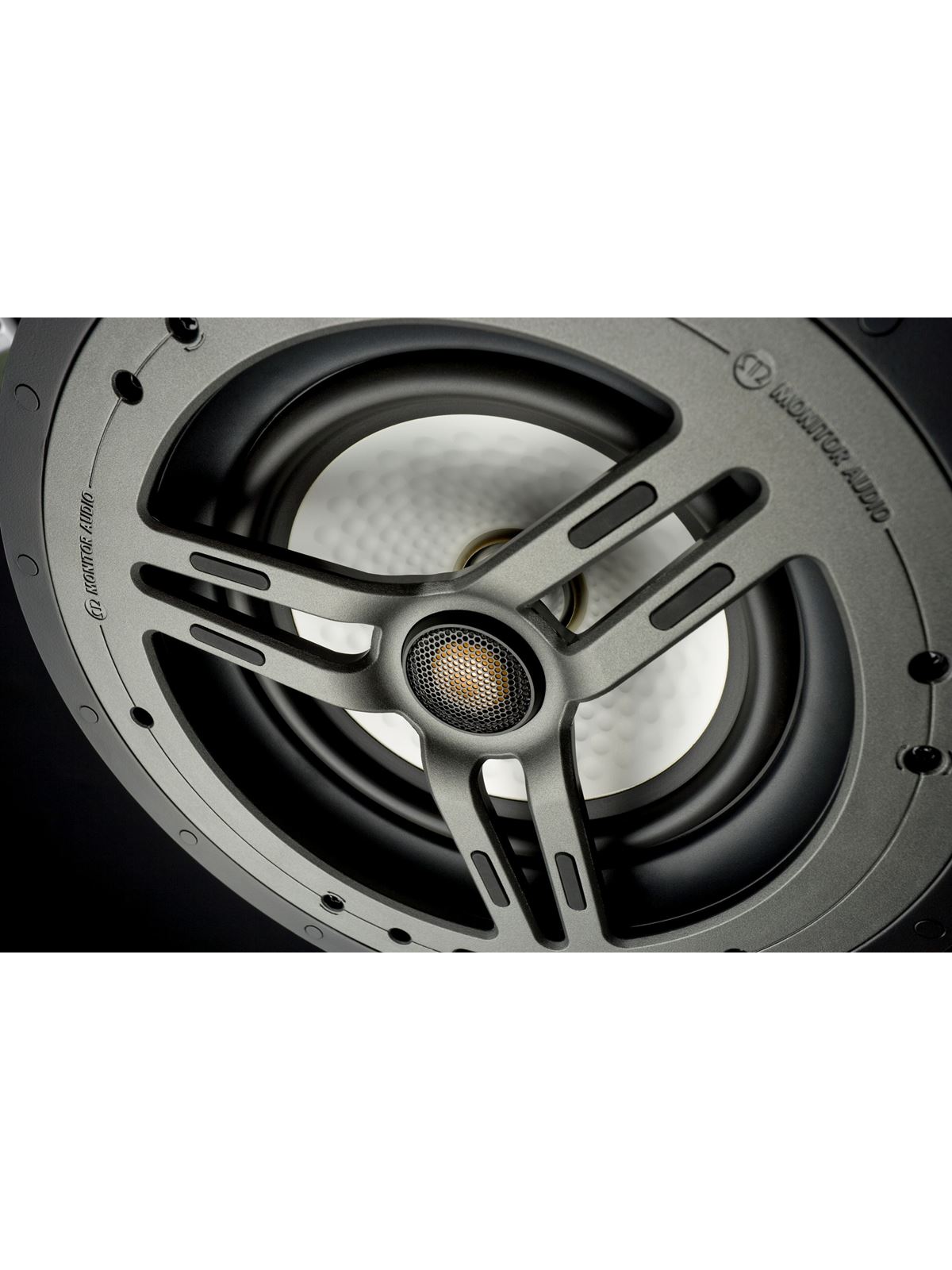

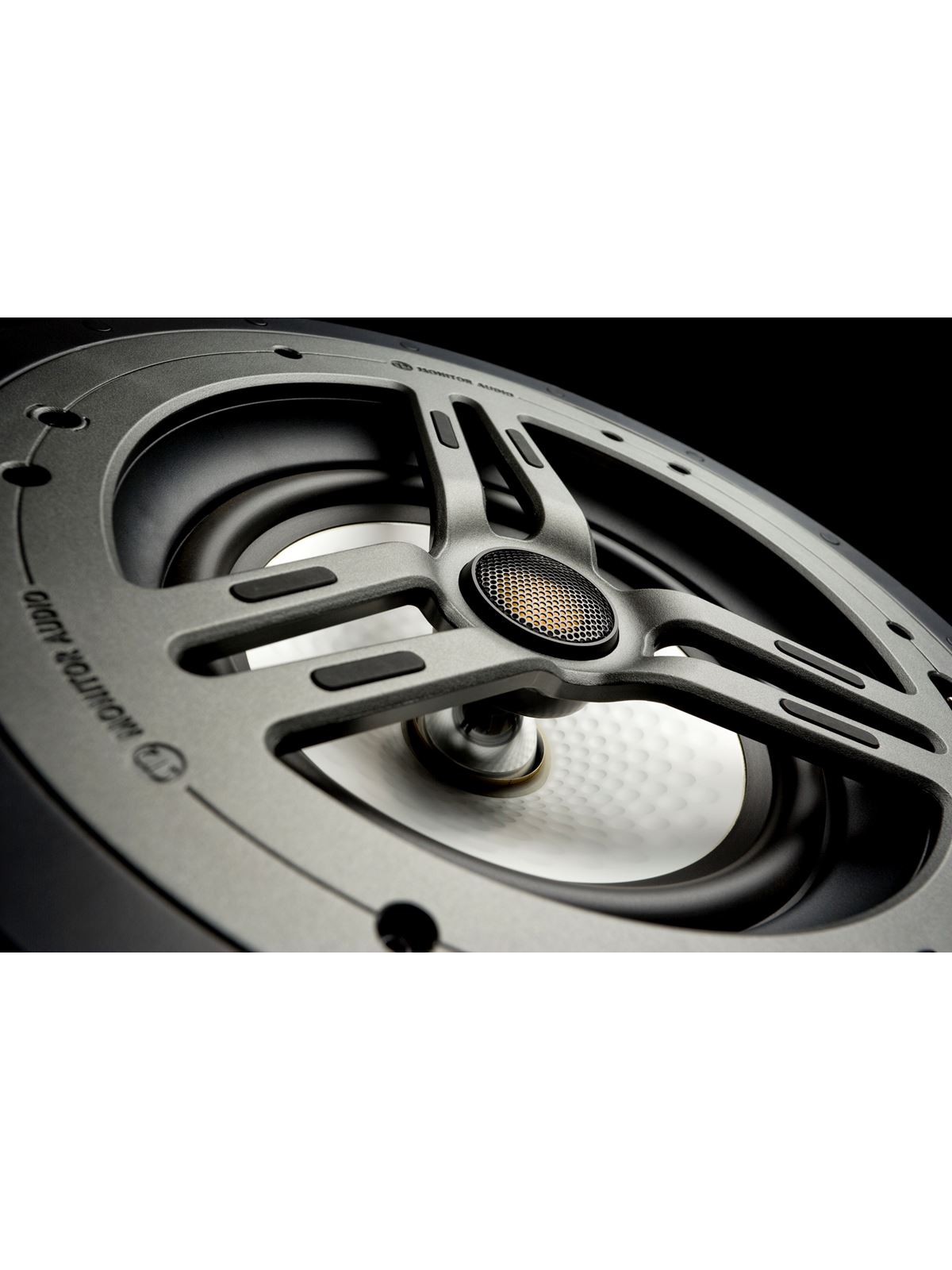

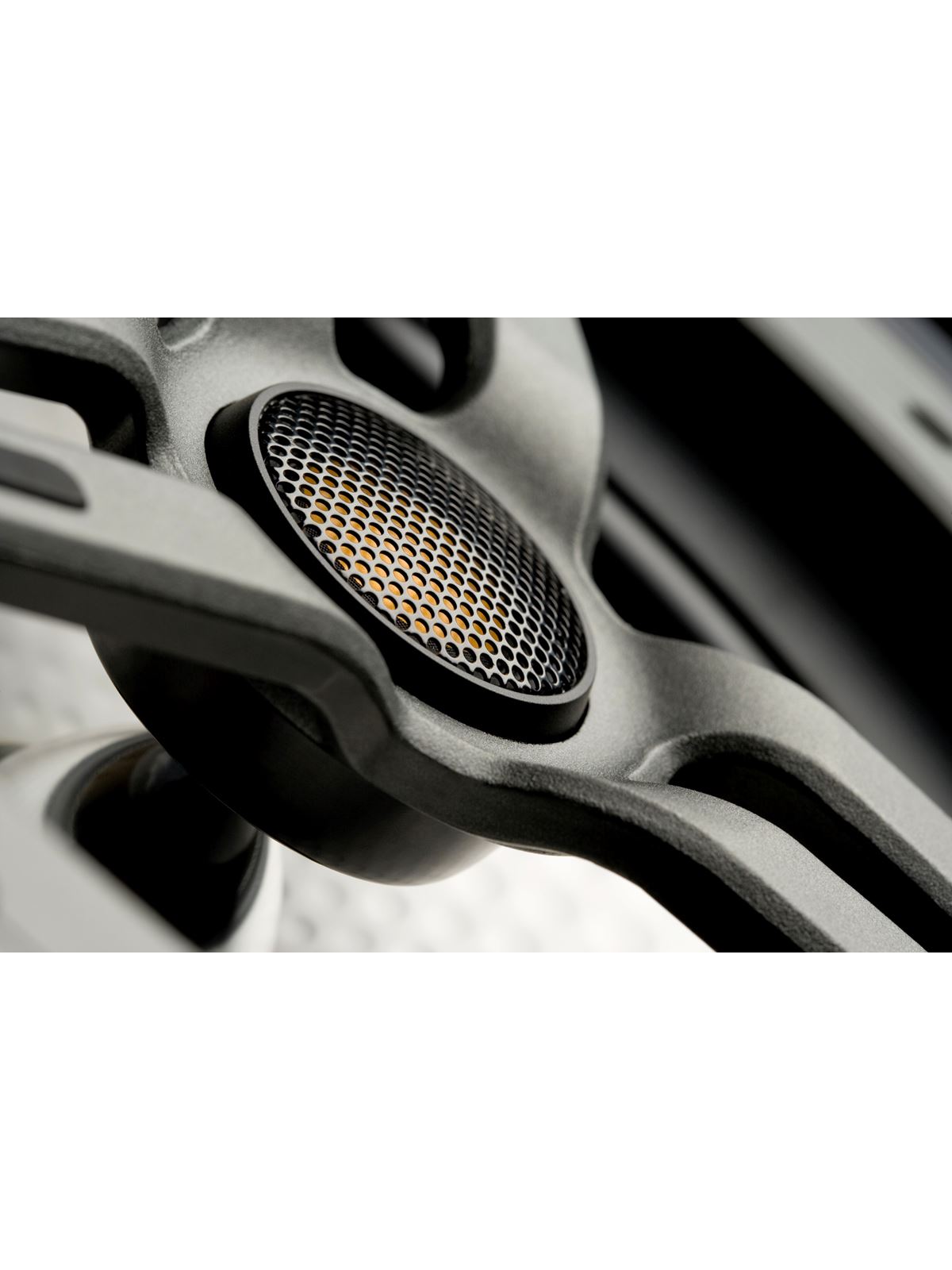

- Pivoting c-cam gold dome tweeter.
- c-cam bass driver featuring Rigid Surface
Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Boundary compensation controls.
- Our innovative Tri-Grip® fixing system is
easier to install than conventional clamping schemes but provides three
times the surface area and a better surface seal, maximising bass response
and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living
environment. Additional scrim material is provided for trouble free
painting.

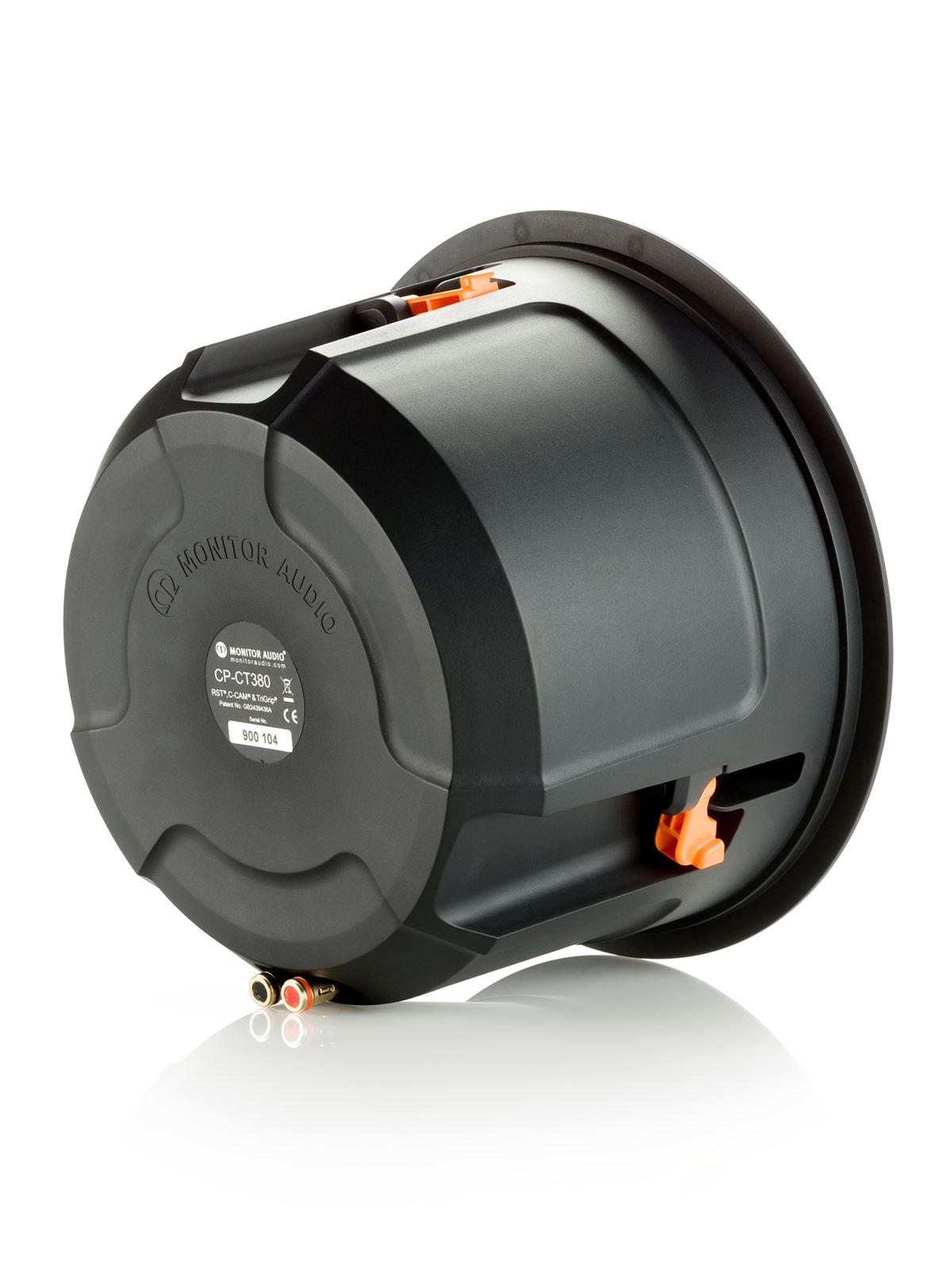

- Airtight enclosure design, which protects each
precision-engineered driver system against the damaging ingress of dust
and dirt.
Specification
Frequency Response: 50 Hz - 25 kHz
Power Handling (RMS): 125 W
Controls: HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch
Overall Diameter:(including grille): 309 mm (12 3/16 inches)
Pre-Construction Bracket: CB10 (Light Brown)
Cable Connection: Gold plated 'push' type terminals
Impedance (nominal): 6 Ohms
Recommended Amp Requirements: 30 - 120 W
Mounting Depth: 181mm (7 1/8 inches)
Grille Attachment: Magnetic
Sensitivity (1W@1M): 89 dB
Drivers Unit Complement: 2-way 8˝
c-cam® cone bass driver.
c-cam pivoting gold dome tweeter
Cut-out Diameter: 274mm (10 13/16 inches)
Construction Material: Mineral filled ABS Plastic,(RoHS compliant)
Maximum SPL: 109.6 dBA
Fixing Type: 3 position Tri-Grip® dog leg fixings
Crossover Frequency / Slope: 2.5 kHz @ 12 dB / Octave
Weight: 3.74kg (8lb 4oz)
