Description

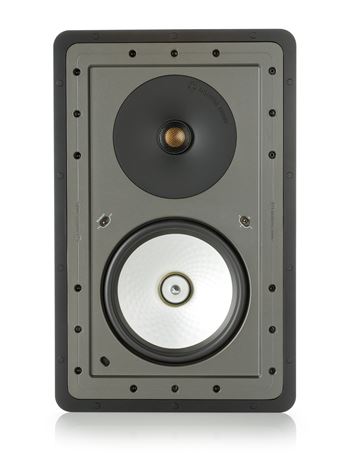

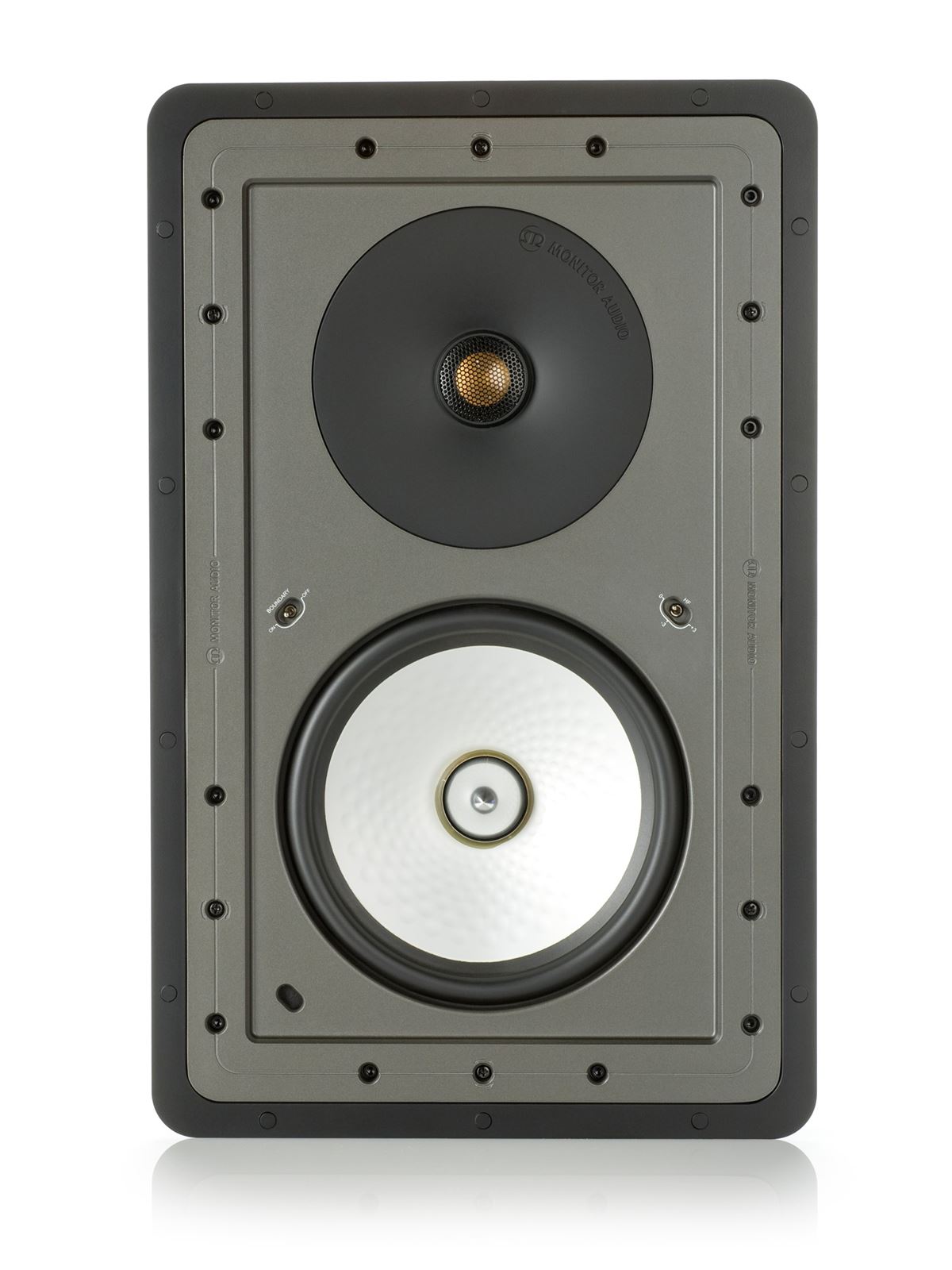

Alongside a pivoting
c-cam® tweeter, the CP-WT380 model introduces a powerful 8”
c-cam bass driver featuring the Rigid Surface Technology (RST®) cone surface employed by our range-topping home audio speaker systems.
Technology
- Pivoting c-cam gold dome tweeter.
- c-cam bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Boundary compensation controls.

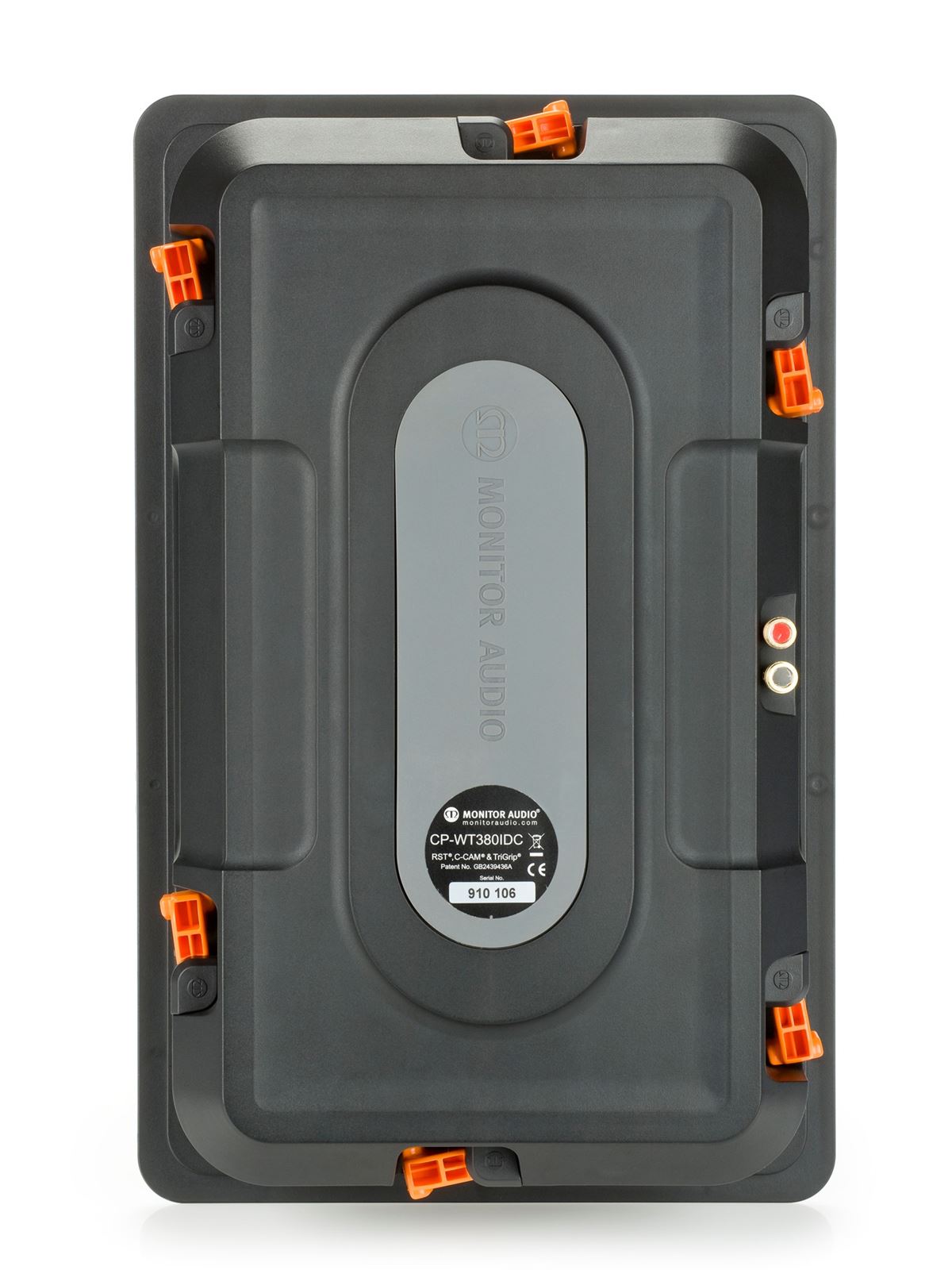

- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specification
Frequency Response: 50 Hz - 25 kHz
Power Handling (RMS): 120 W
Controls: HF Level Switch (+3dB / 0dB / -3dB)
Mounting Depth: 99 mm (3 7/8 inches)
Boundary Compensation Switch
Overall Dimensions:(including grille) (H x W): 472.5 x 303.5 mm (18 5/8 x 11 15/16 inches)
Pre-Construction Bracket: WB10 (Light Brown)
Impedance (nominal): 6 Ohms
Recommended Amp Requirements: 30 - 120 W
Overall Depth:(including grille): 106 mm (4 3/16 inches)
Sensitivity: (1W@1M) 89 dB
Drivers Unit Complement: 2-way 8˝
c-cam® cone bass driver 1˝
c-cam pivoting gold dome tweeter
Cut Out Dimensions:(H x W): 438 x 269 mm (17 1/4 x 10 9/16 inches)
Construction Material: Mineral filled ABS Plastic,(RoHS compliant)
Maximum SPL: 109.6 dBA
Fixing Type: 6 position Tri-Grip® dog leg fixings
Crossover Frequency: / Slope 2.5 kHz @ 12 dB / Octave
Weight: 4.95kg (10lb 14oz)
