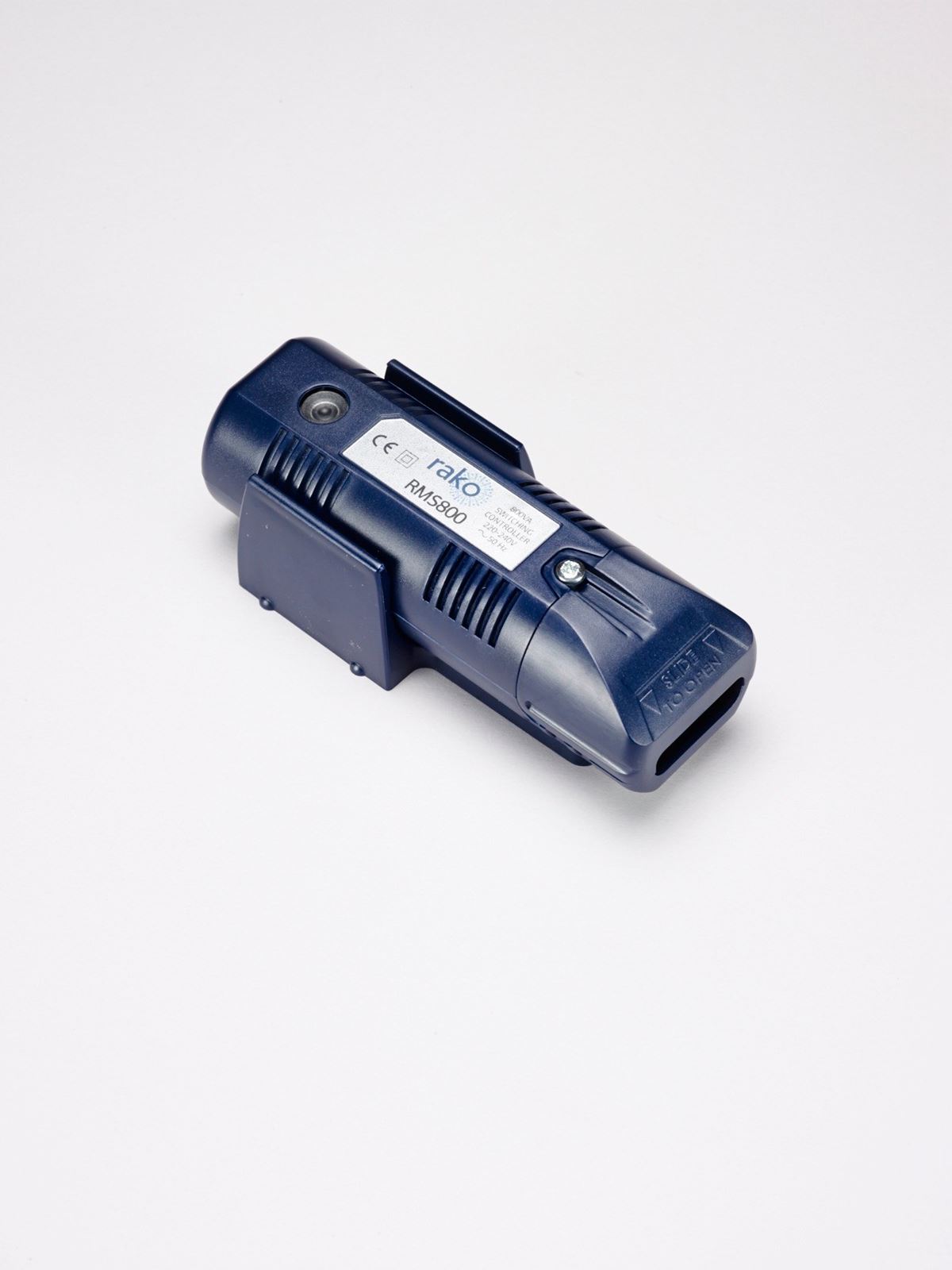

Rako Wireless 800W in-line RF switch module for non dimmable loads - RMS-800

The RMS800 in-line RF switch module for non dimmable loads
Connected in-line before the first lighting fitting the RMS800 enables switching of up to 800VA of non-dimmable loads.
Ideal for extractor fans, LEDs, non-dimmable fluorescents.
Controlled from any Rako Rakom RF device, for example the RCP/RCM push button RF wall-plates.

• Designed to fit in a ceiling void or cupboard, the RMS800 module can control up to 800VA of mains non-dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.
• 16 Scene memory capacity, can be fully integrated into Rako wired systems.
• Easy set-up and manual On/Off control using the set-up button. F
• Full rising clamp terminals and mounting bracket for easy installation.
• Programmed using either an RCM/RCP RF wall-plate or RASOFT PC Software suite, the RMS800 stores the House, Room and Channel address plus 16 preset scene levels in a non-volatile memory
• The RMS800 can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand-helds and Bridge modules and forms the foundation of any Rako wireless scene-set system.

• 3 way screw terminals for mains SUPPLY power (LNE)
• 3 way screw terminals for mains LOAD power (LNE)

• Auto resetting over current protection
• Auto thermal shutdown
• Voltage surge protection
