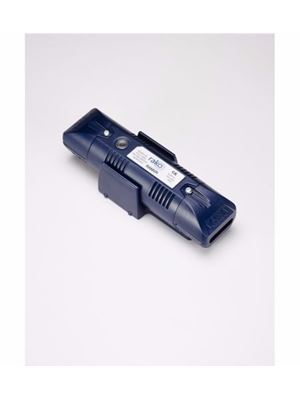

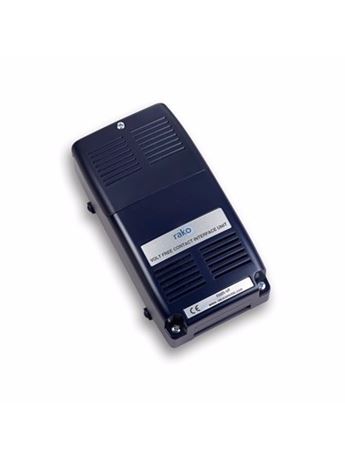

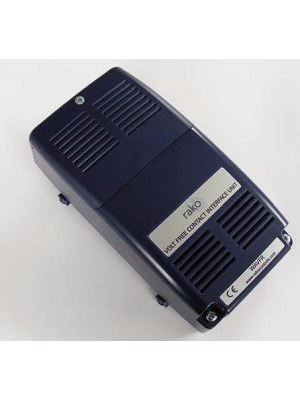

Rako Wireless interface for upto 10 Volt-Free Contact Closure inputs - RMR-VF

The RMR-VF accepts up to 10 volt-free inputs which can be used to trigger multiple scenes within a single room or separate commands in different rooms. Commands can be scenes, fades, levels or multiple actions depending on the duration of the contact closure.

The RMR-VF can be addressed manually to a single Rako Room and inputs will trigger basic scenes within that Room. Rasoft Pro is required (with a suitable programming interface e.g. RABridge) to map commands to different or multiple rooms and action advanced functions such as Level, Press and Hold and Trigger on Release.

Dimensions: 190x105x66mm

Input Supply: 9-12V DC from SELV power supply unit (included)

Weight: 340g

Housing: UL V0 ABS

Temperature: +2C to +40C

Humidity: +5% - 95% non condensing

Emissions: EN61000-6-3 : 2007

Immunity: EN61000-6-1 : 2007

LVD: EN 60950-1 :2006



Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
